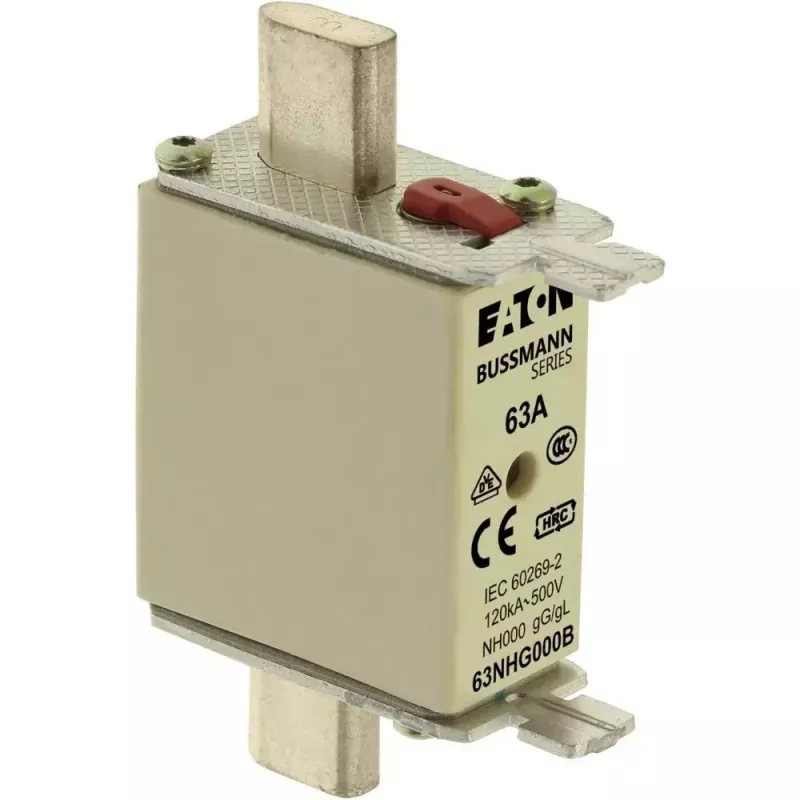

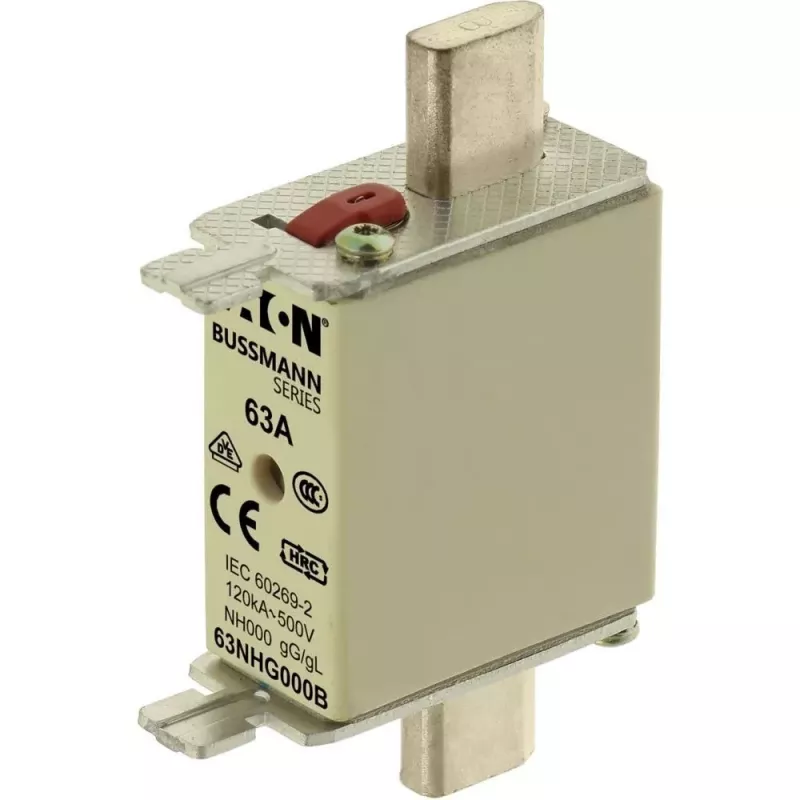

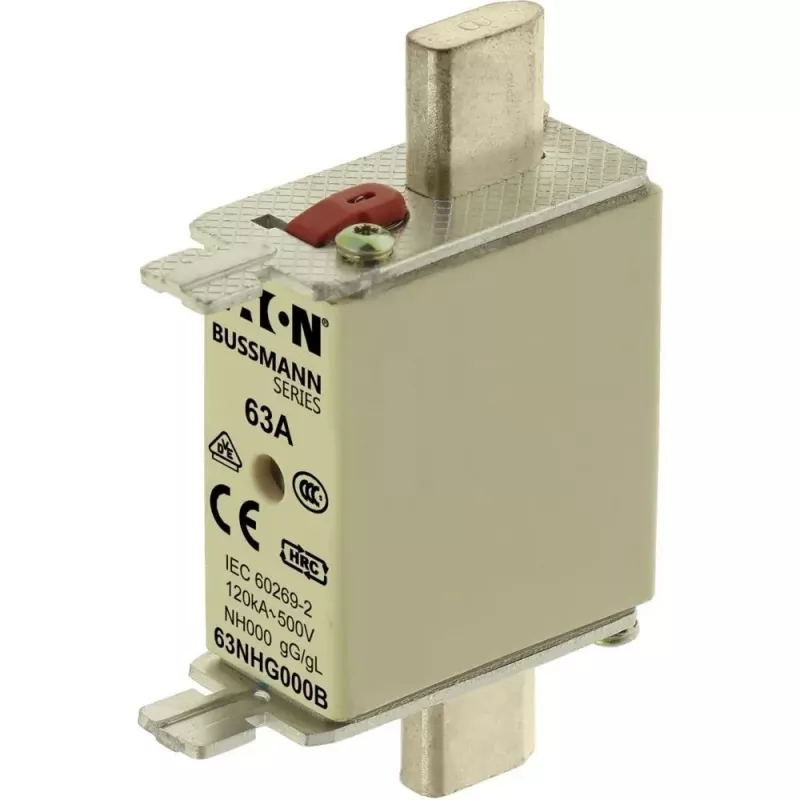

Eaton 63NHG000B NH poistková vložka, veľkosť 0, 63 A, 500 V AC, gG

NH fuse-link with blade contacts for industrial and commercial power distribution. This 63 A gG fuse offers reliable overload and short-circuit protection up to 500 V AC with a breaking capacity of 120 kA.

Advantages

High breaking capacity ensures safe interruption of fault currents. Ceramic body and silver-plated copper contacts provide durability and low contact resistance. Top indicator allows quick identification of a blown fuse.

Suitable for

• Industrial distribution boards
• Commercial electrical installations
• Cable and line protection

Key specifications

• Fuse type: NH fuse-link
• Size: NH0
• Rated current: 63 A
• Rated voltage: 500 V AC
• Operating class: gG (general purpose)
• Breaking capacity: 120 kA
• Mounting: blade contact
• Body material: ceramic

Recommendations

Use in NH0 fuse bases or switch-disconnectors. Ensure correct torque on contact screws. Replace with same type and rating.
