Eaton 9PX 1500RT UPS dvojitá konverzia 1,5 kVA 1350 W 8 AC výstupov

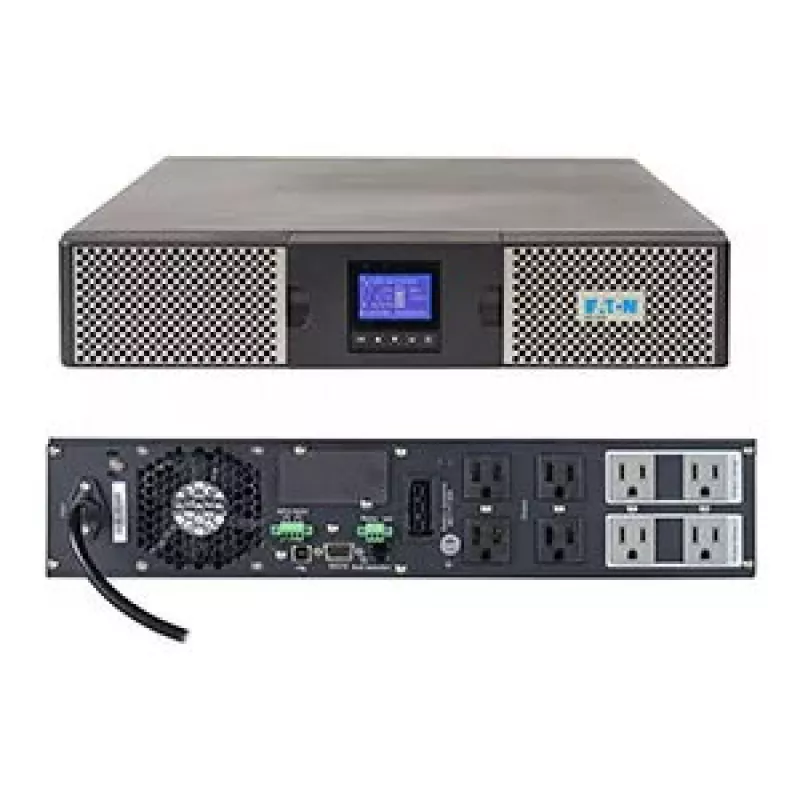

The Eaton 9PX 1500RT is a double-conversion online UPS delivering 1.5 kVA (1350 W) output for rack or tower installations. Designed for edge computing, IT racks and network closets, it provides continuous power conditioning and ENERGY STAR–qualified efficiency. The unit includes a sealed lead acid battery, an intuitive graphical LCD for local configuration and diagnostics, and support for scalable deployments in virtualized and mission-critical environments.

Advantages

The 9PX uses double-conversion topology to provide constant, clean power and tolerance to harsh electrical environments. It offers compact rack/tower form factor with 8 AC outlets (NEMA 5-15R), USB connectivity and a graphical LCD for local monitoring and configuration. ENERGY STAR qualification and efficient operation reduce energy consumption while allowing integration with VM-centric management and disaster recovery workflows.

Suitable for

• Edge computing and network closets
• Rack-mounted IT equipment and small data closets
• Industrial automation and healthcare devices requiring clean power
• On-premises virtualized environments and small server rooms

Key specifications

• Brand: EATON
• Model: 9PX 1500RT (MPN: 9PX1500RT)
• Output power capacity: 1.5 kVA
• Output power: 1350 W
• AC outlets: 8 x NEMA 5-15R
• USB: 1 x USB 2.0 port
• Form factor: Rack/tower (RT)
• Battery type: Sealed lead acid
• Colour: Black
• Weight: 19.3 kg
• EAN: 743172081261

How to use

Install the Eaton 9PX 1500RT in a rack or place it as a tower on a stable surface, ensuring proper ventilation and ambient temperature per the manufacturer guidelines. Connect critical equipment to the 8 AC outlets and plug the UPS into a grounded mains supply. Use the graphical LCD to configure runtime settings, view diagnostics and monitor energy consumption. For virtualized environments, install optional management software and configure graceful shutdown settings for protected systems.

Recommendations

For best results, verify runtime requirements and, if needed, configure a 2N or N+1 topology with additional UPS units. Schedule periodic battery tests and follow Eaton service recommendations for maintenance and replacement to ensure business continuity of edge and critical IT equipment.
