Eaton A-PKZ0 230V 50Hz spúšťací člen pre PKZ0/PKE motorové ochranné spínače 199339

With a rated operating voltage of 230 V AC and a power consumption of just 10 VA, this shunt trip release delivers reliable remote tripping for Eaton PKZ0 and PKE motor protective circuit breakers.

Overview

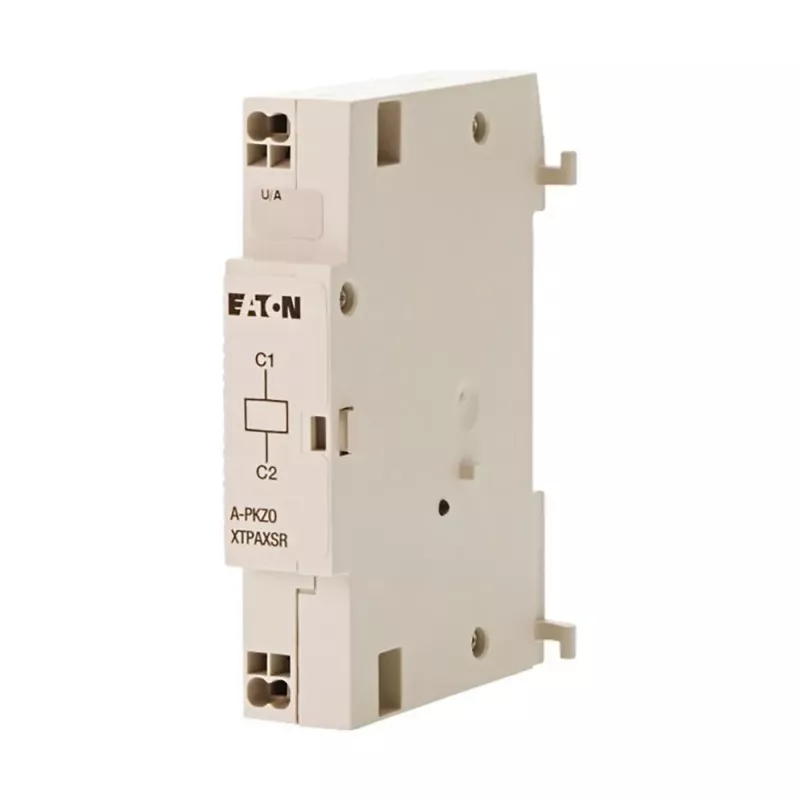

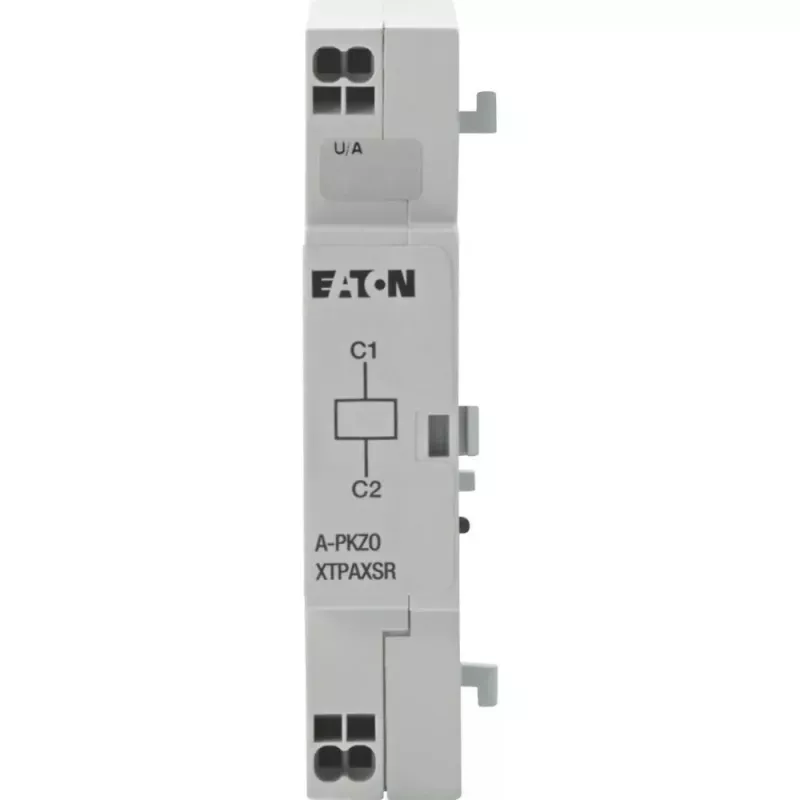

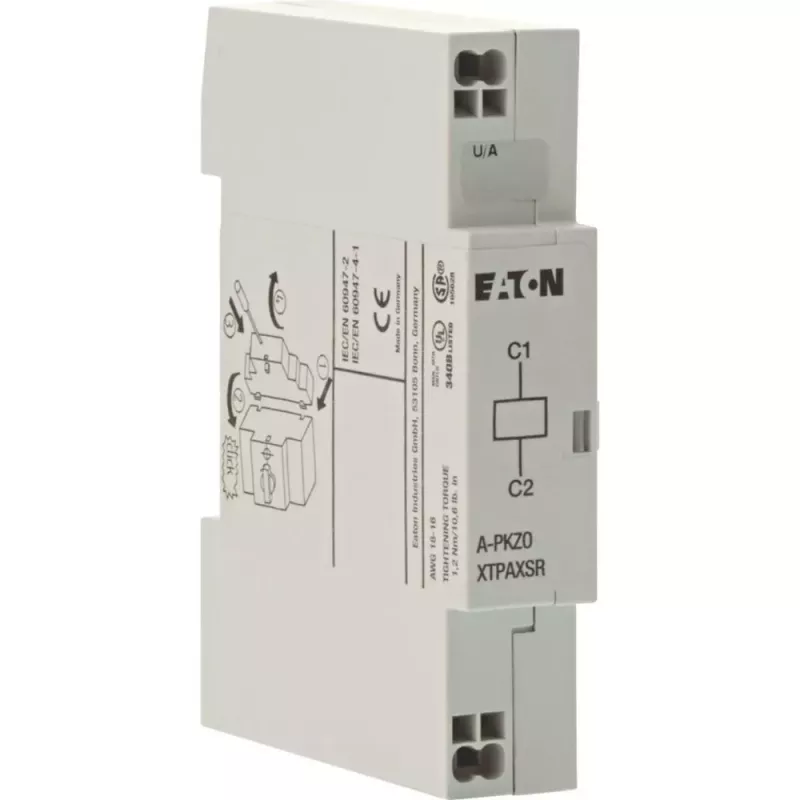

The Eaton A-PKZ0 shunt trip release is an electromagnetic accessory designed to remotely trip compatible Eaton motor protective circuit breakers. It mounts on the left or right side of the breaker, integrating seamlessly into your control system. The release operates at 230 V AC, 50 Hz, and is suitable for use with PKZ0, PKE, PKE-XTU, and PKE-XTUA series breakers.

What stands out

• Rated operating voltage: 230 V AC, 50 Hz
• Low power consumption: 10 VA
• Side mounting (left or right) for flexible installation
• Compatible with Eaton PKZ0 and PKE series motor protective circuit breakers

Technical details

• Product type: Shunt trip release
• Series: PKZ0 accessories
• Activation principle: Electromagnetically activated coil
• Rated frequency: 50 Hz
• Mounting position: Side (left or right)
• Degree of protection: IP20 (terminals)
• Operating temperature range: -25 to +55 °C
• Storage temperature range: -40 to +80 °C
• Terminal type: Screw terminals
• Wire cross-section (solid): 0.75 - 2.5 mm²
• Wire cross-section (stranded): 0.75 - 2.5 mm²
• Colour: Grey

Our verdict

A dependable remote tripping solution for Eaton motor protective circuit breakers, offering straightforward installation and reliable performance in industrial environments.
