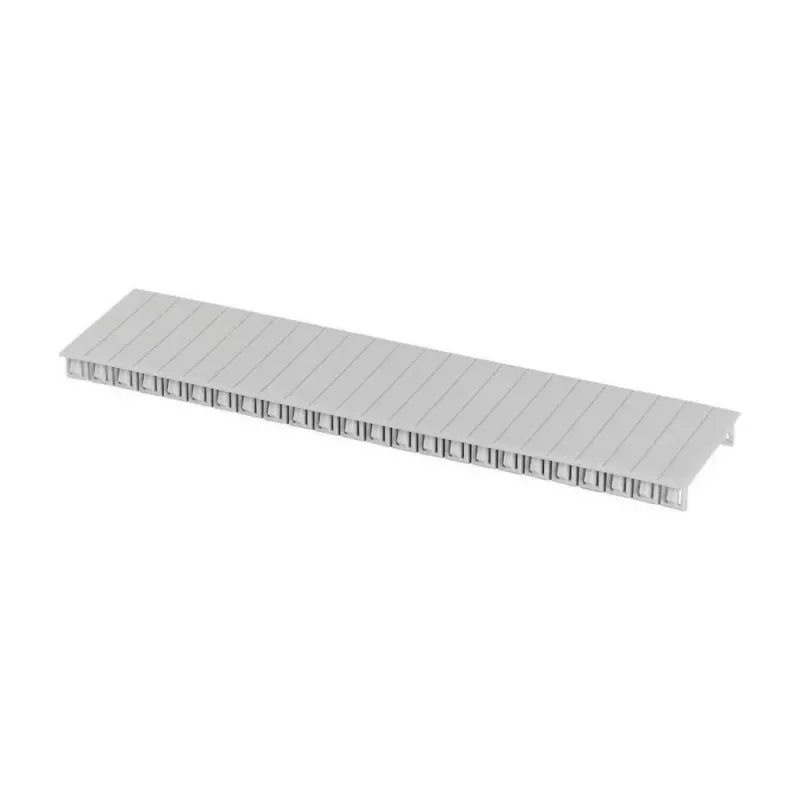

Eaton BS-12MB-GY slepý panel, 12 modulov, sivý, hrubo rebrovaná 178979

Unused DIN rail slots in distribution boards and consumer units can expose live parts, collect dust, and compromise the clean look of an installation. The Eaton BS-12MB-GY blanking plate closes a 12-module opening with a snap-on grey cover, keeping the enclosure tidy and reducing the risk of accidental contact.

Who is it for

Electricians and panel builders who need a quick, reliable way to cover empty spaces in standard DIN rail consumer units or distribution boards. It suits both new installations and retrofits where a circuit has been removed or reserved for future use.

Main features

• Covers 12 TE (module units) in one piece, matching standard DIN 43880 cutouts.
• Snap-on mounting without tools for fast installation.
• Coarse-ribbed grey surface blends with typical enclosure fronts.
• Made from halogen-free thermoplastic.

Specifications

• Product type: Blanking plate
• Number of modules: 12 TE
• Colour: Grey
• Surface finish: Coarse-ribbed
• Material: Thermoplastic
• Mounting type: Snap-on
• Nominal width: 216 mm
• Nominal height: 90 mm
• Nominal depth: 6 mm
• Halogen-free: Yes
• Operating temperature range: -25°C to +70°C
• Fire resistance: Self-extinguishing

Tips

Check the total empty module width before ordering: one BS-12MB-GY covers exactly 12 TE. For smaller gaps, Eaton offers blanking plates in other module counts.
