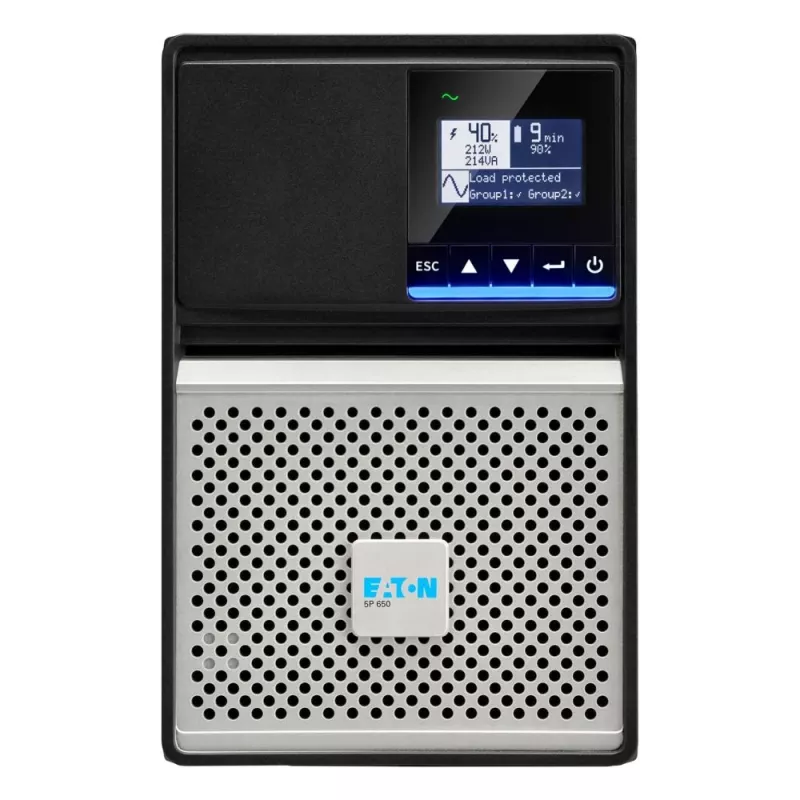

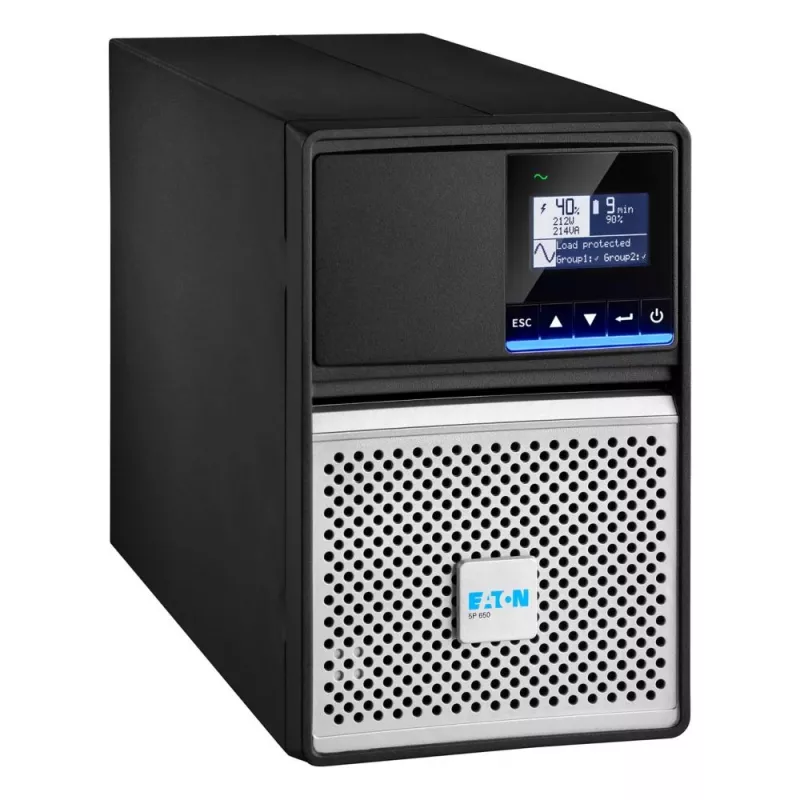

EATON CORPORATION Eaton UPS 5P Gen2 - 650VA, 520 W, vstup: C14, výstupy: (4) C13, tower

The Eaton 5P Gen2 UPS Line-Interactive 520 W with 8 AC outlets provides regulated backup power and voltage stabilization for small server rooms, network equipment, and critical workstations. Designed in a tower form factor with an LCD display, this UPS offers a true sine waveform output and lead-acid battery chemistry with a 9 Ah capacity. EMC and RoHS compliance ensure that the unit meets common safety and electromagnetic compatibility expectations while protecting connected electronics from outages, surges and voltage fluctuations.

Advantages

This line-interactive UPS supplies 520 W of output power and delivers a true sine waveform suitable for sensitive electronics. The integrated LCD display gives clear status and runtime information for straightforward monitoring. With eight AC outlets the unit supports multiple devices simultaneously, and lead-acid battery technology with 9 Ah capacity provides reliable short-term backup power. The compact tower form factor and a two-tone black and silver finish allow flexible placement in office or technical environments.

Suitable for

• Small business servers and network switches
• Workstations and desktop PCs requiring clean power
• VoIP and telecommunications equipment
• Peripheral devices such as NAS, routers and external drives

Key specifications

• Output power: 520 W
• Topology: Line-Interactive
• Output waveform: True sine wave
• Battery type: Lead-acid
• Battery capacity: 9 Ah
• AC outlets: 8
• Form factor: Tower
• Display: LCD for status and runtime
• Weight: 7.9 kg
• Color: Black and silver

How to use

Place the UPS on a stable, level surface with adequate ventilation and connect it to a grounded AC supply. Attach critical devices to the battery-backed AC outlets and non-critical devices to any surge-only outlets if present. Power the UPS on and review the LCD display to confirm input voltage, load level and estimated runtime. Perform a controlled shutdown of connected equipment during extended outages, using the UPS runtime to save work and close applications safely. Replace the internal battery according to runtime decline or the manufacturer’s guidance to maintain protection.

Recommendations

For reliable operation, avoid installing the UPS in direct sunlight, humid or dusty environments. Monitor the load so total connected power does not exceed 520 W, and schedule periodic self-tests and battery checks. Use the LCD and any available management software to review logs and perform graceful shutdowns when needed.
