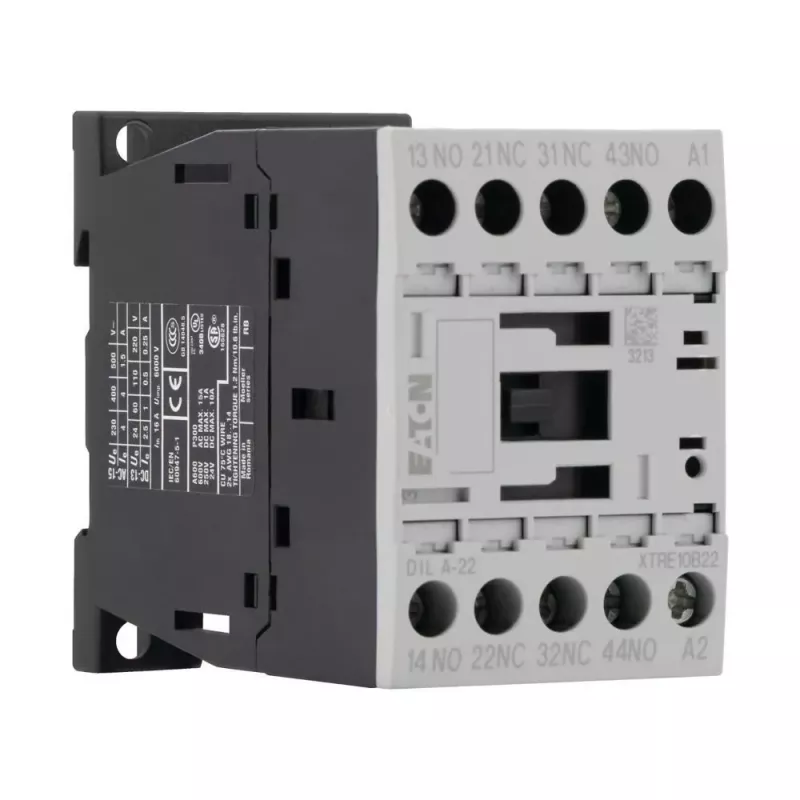

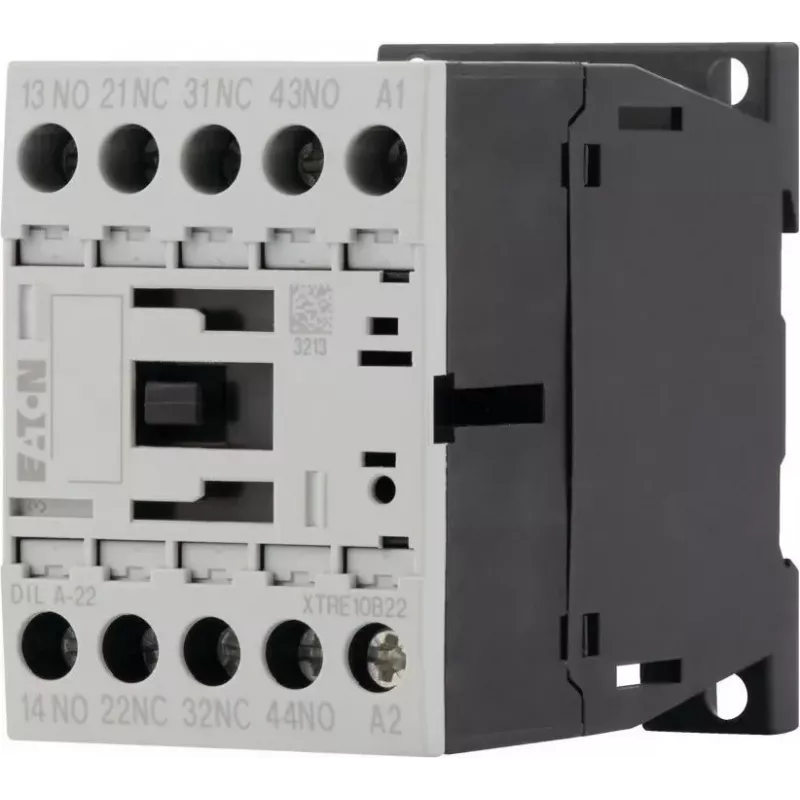

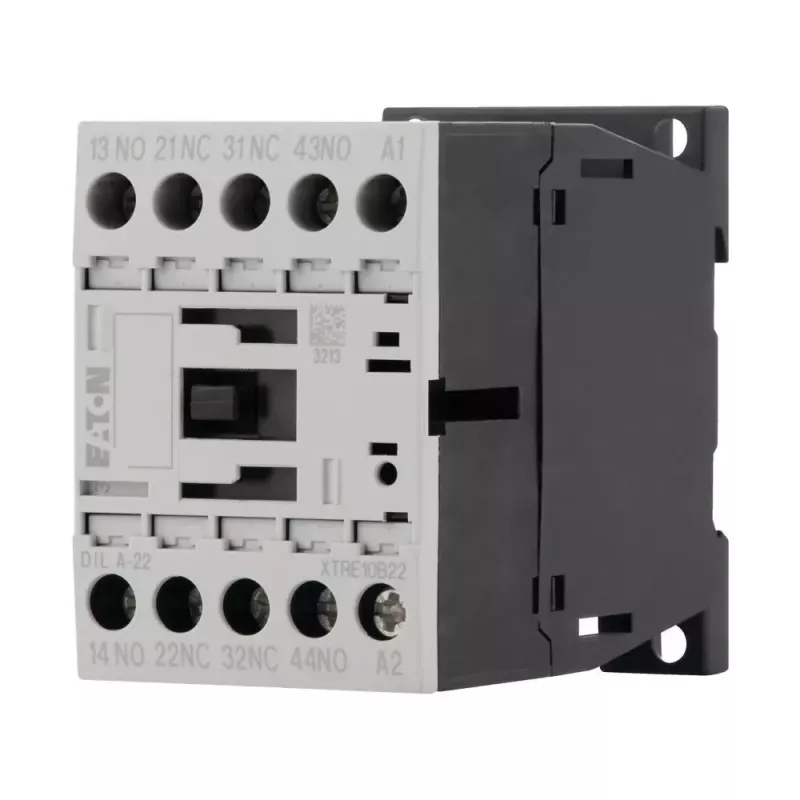

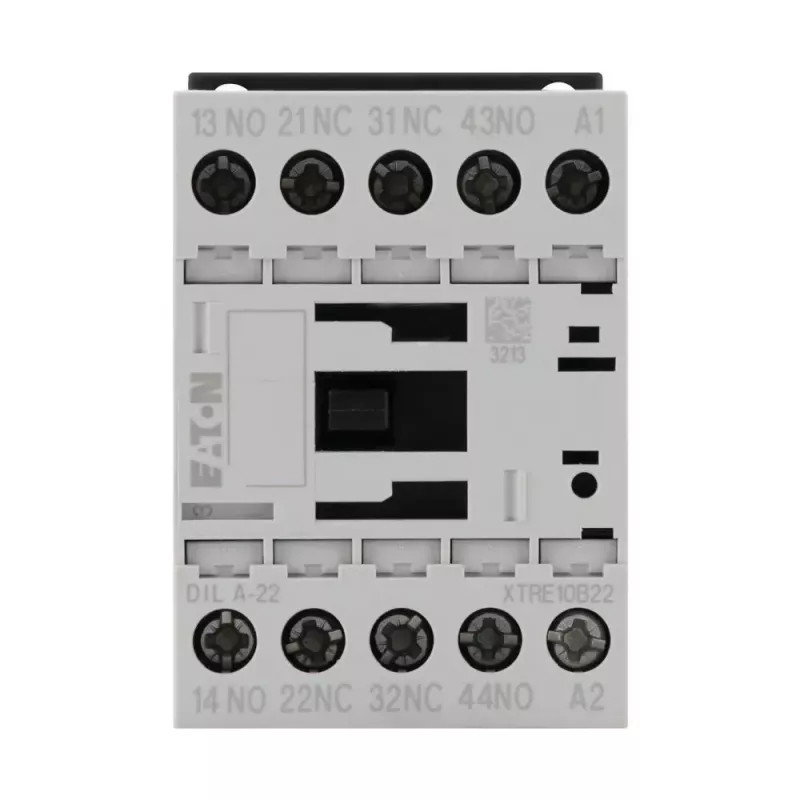

Eaton DILA-22 pomocný stýkač 24 V DC 2NO+2NC skrutkové svorky 1,6 kW

Auxiliary contactor with 2 normally open and 2 normally closed contacts, rated for 1.6 kW, featuring screw terminals and a 24 V DC coil. Its compact design and high mechanical durability make it suitable for frequent switching in control circuits.

Advantages

High mechanical life of over 20 million operations and electrical life exceeding 10 million operations in AC-15 duty ensure long-term reliability. Screw terminals provide secure connections for industrial wiring. The contactor operates across a wide temperature range from -25 to +60 °C, making it suitable for demanding environments.

Suitable for

• Control circuit switching in industrial automation
• Interposing relay applications
• Motor control auxiliary circuits
• PLC output isolation

Key specifications

• Contact configuration: 2 NO + 2 NC
• Coil voltage: 24 V DC
• Rated operational current AC-15 (230 V): 4 A
• Rated operational current DC-13 (24 V): 1 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Degree of protection: IP20

Recommendations

For applications requiring reliable auxiliary contact switching with a 24 V DC coil, this contactor offers a proven solution. Ensure proper wiring torque on screw terminals to maintain connection integrity.
