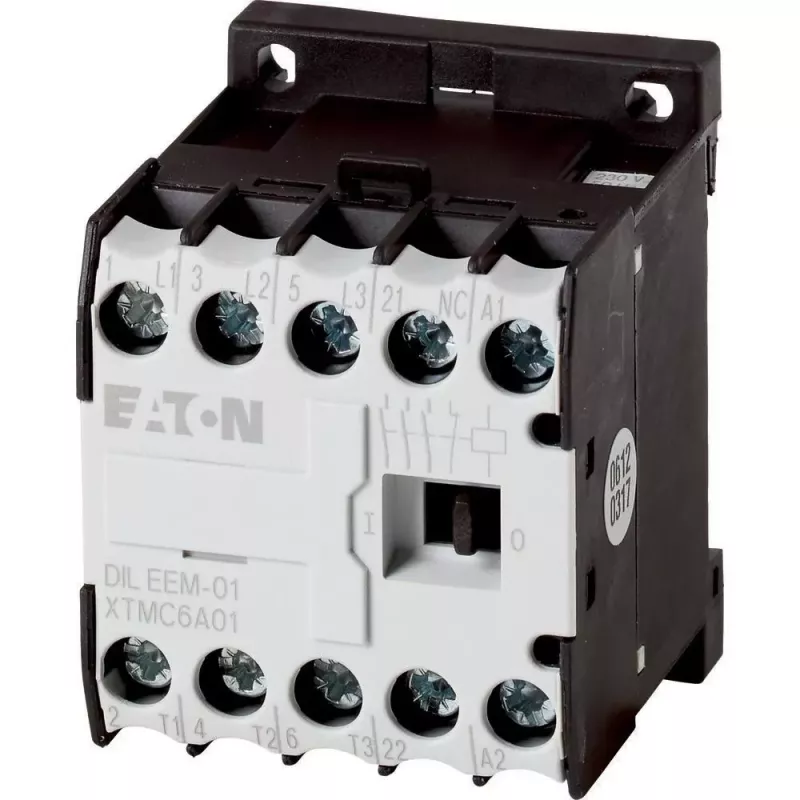

Eaton DILEEM-01 mini stýkač 3-pólový 230V AC 6,6A IP20 058771

Mini contactor for switching three-phase loads up to 3 kW at 400 V AC. The DILEEM-01 combines a 230 V AC coil with one normally closed auxiliary contact in a compact 45 mm housing.

Advantages

Rated impulse withstand voltage of 6 kV and insulation voltage of 690 V ensure reliable operation in industrial control circuits. Screw terminals and DIN rail or screw mounting simplify installation.

Suitable for

• Motor control in conveyors, pumps and fans
• Heating and lighting load switching
• Control panel builders needing a space-saving contactor

Key specifications

• 3 main poles, 1 NC auxiliary contact
• Coil: 230 V AC, 50/60 Hz
• Rated operational current (AC-3, 400 V): 6.6 A
• Rated operational power (AC-3, 400 V): 3 kW
• Degree of protection: IP20
• Dimensions: 45 mm width, 52 mm height, 58 mm depth
• Mechanical durability: 10 x 10^6 cycles
• Electrical durability (AC-3): 1.5 x 10^6 cycles

Recommendations

Select an appropriate overload relay for motor protection. Ensure coil voltage matches the control circuit.
