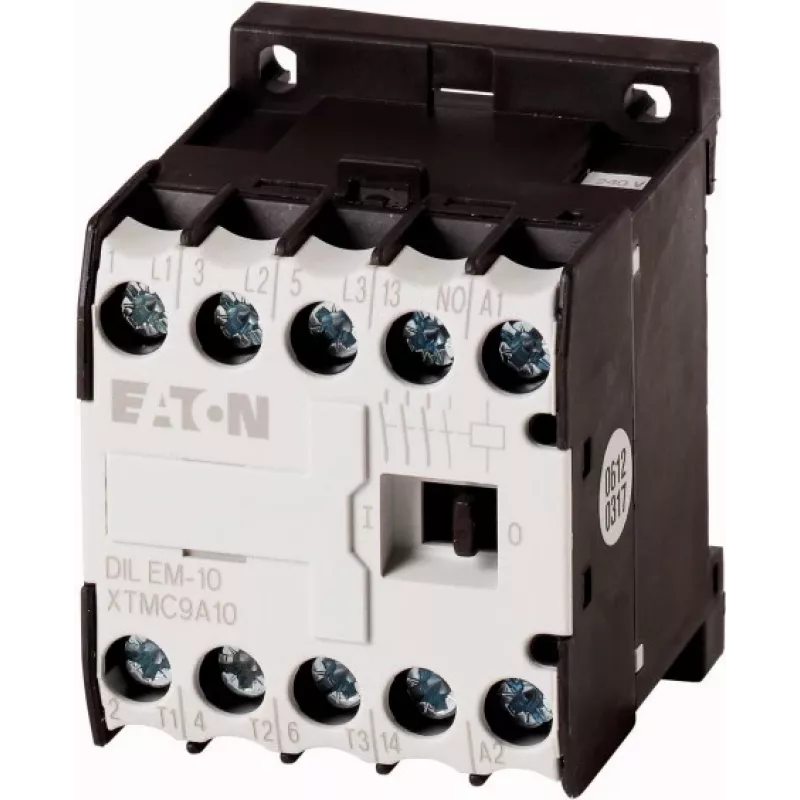

Eaton DILEM-10 mini stýkač 3-pólový 9A cievka 400V AC 051788

The Eaton DILEM-10 mini contactor is a compact 3-pole switching device engineered for reliable motor control in industrial applications. Its strongest capability is switching motors up to 4 kW at 400 V AC-3, making it a dependable choice for automation systems.

Advantages

This contactor features a 400 V AC coil at 50 Hz (440 V AC at 60 Hz) and one normally open auxiliary contact, providing flexible control options. With screw terminals and DIN rail or screw mounting, installation is straightforward. The device operates within a temperature range of -25 to 50 °C and meets IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, and CE standards.

Suitable for

• Motor starting and stopping in industrial control panels
• Heating, ventilation, and air conditioning systems
• Pump and fan control circuits
• General-purpose switching of three-phase loads up to 9 A

Key specifications

• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Control circuit voltage: 400 V AC (50 Hz), 440 V AC (60 Hz)
• Number of main poles: 3
• Auxiliary contacts: 1 normally open
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mechanical durability: 10 x 10^6 operations
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Operating temperature: -25 to 50 °C

Recommendations

For reliable motor switching in compact spaces, the Eaton DILEM-10 offers proven performance and compliance with international standards.
