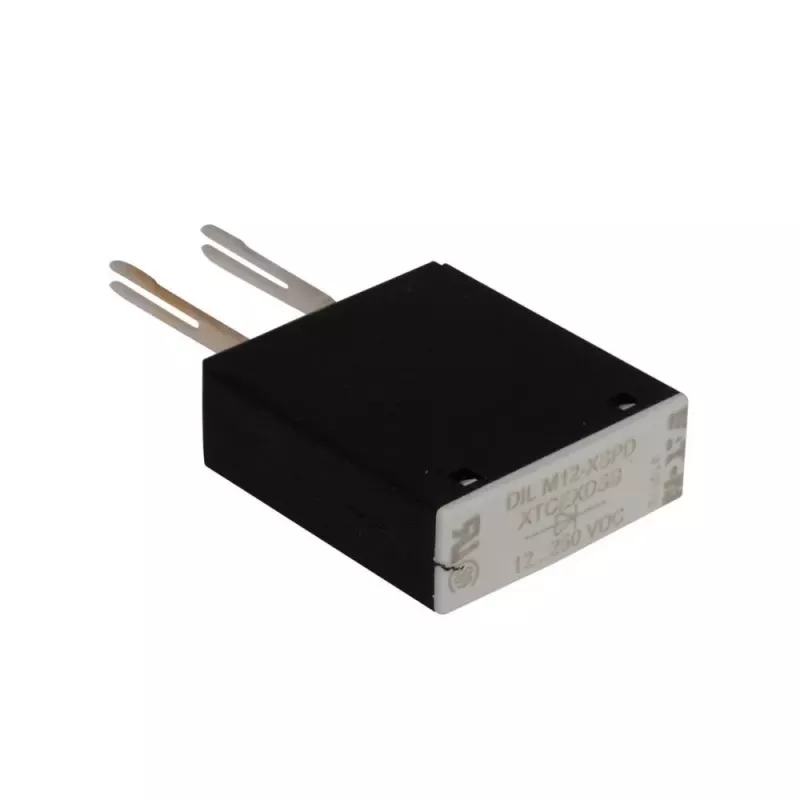

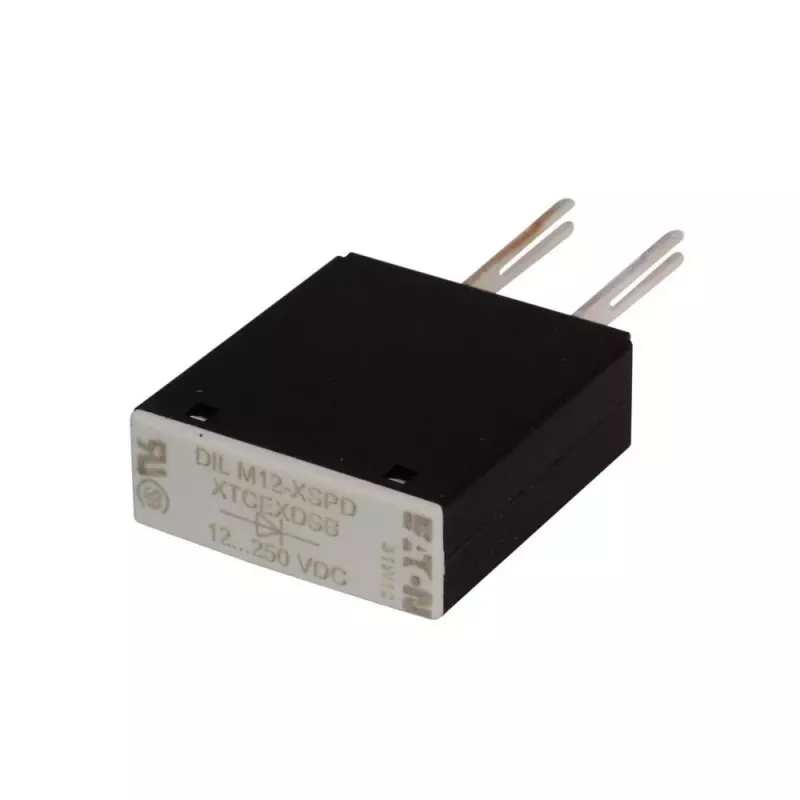

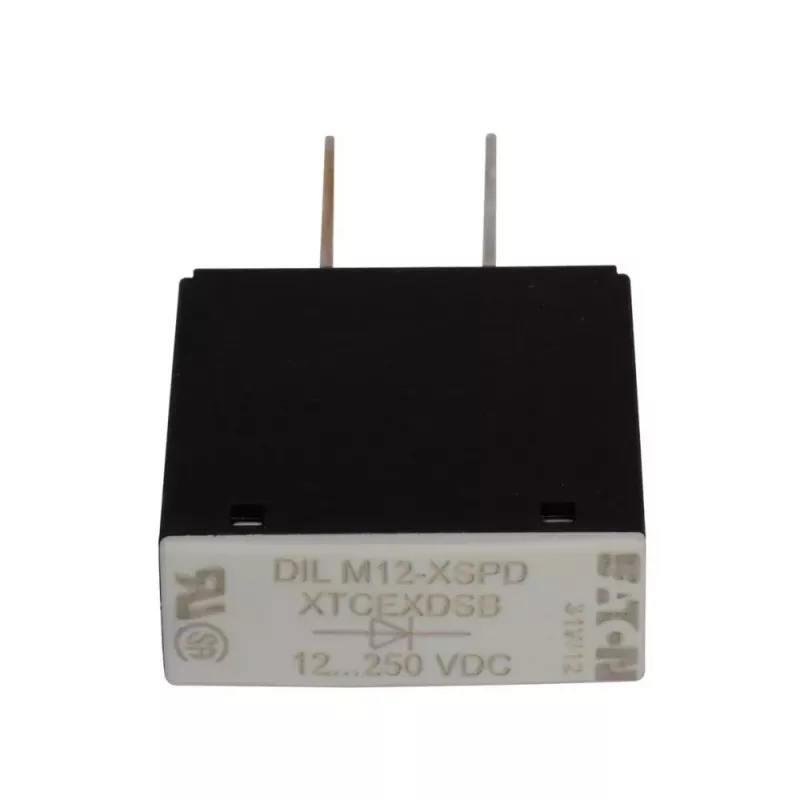

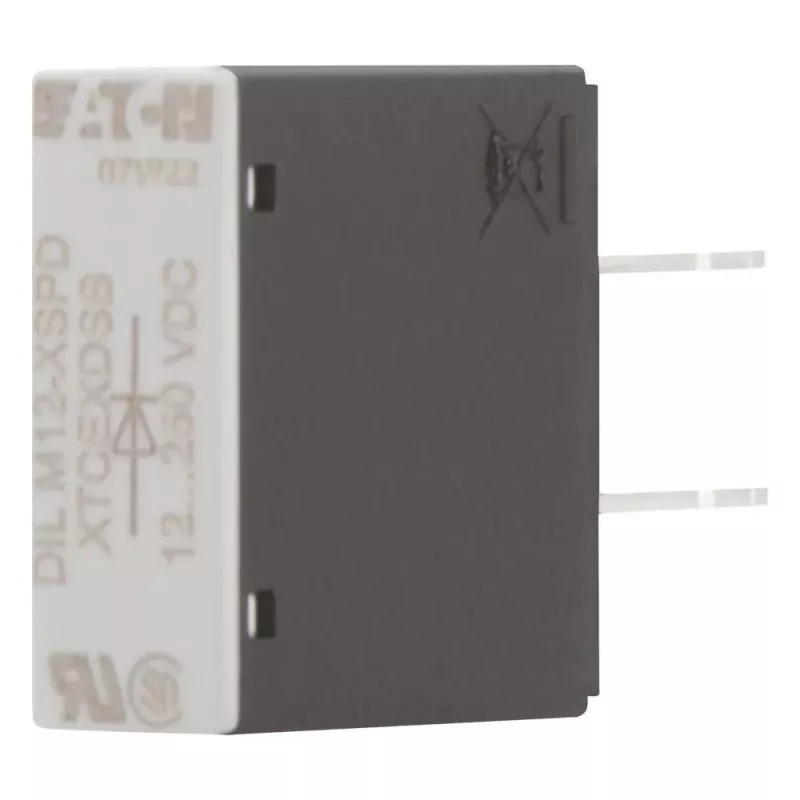

Eaton DILM12-XSPD pomocný kontakt 2NO+2NC čelná montáž skrutkové svorky 101672

With a contact configuration of 2 normally open and 2 normally closed, the Eaton DILM12-XSPD auxiliary contact expands the control capabilities of compatible contactors. It mounts directly on the front of DILM7, DILM9, DILM12, DILM15, DILM17, DILM25, DILM32, and DILM38 contactors.

Overview

This 4-pole auxiliary contact is designed for use with Eaton DILM series contactors. It features screw terminals and a silver alloy contact material, ensuring reliable switching performance. The unit is rated for operational currents up to 4 A at 230 V AC-15 and 3 A at 400 V AC-15, with a DC-13 rating of 0.15 A at 220 V. The rated insulation voltage is 690 V AC and the rated impulse withstand voltage is 6 kV.

What stands out

• Front mounting for easy installation on compatible contactors
• 2 NO + 2 NC contacts provide versatile control options
• Screw terminals accept solid or flexible conductors from 0.75 to 2.5 mm²
• Electrical life exceeds 10 million operations
• Operating temperature range from -25 to +60 °C

Technical details

• Contact configuration: 2 NO + 2 NC
• Mounting: Front mounting
• Compatibility: DILM7, DILM9, DILM12, DILM15, DILM17, DILM25, DILM32, DILM38
• Terminal type: Screw terminals
• Rated operational current AC-15 230V: 4 A
• Rated operational current AC-15 400V: 3 A
• Rated operational current DC-13 220V: 0.15 A
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Connection capacity: 0.75 - 2.5 mm² (solid and flexible)
• Contact material: Silver alloy

Our verdict

A reliable auxiliary contact for Eaton DILM contactors, offering four poles and high electrical endurance for demanding control circuits.
