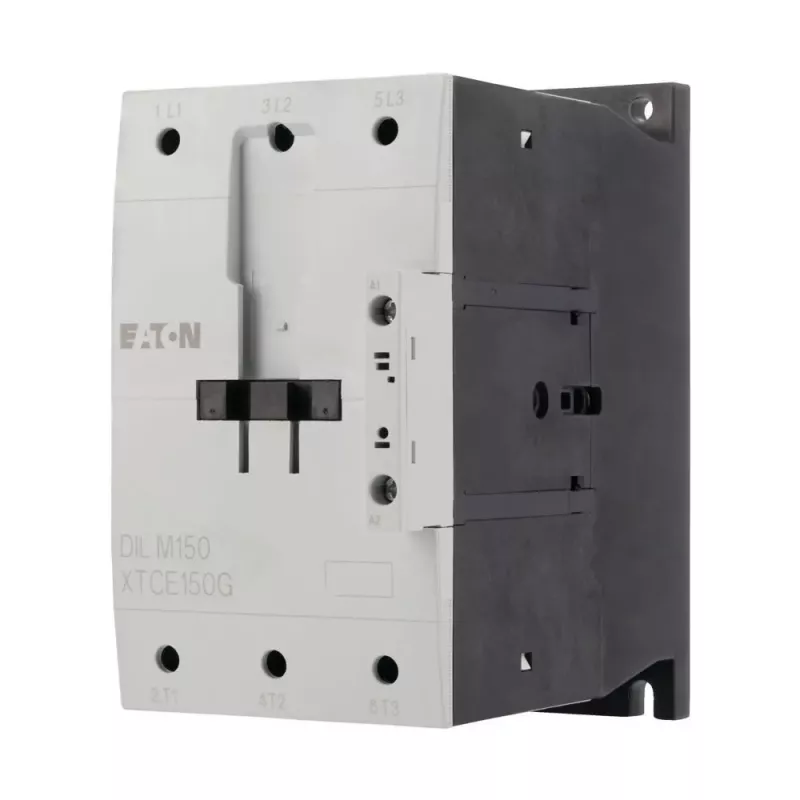

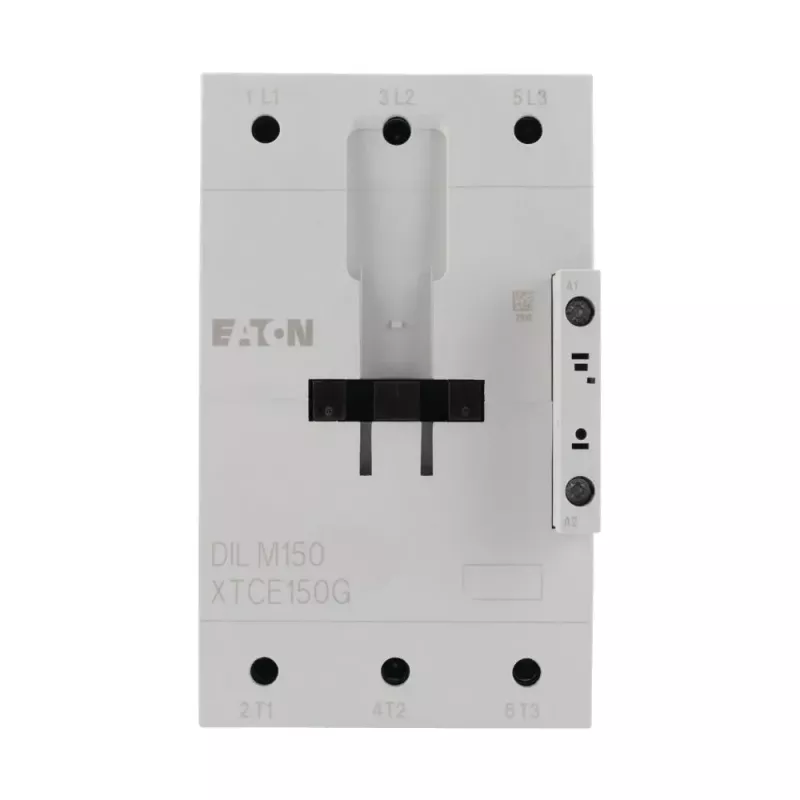

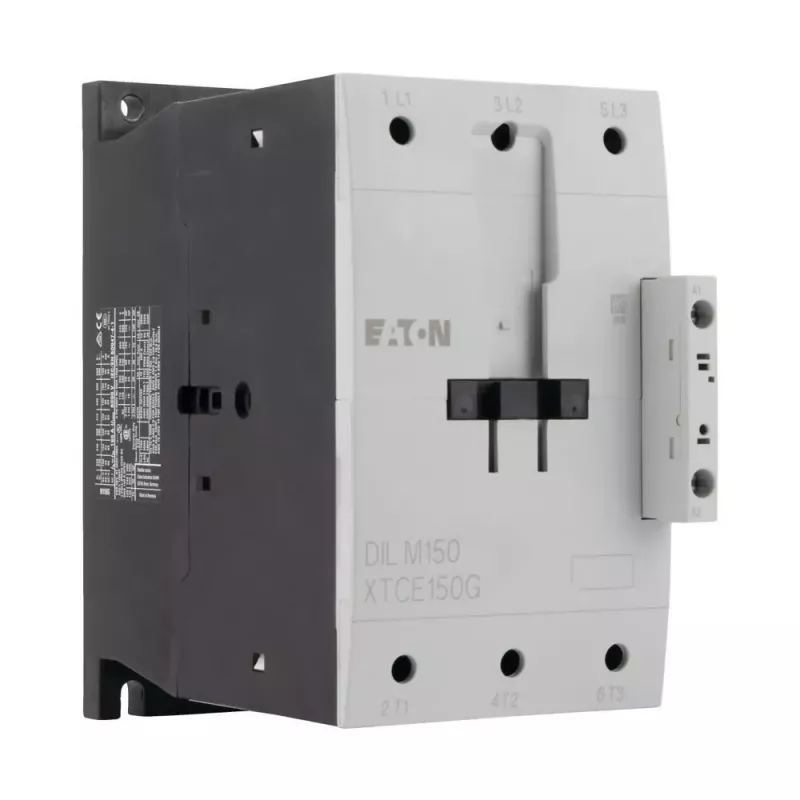

Eaton DILM150(RDC24) stýkač - 3-pólový, 150 A, cievka 24 V DC, IP00, skrutkovacie svorky 239591

Handle 150 A loads with the Eaton DILM150(RDC24) contactor, engineered for reliable switching in demanding industrial environments. Its 3-pole design and 24 V DC coil provide robust control for motors up to 75 kW at 400 V AC-3.

Overview

The Eaton DILM150(RDC24) is a high-performance contactor from the DILM series, built to manage heavy electrical loads with precision. With a rated operational current of 150 A and a rated operational power of 75 kW at 400 V AC-3, it is suitable for motor starting and switching applications. The contactor features screw terminals for both main and control circuits, ensuring secure connections. It includes one normally open (NO) and one normally closed (NC) auxiliary contact for signaling or interlocking. The unit is rated IP00, intended for installation in protected enclosures.

What stands out

• High switching capacity: 150 A (AC-3, 400 V)
• Wide voltage compatibility: rated insulation voltage 690 V
• Robust coil: 24 V DC operation
• Integrated auxiliary contacts: 1 NO + 1 NC
• Durable construction: screw terminals, screw mounting

Technical details

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 150 A
• Rated operational power (AC-3, 400 V): 75 kW
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 NO + 1 NC
• Degree of protection: IP00
• Main circuit connection: Screw terminals
• Control circuit connection: Screw terminals
• Mounting: Screw mounting
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 8000 V
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Series: DILM

Our verdict

A reliable and powerful contactor for industrial motor control, offering high current capacity and robust construction in a compact form factor.
