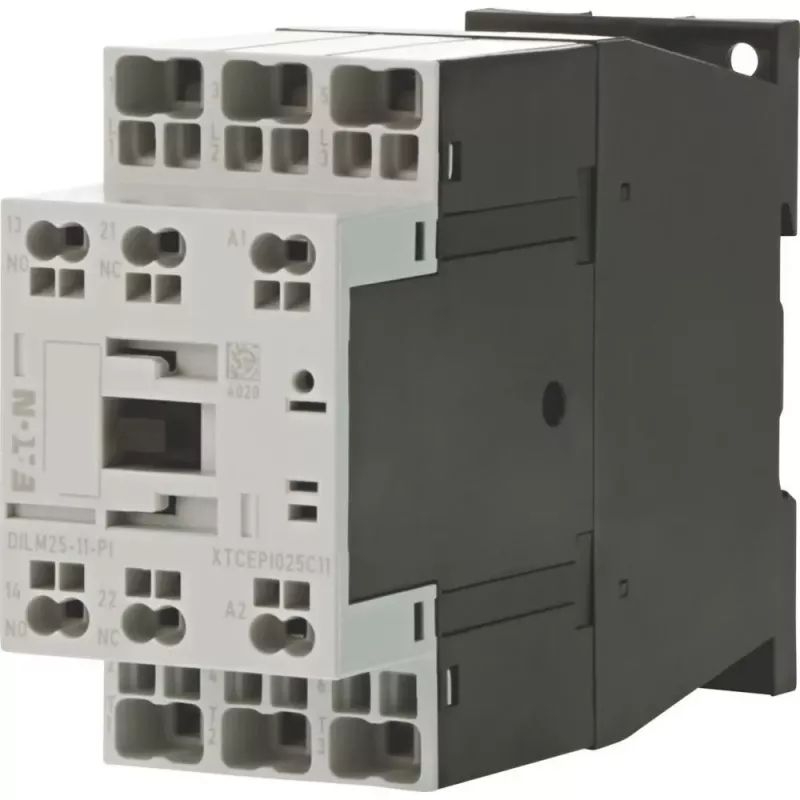

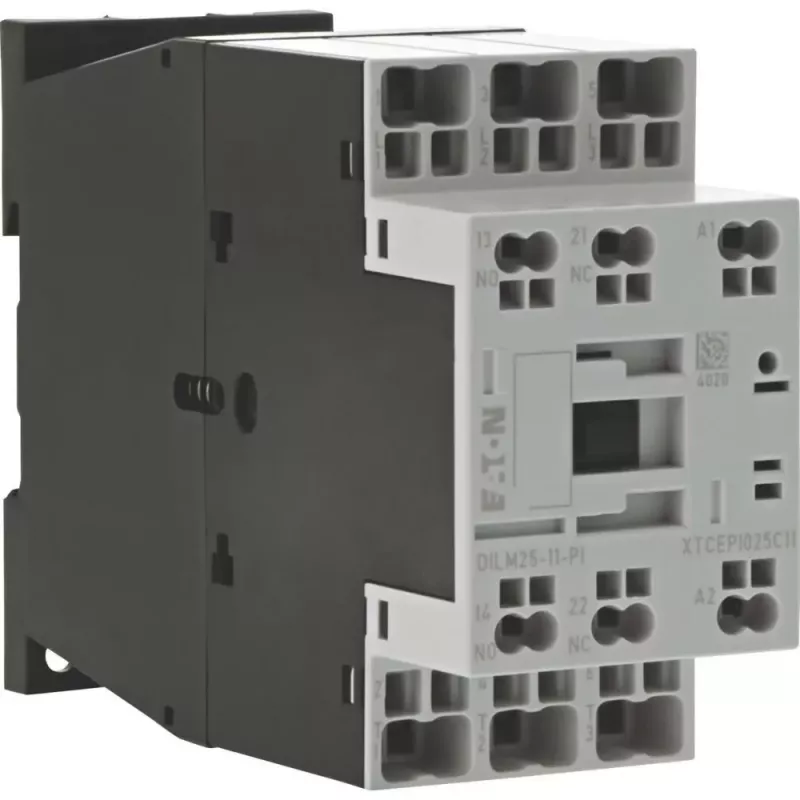

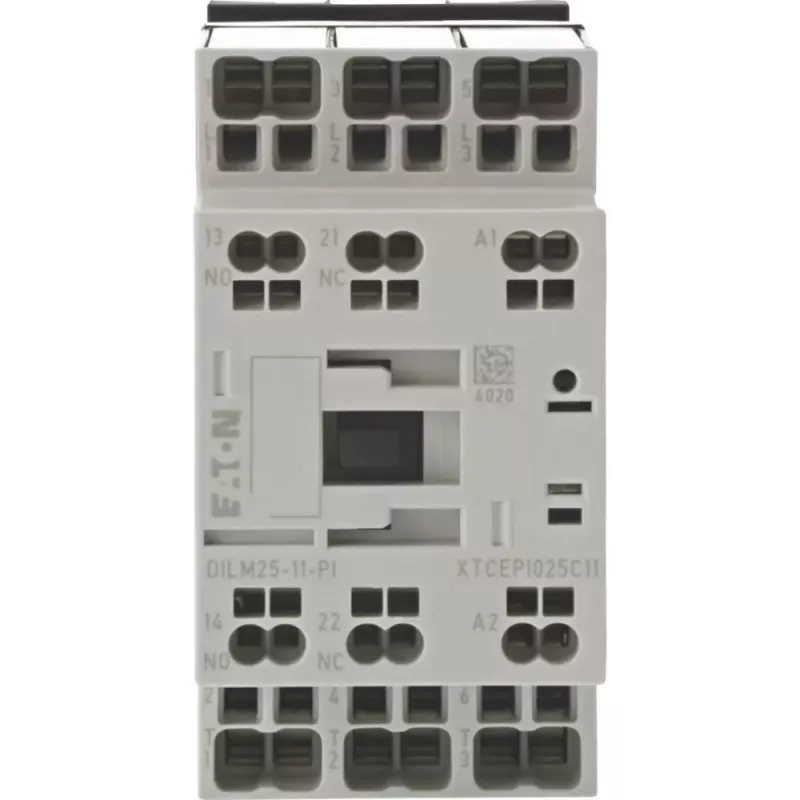

Eaton DILM25-11(RDC24)-PI stýkač, 3 spínacie hlavné kontakty, 24 V DC cievka, 25 A, 11 kW 199288

The Eaton DILM25-11(RDC24)-PI is a 3-pole contactor with a 24 V DC coil, rated for 25 A operational current (AC-3, 400 V) and 11 kW motor power. It provides reliable switching for motors and other loads in industrial control applications.

Advantages

Compact design with screw terminals and DIN rail/screw mounting. High mechanical durability of 10 million operations and electrical durability of 1.5 million operations (AC-3). Suitable for ambient temperatures from -25 to +60 °C.

Suitable for

• Motor starting and stopping
• Heating, lighting, and ventilation control
• Industrial automation systems

Key specifications

• Main contacts: 3 normally open
• Auxiliary contacts: 1 N/O + 1 N/C
• Coil voltage: 24 V DC
• Rated operational voltage: up to 690 V AC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Short-circuit protection: 35 A gG/gL fuse
• Degree of protection: IP20

Recommendations

Ideal for reliable motor control in industrial environments where a DC control voltage is available.
