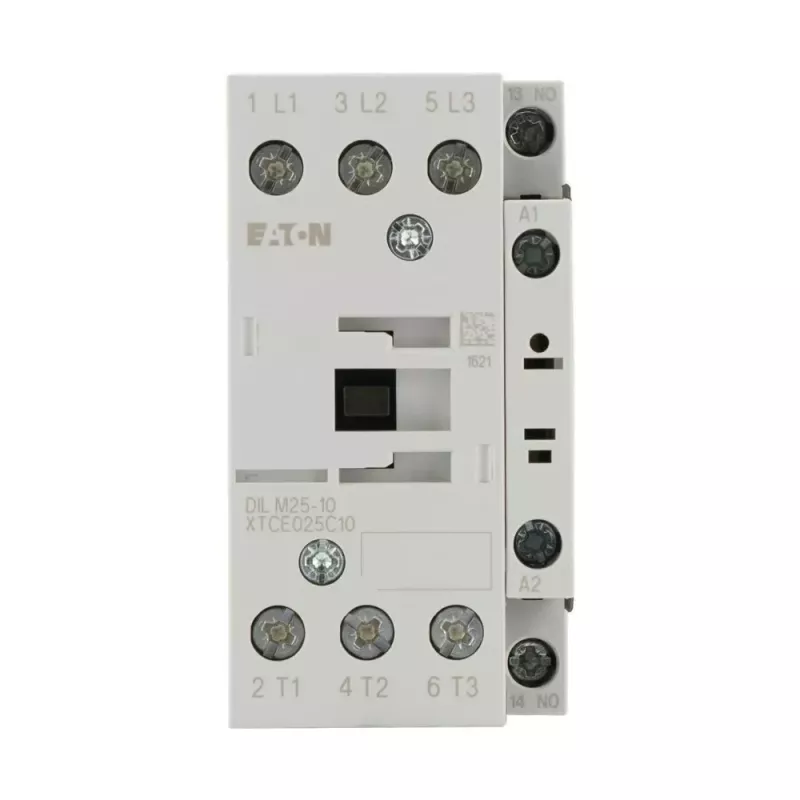

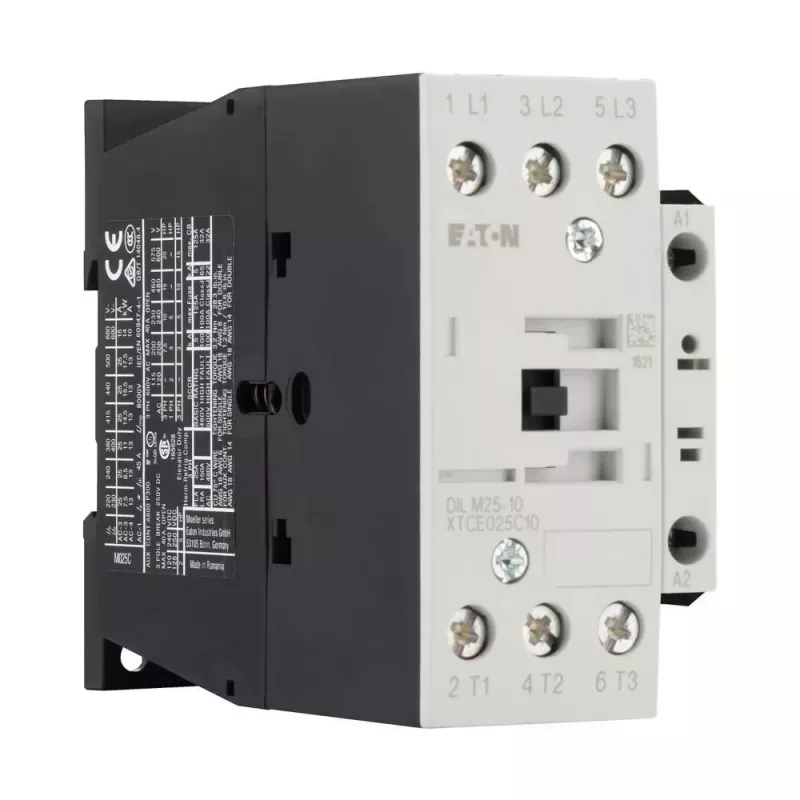

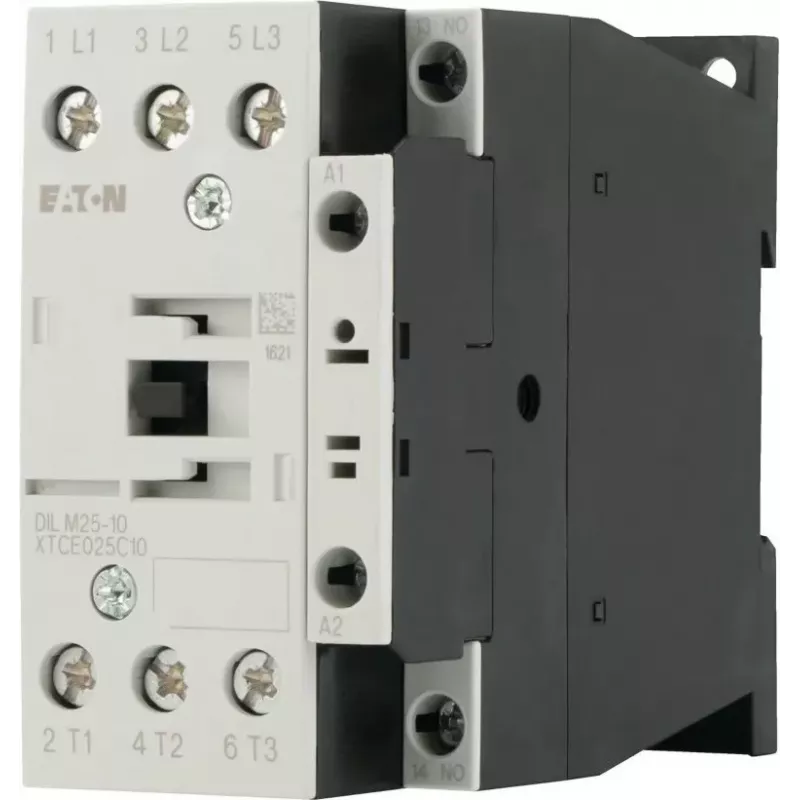

Eaton DILM25-10 3-pólový stýkač 230V 50/60Hz 25A 11kW 400V AC-3

The Eaton DILM25-10 contactor delivers robust switching for three-phase AC motors up to 11 kW at 400 V, with a 25 A rated operational current in AC-3 duty. Its 230 V 50/60 Hz coil and compact footprint make it a dependable choice for industrial control panels.

Advantages

High electrical endurance of 1.5 million operations and mechanical endurance of 10 million operations ensure long service life. The contactor features one normally open auxiliary contact for control feedback, screw terminals for secure wiring, and a wide operating temperature range from -25 to +60 °C. It complies with IEC/EN 60947, VDE 0660, UL, and CSA standards, and offers a high rated impulse withstand voltage of 6 kV for reliable insulation.

Suitable for

• Motor starting and control in industrial machinery
• Heating, ventilation, and air conditioning systems
• Pump and fan applications
• Conveyor and material handling equipment
• Building automation and lighting control

Key specifications

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 25 A
• Rated operational power (AC-3, 400 V): 11 kW
• Coil voltage: 230 V AC, 50/60 Hz
• Auxiliary contacts: 1 NO
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Terminal type: screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Short-circuit withstand current (1s): 400 A
• Short-circuit making/breaking capacity: 400 A

Recommendations

For reliable motor control in demanding environments, the Eaton DILM25-10 offers proven performance and compliance with international standards. Its compact design and versatile mounting options simplify panel integration.
