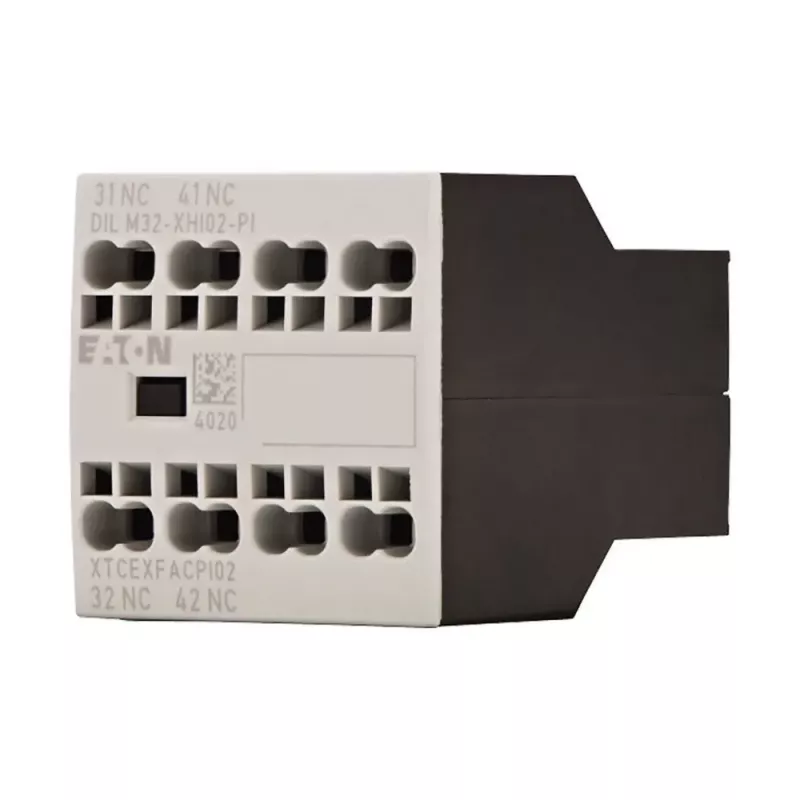

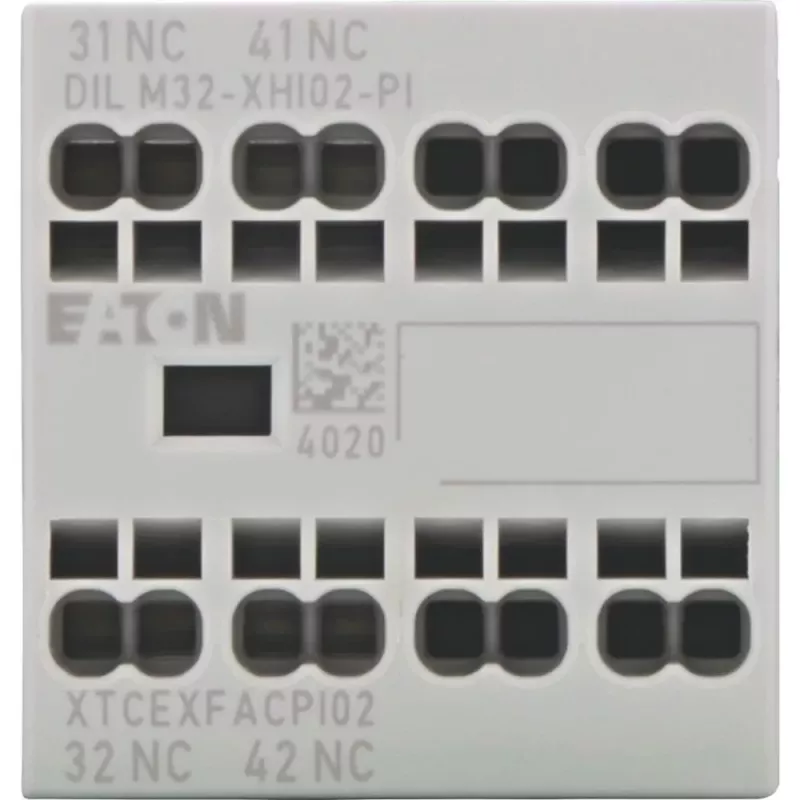

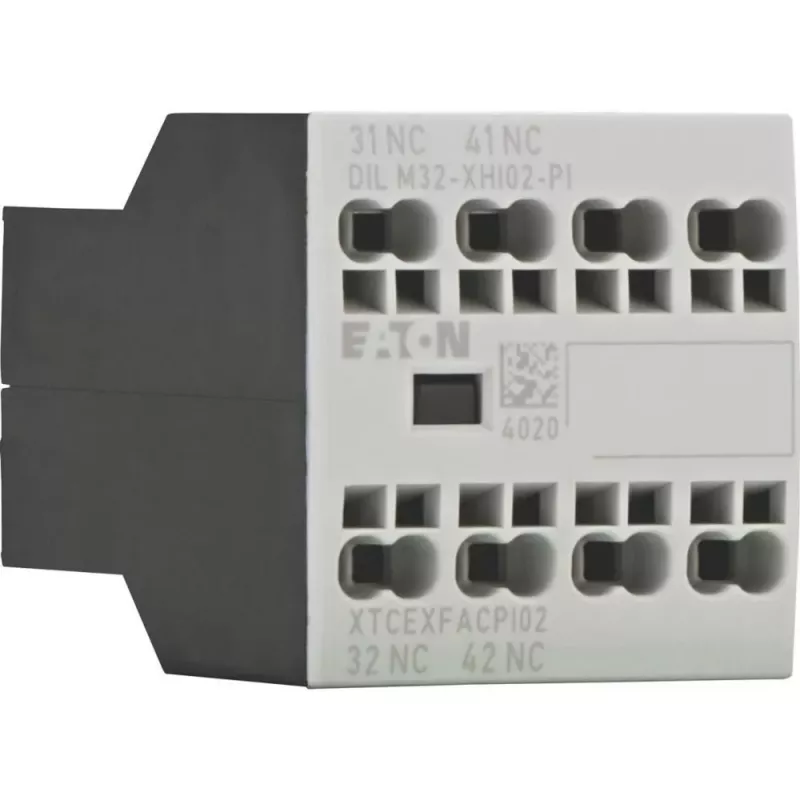

Eaton DILM32-XHI02-PI pomocný kontaktný blok, 2 NC, 4 A, predná montáž 199310

With a rated operational current of 4 A at AC-15 (220/240 V), this Eaton auxiliary contact block delivers reliable switching for control circuits. The DILM32-XHI02-PI provides two normally closed (NC) contacts and is designed for front mounting on Eaton DILM7 to DILM32 contactors.

Overview

The Eaton DILM32-XHI02-PI is an auxiliary contact block that expands the functionality of compatible Eaton contactors. It features two NC contacts, allowing integration into control and signaling circuits. The block is mounted on the front of the contactor, ensuring easy access and installation.

What stands out

• Two NC contacts for versatile control applications
• Rated operational current of 4 A at AC-15 (220/240 V)
• Front mounting for quick installation on Eaton DILM7 to DILM32 contactors
• High electrical durability: 1.3 million operations
• Wide operating temperature range: -25 to +60 °C

Technical details

• Contact configuration: 0 NO / 2 NC
• Rated operational current (AC-15, 220/240 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Terminal type: Screw terminals
• Connection capacity (solid): 0.75 - 2.5 mm² (1 or 2 conductors)
• Connection capacity (stranded with ferrule): 0.75 - 2.5 mm² (1 or 2 conductors)
• Mechanical durability: 10 million operations
• Electrical durability: 1.3 million operations
• Standards compliance: IEC/EN 60947-5-1

Our verdict

A robust auxiliary contact block for Eaton contactors, offering dependable NC contacts and straightforward front mounting. Ideal for expanding control circuit capabilities in industrial applications.
