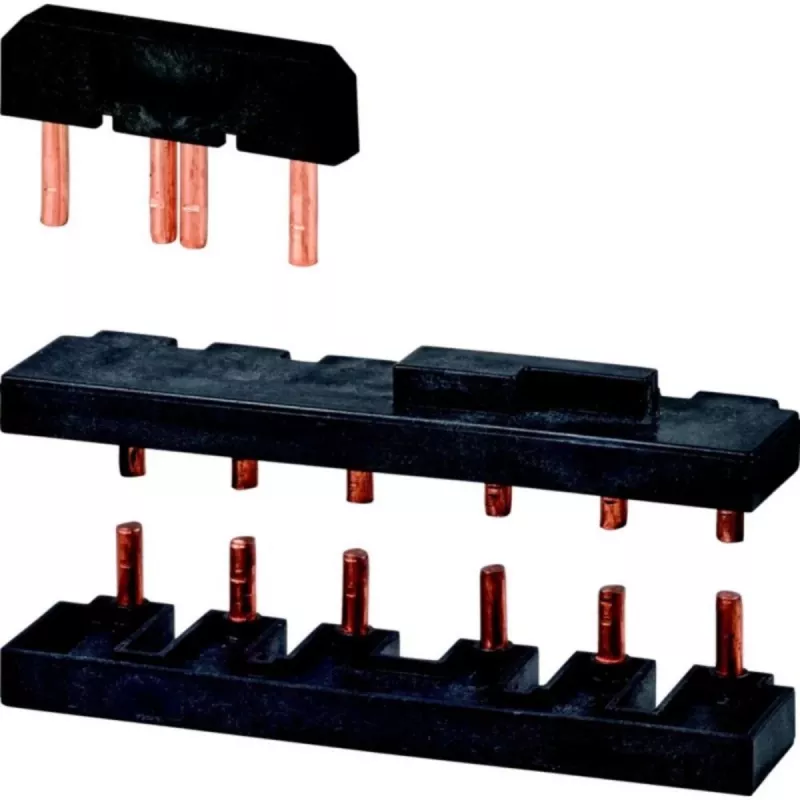

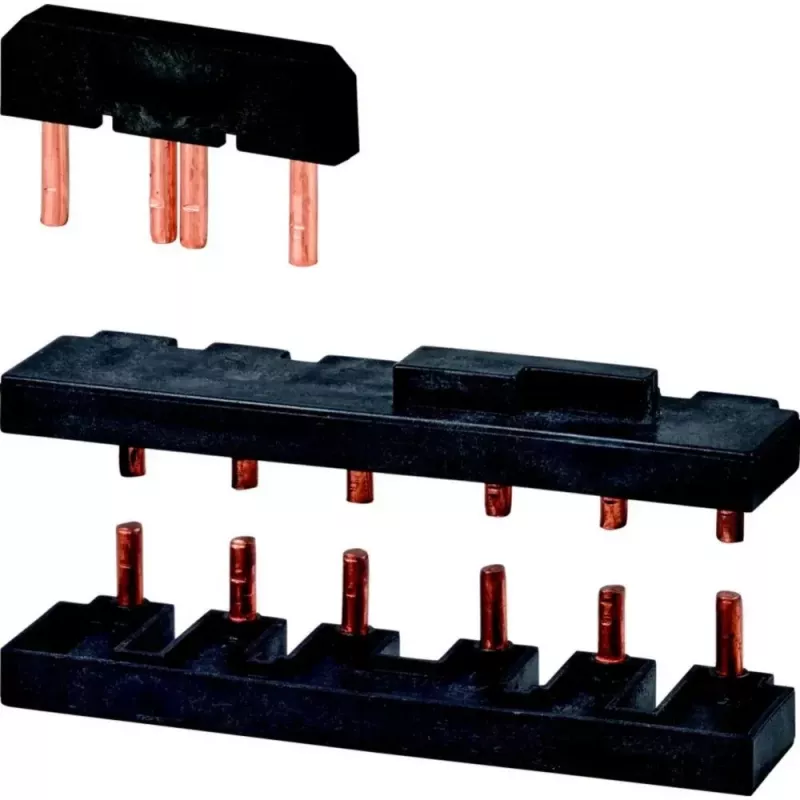

Eaton DILM65-XSL sada pre zapojenie hviezda-trojuholník pre stýkače DILM40-DILM65 101058

Building a star-delta motor starter with Eaton DILM contactors often means sourcing and wiring multiple bridging components separately. The Eaton DILM65-XSL star-delta combination wiring set solves this by providing a pre-wired, mechanically interlocked connection between DILM40, DILM50, or DILM65 contactors, reducing assembly time and wiring errors.

Who is it for

Industrial electricians and panel builders who assemble motor starters for three-phase induction motors. It suits applications where reliable star-delta starting is required, such as pumps, fans, compressors, and conveyors.

Main features

• Direct mounting between compatible Eaton DILM contactors
• Pre-wired main and auxiliary circuits for fast installation
• Mechanical interlock prevents simultaneous contactor engagement
• High-quality insulating and conductive materials for durability
• Operating temperature range from -25°C to +60°C

Specifications

• Product type: Star-delta combination wiring set
• Compatibility: Eaton DILM40, DILM50, DILM65 contactors
• Mounting type: Direct mounting (between contactors)
• Series: DILM
• Material: High-quality insulating and conductive materials
• Operating temperature: -25°C to +60°C
• Storage temperature: -40°C to +80°C
• Pollution degree: 3
• Degree of protection: IP20 (when installed)
• Standards: IEC/EN 60947-4-1, VDE 0660
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

Verify that your contactor model matches DILM40, DILM50, or DILM65 before ordering. The wiring set is designed for direct mounting between the contactors; ensure adequate panel space for the assembled starter.
