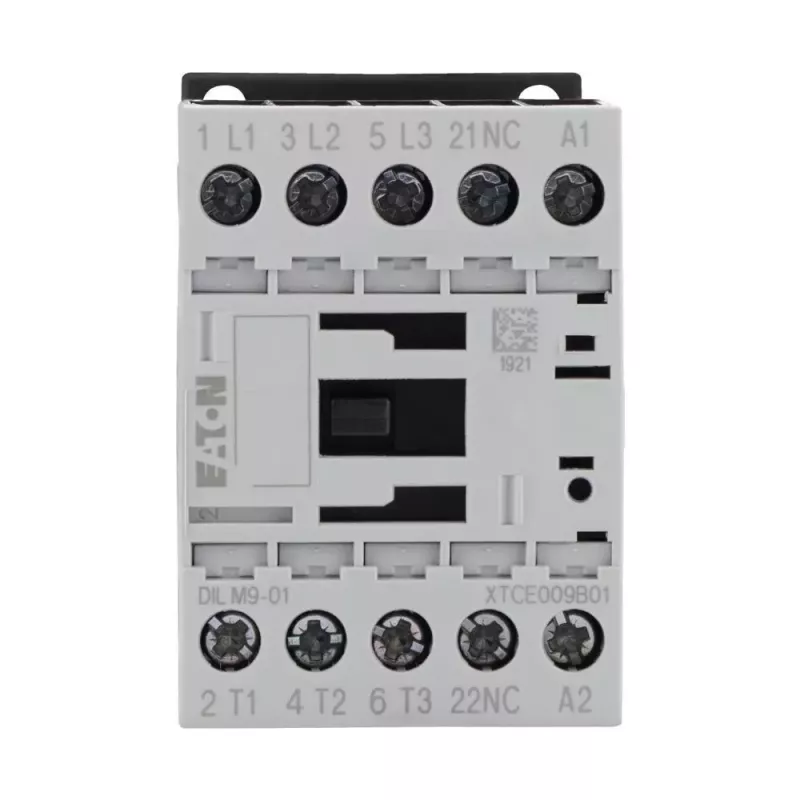

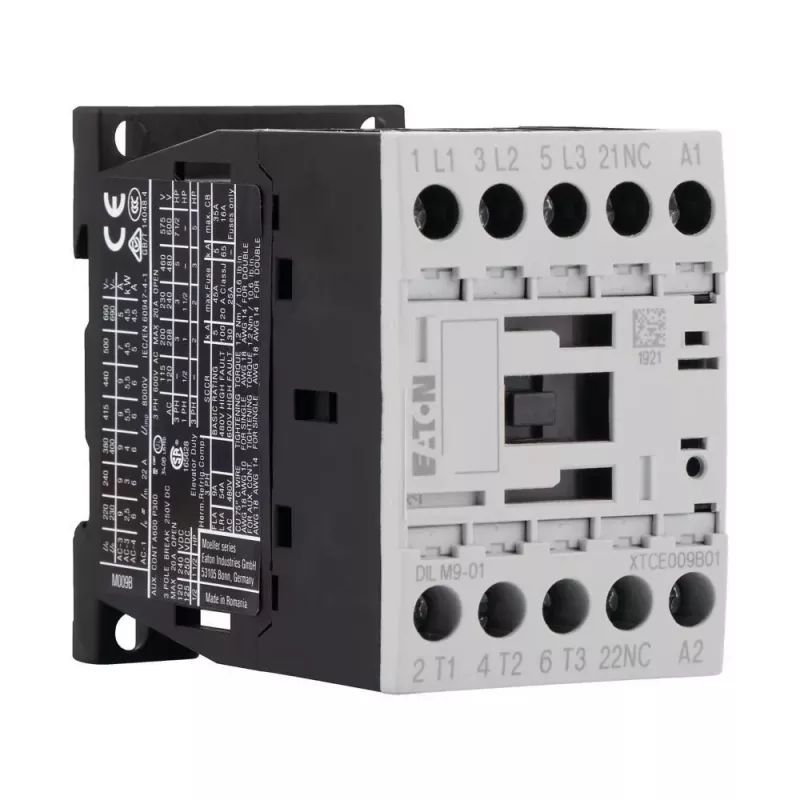

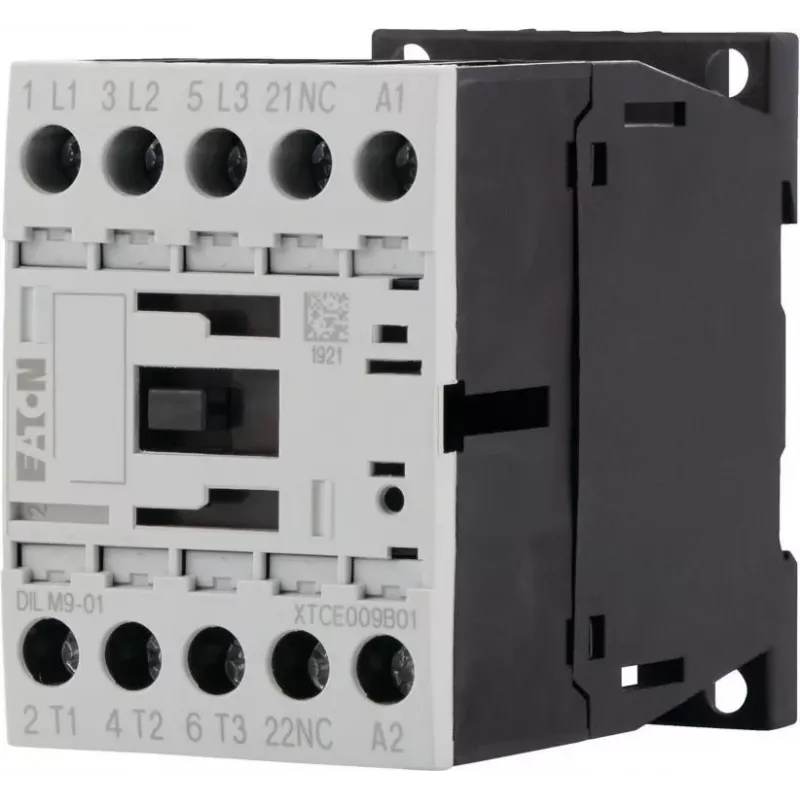

Eaton DILM9-01 24V AC 50Hz 3-pólový stýkač, 9A, 1NO, IP20 276712

Contactor with 3 main poles and 1 normally open auxiliary contact, rated for 9 A at AC-3, 400 V and 4 kW motor power. Coil operates on 24 V AC at 50 Hz. Screw terminals and DIN rail/screw mounting. Degree of protection IP20.

Advantages

Rated insulation voltage 690 V and impulse withstand 6 kV. Mechanical endurance 10 million operations, electrical endurance 1.5 million operations at AC-3. Operating temperature -25 to +60 °C.

Suitable for

• Motor starting and control up to 4 kW at 400 V AC-3
• Switching resistive loads up to 22 A at AC-1
• Industrial control panels with 24 V AC control voltage

Key specifications

• Coil voltage: 24 V AC, 50 Hz
• Main poles: 3
• Auxiliary contacts: 1 NO
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated operational current (AC-1, 400 V): 22 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Mounting: DIN rail / screw
• Terminal type: screw
• Operating temperature: -25 to +60 °C
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Mechanical durability: 10 x 10^6 operations

Recommendations

Use with appropriate overload relay for motor protection. Ensure enclosure provides additional protection if installed in dusty or wet environments.
