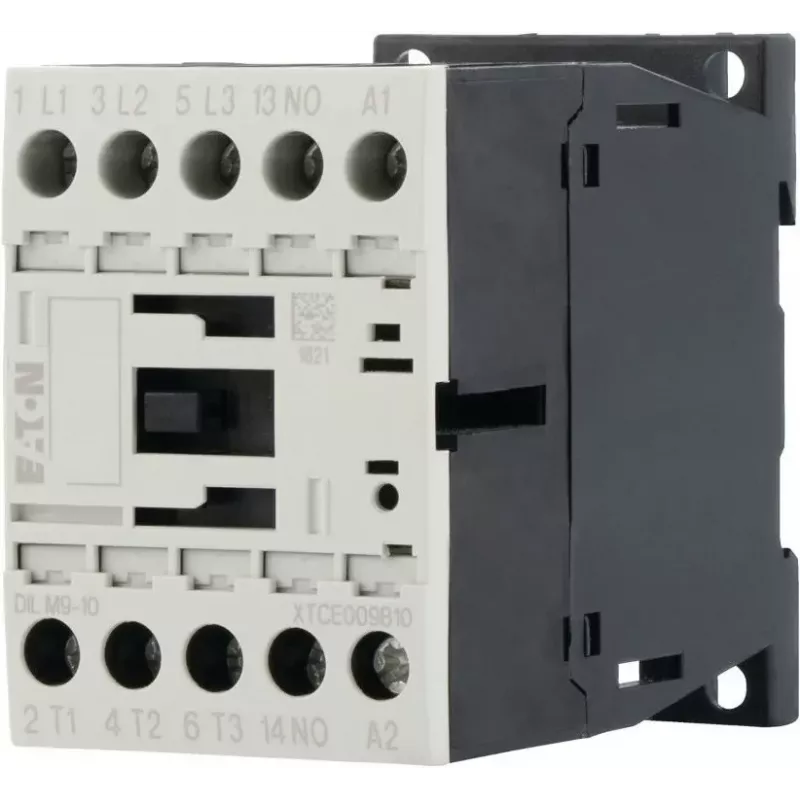

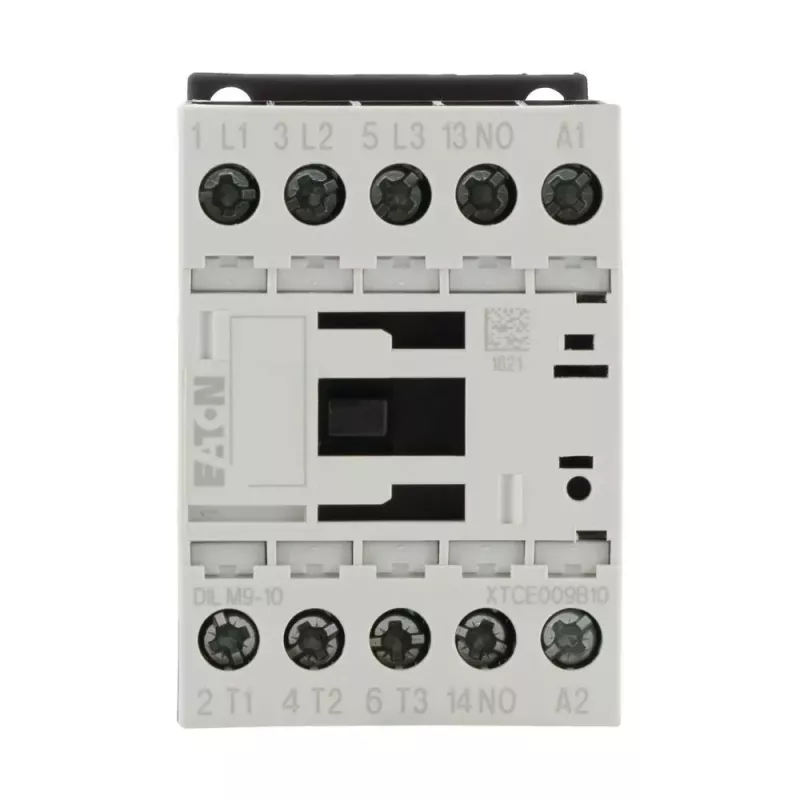

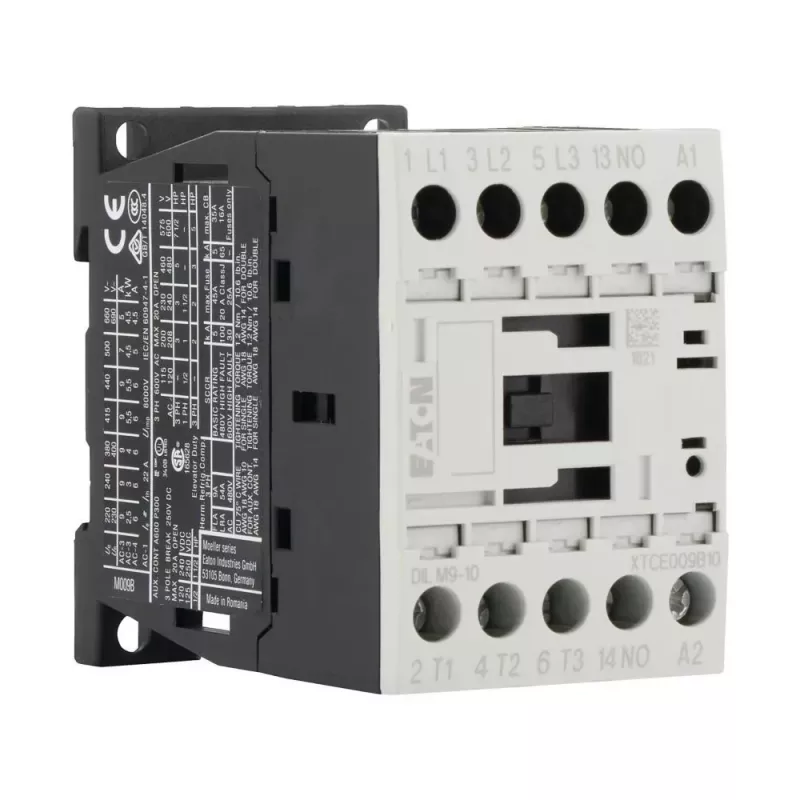

Eaton DILM9-10(24V50HZ) stykač, 3-pólový, 24 V AC cievka, 9 A, IP20 276677

The Eaton DILM9-10(24V50HZ) contactor is a compact 3-pole switching device engineered for reliable motor control and load switching in industrial environments. Its 24 V AC coil at 50 Hz makes it a direct fit for control circuits that already run on low-voltage AC, eliminating the need for additional power supplies. With a 9 A rated operational current at 400 V AC-3, it handles small motors up to 4 kW while maintaining a slim 45 mm width for space-saving panel installations.

Highlights

• 3 main poles, normally open (NO), rated for 9 A at 400 V AC-3
• Coil voltage: 24 V AC, 50 Hz
• Rated insulation voltage 690 V, impulse withstand 6 kV
• IP20 protection, suitable for DIN rail or screw mounting
• Long mechanical life: 10 million operations

In daily use

The DILM9-10 is built for frequent switching. Its screw terminals accept solid or stranded conductors and hold them securely under vibration. The contactor mounts on standard 35 mm DIN rail or with screws, and its 45 mm width leaves room for additional devices in the enclosure. The auxiliary contact (1 NO) provides a status signal for interlocks or PLC inputs.

Full specifications

• Number of poles: 3
• Main contacts configuration: 3 NO
• Auxiliary contacts configuration: 1 NO
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Coil voltage: 24 V AC
• Coil frequency: 50 Hz
• Mechanical durability: 10 x 10^6 operations
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Ambient operating temperature: -25 to +60 °C
• Terminal type: Screw terminals
• Mounting: DIN rail / screw mounting
• Protection degree: IP20

Final note

The DILM9-10 combines a proven contactor design with a 24 V AC coil, making it a straightforward choice for control panels that standardize on low-voltage AC control signals.
