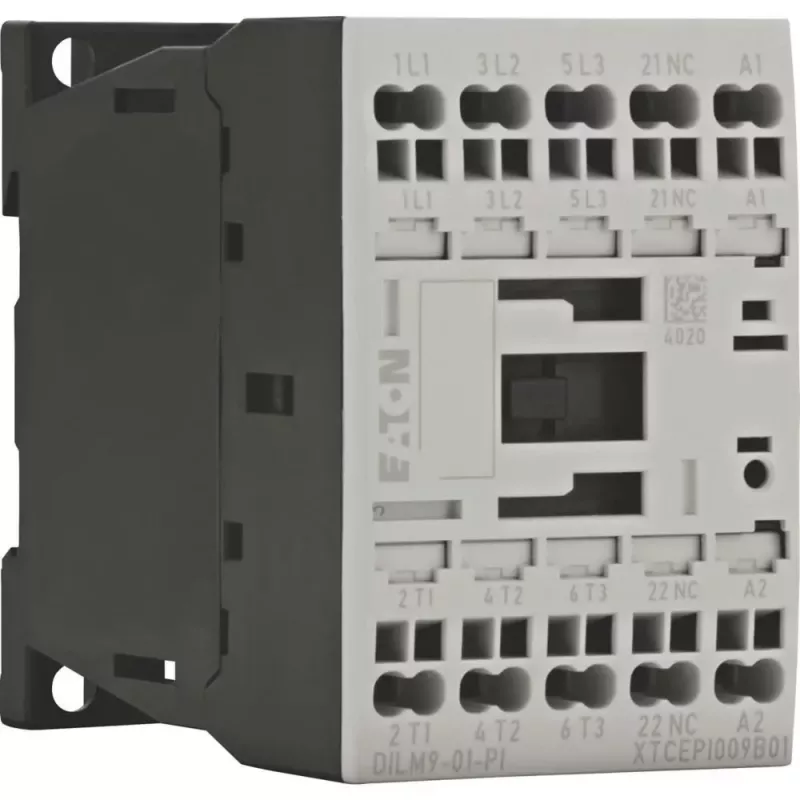

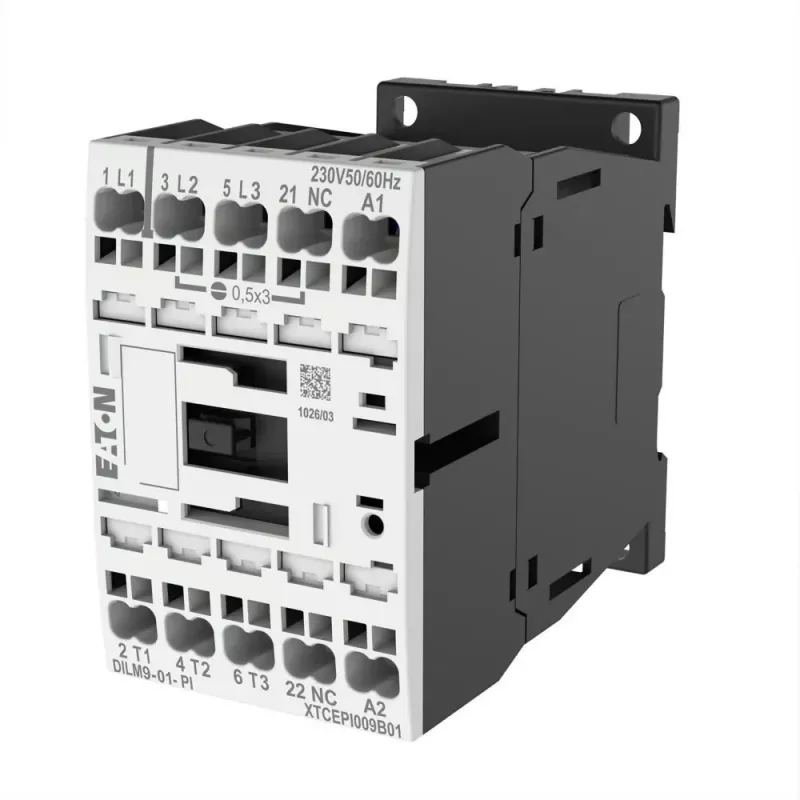

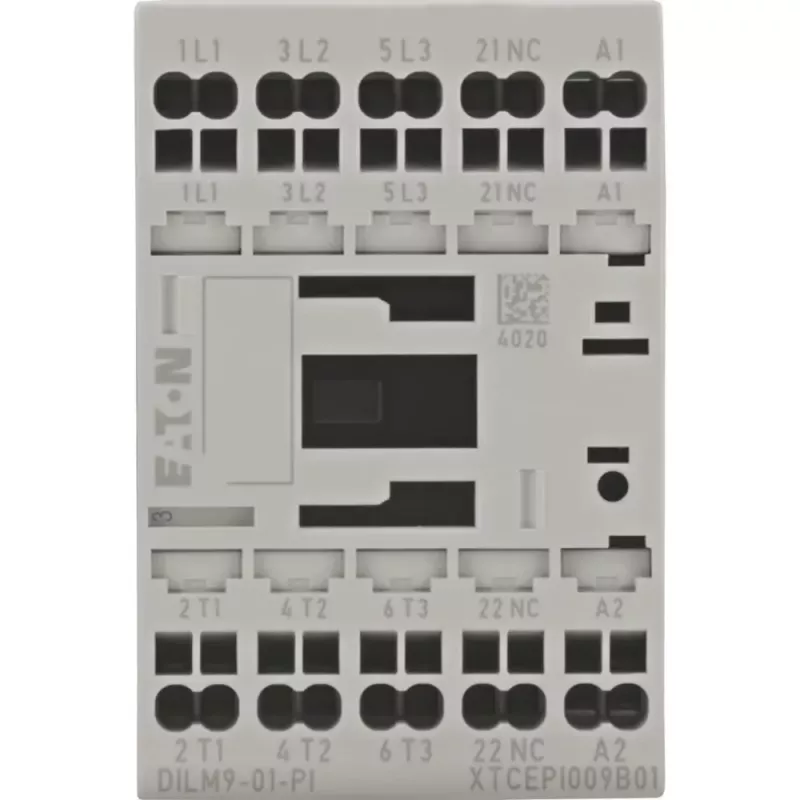

Eaton DILM9-19923401 (230V 50Hz, 240V 60Hz) - PI výkonový stykač

This Eaton DILM9 power contactor is a robust 3-pole switching device engineered for motor control and industrial loads up to 4 kW at 400 V AC-3. Its 230 V 50 Hz / 240 V 60 Hz AC coil ensures reliable operation in diverse power networks, while the compact frame and screw terminals simplify installation on DIN rail or mounting plate.

Advantages

The DILM9 combines high electrical endurance (1.5 million operations AC-3) with a mechanical life of 10 million cycles, reducing maintenance and downtime. With an integrated 1 NO auxiliary contact, it supports control logic without additional components. Rated insulation voltage of 690 V and impulse withstand of 6 kV provide safe isolation in demanding environments.

Suitable for

• Direct-on-line starting of three-phase motors up to 4 kW
• Switching resistive and inductive AC loads in industrial control panels
• Applications requiring DIN rail or screw mounting with IP20 protection
• Systems compliant with IEC/EN 60947, VDE 0660, UL, and CSA standards

Key specifications

• Rated operational current: 9 A (AC-3, 400 V), 22 A (AC-1, 400 V)
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Main contacts: 3 NO, auxiliary contact: 1 NO
• Rated insulation voltage: 690 V, impulse withstand: 6 kV
• Operating temperature: -25 to +60 °C
• Short-circuit withstand (1s): 1000 A

Recommendations

For reliable motor starting in industrial environments, pair the DILM9 with appropriate overload relays and short-circuit protection. Verify coil voltage compatibility with your control circuit before installation.
