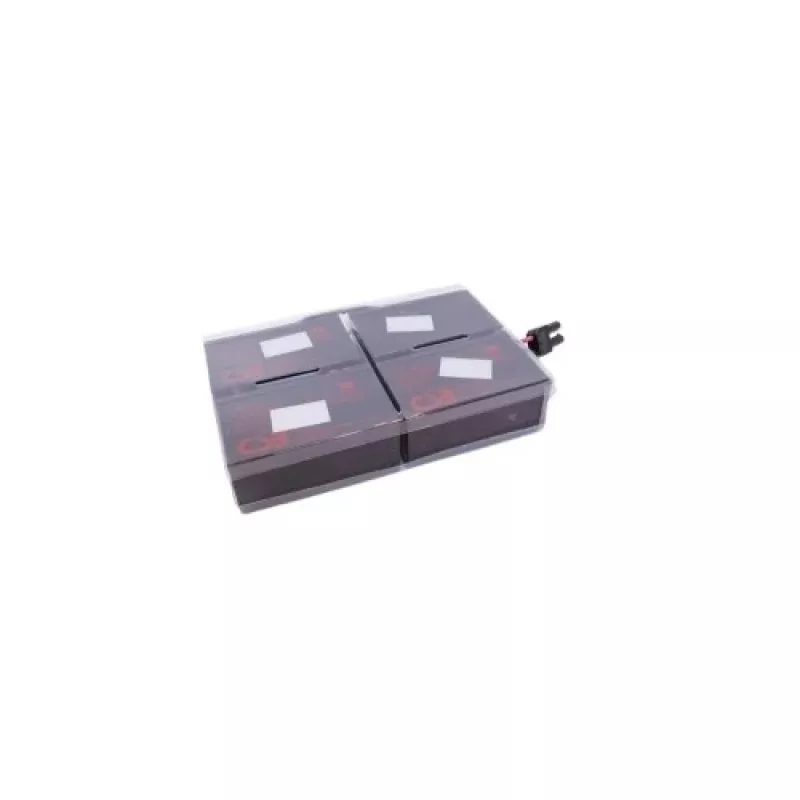

Eaton EB004SP batéria UPS, uzavretá olovená (VRLA), 12 V, 9 Ah

When your Eaton UPS batteries wear out, runtime drops and critical loads are at risk. The Eaton EB004SP Easy Battery+ pack restores full backup power with four sealed lead-acid (VRLA) batteries, each 12 V / 9 Ah, wired for a 48 V system. This direct-fit replacement kit is preconfigured for Eaton 5130, Evolution S, 5PX, and 5SC UPS models, eliminating guesswork and downtime in server rooms, network closets, and edge installations.

Who is it for

IT administrators and facility managers responsible for maintaining Eaton UPS systems in small to medium business environments. Ideal for those who need a reliable, maintenance-free battery replacement without complex assembly.

Main features

• Complete replacement set: four 12 V / 9 Ah VRLA batteries in series for 48 V output.
• Maintenance-free, leak-resistant AGM technology with low self-discharge.
• Preconfigured for Eaton 5130, Evolution S, 5PX, and 5SC UPS models.
• Black enclosure protects batteries and simplifies installation.
• Total weight 11.38 kg, supplied as a single kit.

Specifications

• Battery type: Sealed Lead Acid (VRLA / AGM)
• Voltage per battery: 12 V
• Capacity per battery: 9 Ah (20-hour rate)
• Batteries included: 4
• Total configuration: 48 V
• Terminal type: F2 (Faston Tab 250)
• Design life: 3-5 years at 25°C
• Operating temperature (discharge): -15°C to 50°C
• Operating temperature (charge): 0°C to 40°C
• Maximum discharge current: 100 A (5 s)
• Maximum charge current: 2.7 A
• Internal resistance: approx. 19 mΩ
• Self-discharge: <3% per month at 25°C
• Container material: ABS
• Certifications: CE, UL component recognition

Tips

Always follow Eaton's safety instructions: turn off and isolate the UPS before replacing batteries. Recycle old batteries according to local regulations. For best performance, store the kit in a cool, dry place before installation.
