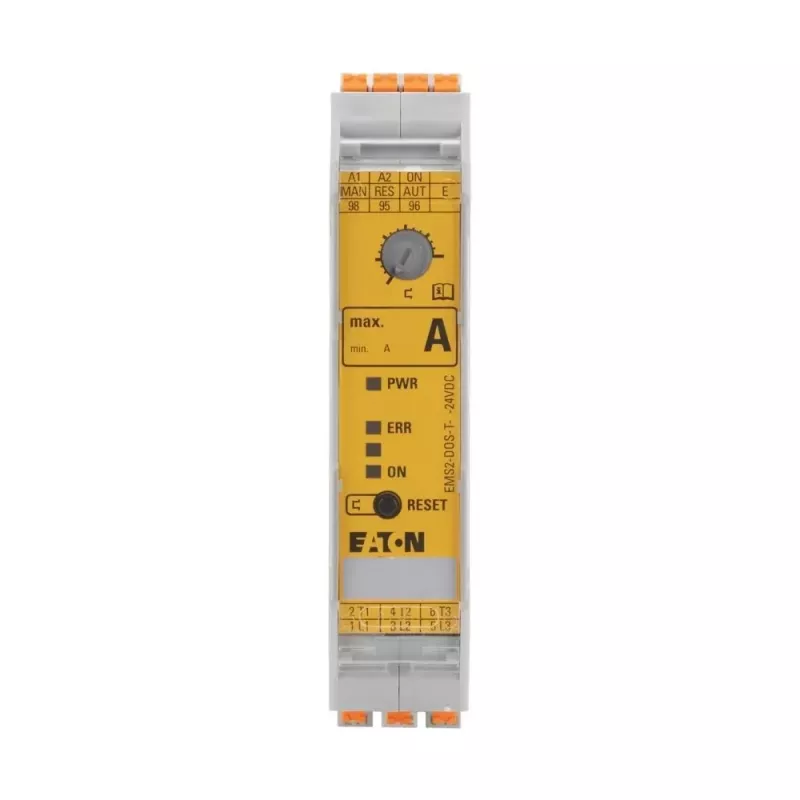

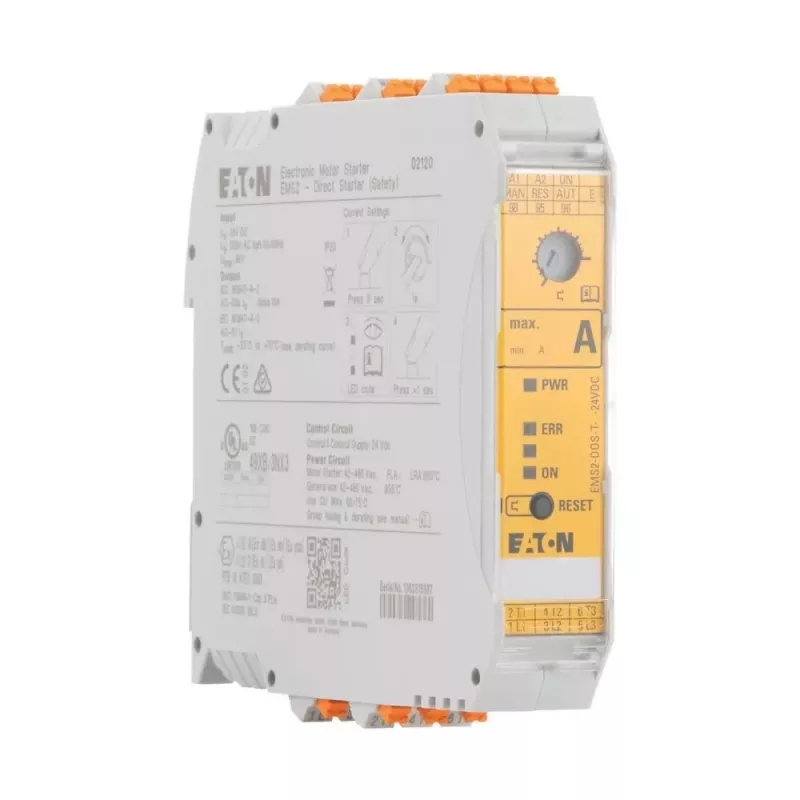

Eaton EMS2-DOS-T-9-24VDC priamy štartér, 3 kW pri 400 V, 9 A, 24 V DC ovládanie 192397

Rated for 3 kW at 400 V, the Eaton EMS2-DOS-T-9-24VDC direct starter delivers reliable motor control with a 9 A rated operating current and a wide 0.6–9 A overload release range. Its 24 V DC control voltage suits industrial automation systems.

Overview

The Eaton EMS2-DOS-T-9-24VDC is a direct starter for three-phase motors up to 3 kW at 400 V. It features electronic overload protection (CLASS 10) and a 24 V DC control circuit. The unit mounts on a DIN rail and uses screw terminals for secure connections.

What stands out

• Rated motor power: 3 kW at 400 V
• Rated operating current: 9 A
• Overload release range: 0.6–9 A
• Control voltage: 24 V DC
• Compact DIN rail mounting

Technical details

• Product type: Direct starter
• Rated operational voltage: up to 500 V AC
• Number of phases: 3
• Connection type: screw terminals
• Protection degree: IP20
• Ambient operating temperature: -25 to +60 °C
• Auxiliary contacts: 1 NO
• Overload release class: CLASS 10
• Control circuit type: electronic
• Reset function: automatic/manual
• Standard compliance: IEC/EN 60947-4-2
• Switching frequency: max. 30 operations/hour

Our verdict

A robust direct starter for 3 kW motors, offering precise overload protection and flexible control voltage options.
