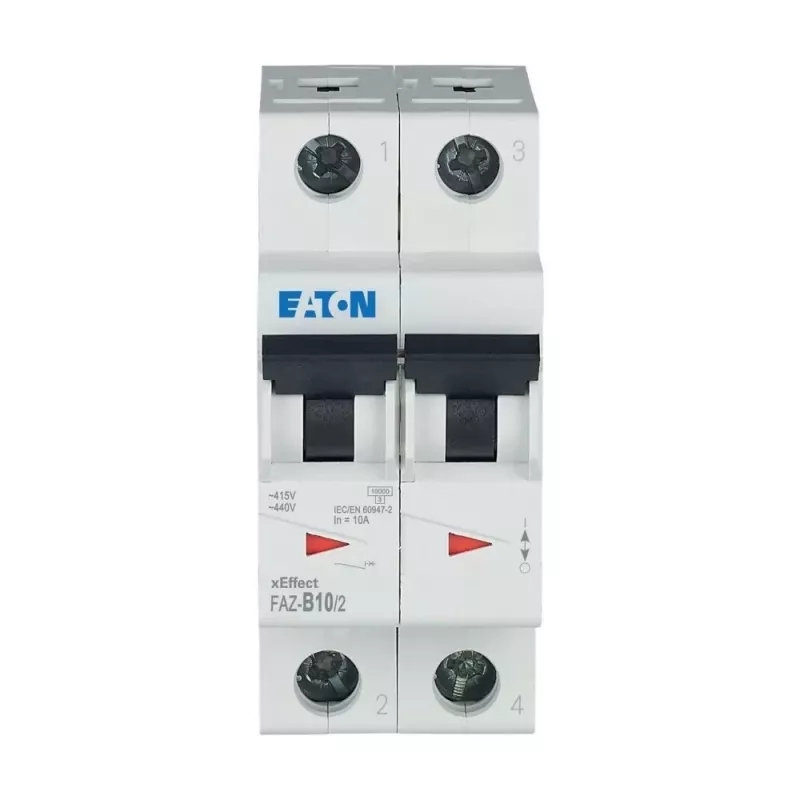

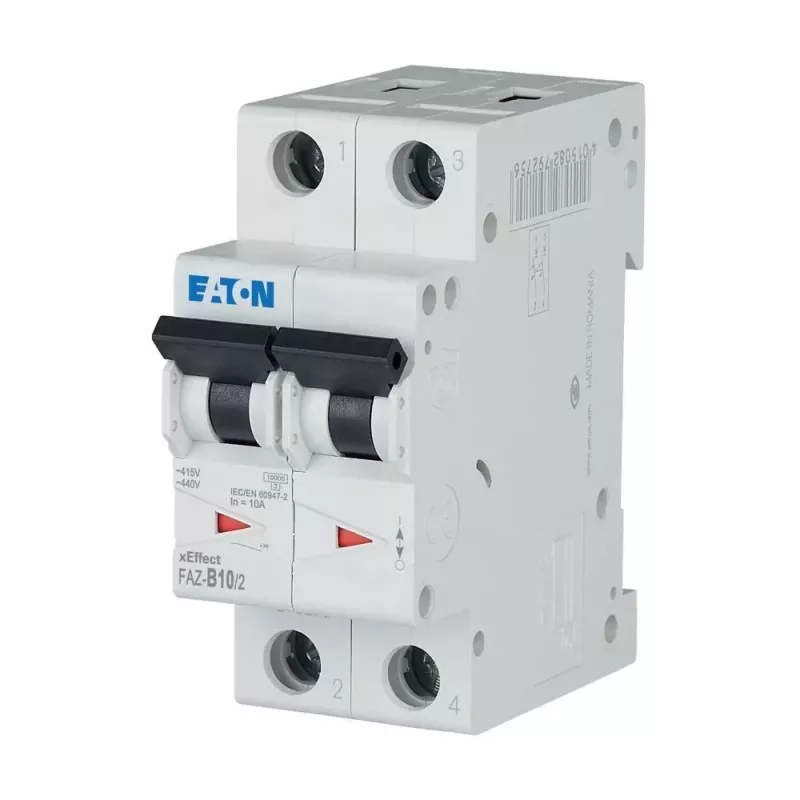

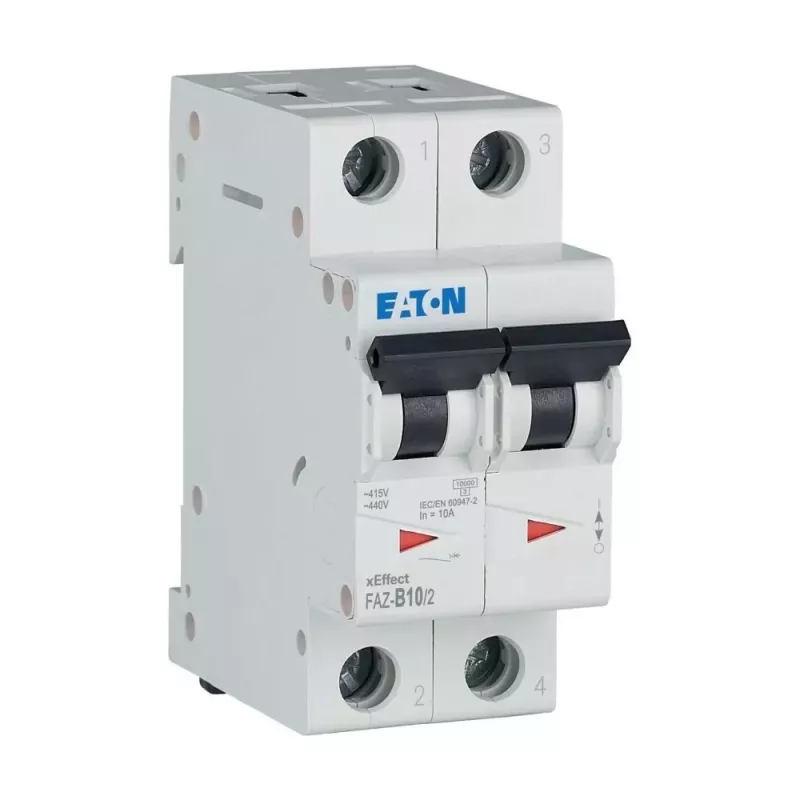

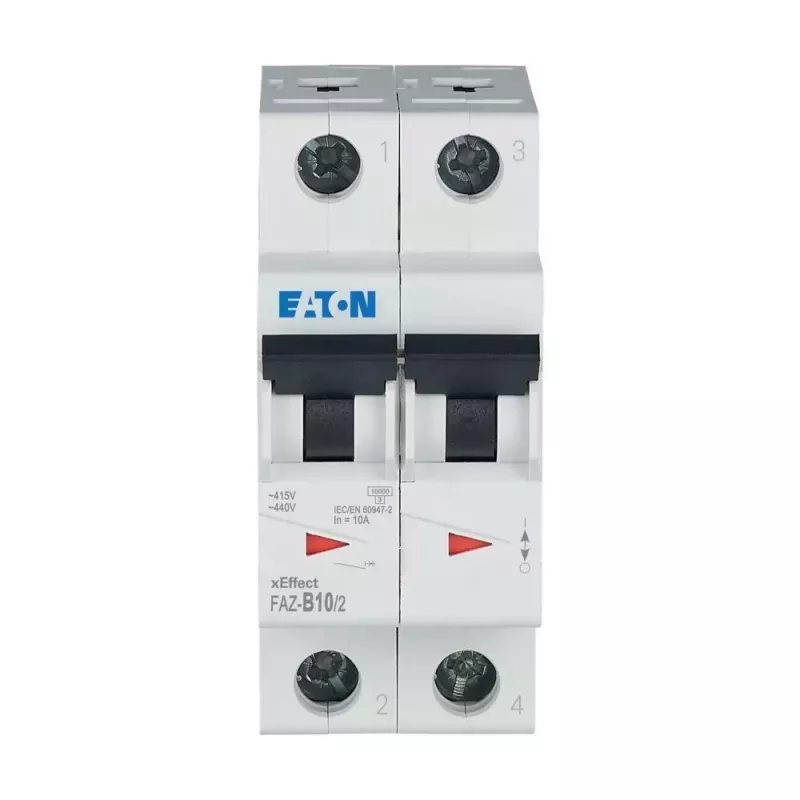

Eaton FAZ-B10/2 istič typu B 10A 2-pólový 6kA 278730

Electricians and panel builders install the Eaton FAZ-B10/2 to protect 230/400 V circuits from overload and short circuit. This 2-pole miniature circuit breaker trips magnetically at 3–5 times rated current, making it suitable for lighting and socket circuits with moderate inrush.

Key specifications

• Rated current: 10 A
• Tripping characteristic: Type B
• Number of poles: 2
• Rated voltage: 230/400 V AC
• Breaking capacity: 6 kA
• Mounting: DIN rail (EN 60715)
• Module width: 2 TE

Why choose it

The FAZ-B10/2 combines a compact 2-module width with a 6 kA breaking capacity, ensuring reliable protection in distribution boards. Its screw terminals accept conductors up to 25 mm², simplifying installation.

Ideal use cases

• Residential and commercial distribution boards
• Protection of lighting and socket circuits
• Control circuits with moderate inrush currents

Good to know

The breaker operates at 50/60 Hz and is designed for ambient temperatures from -25 °C to +75 °C. It complies with EN 60898-1 and IEC 60898-1.
