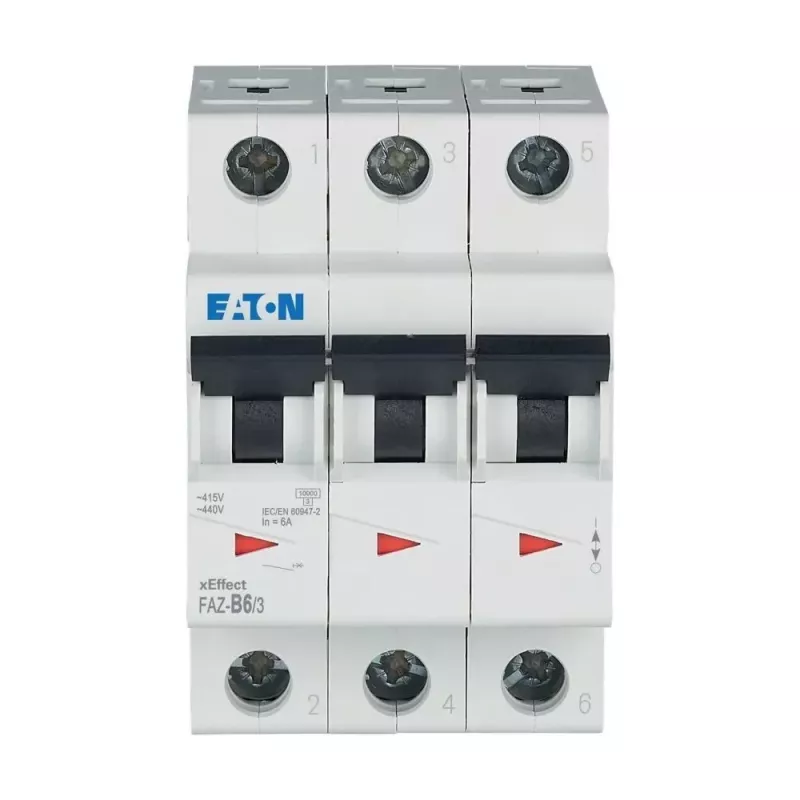

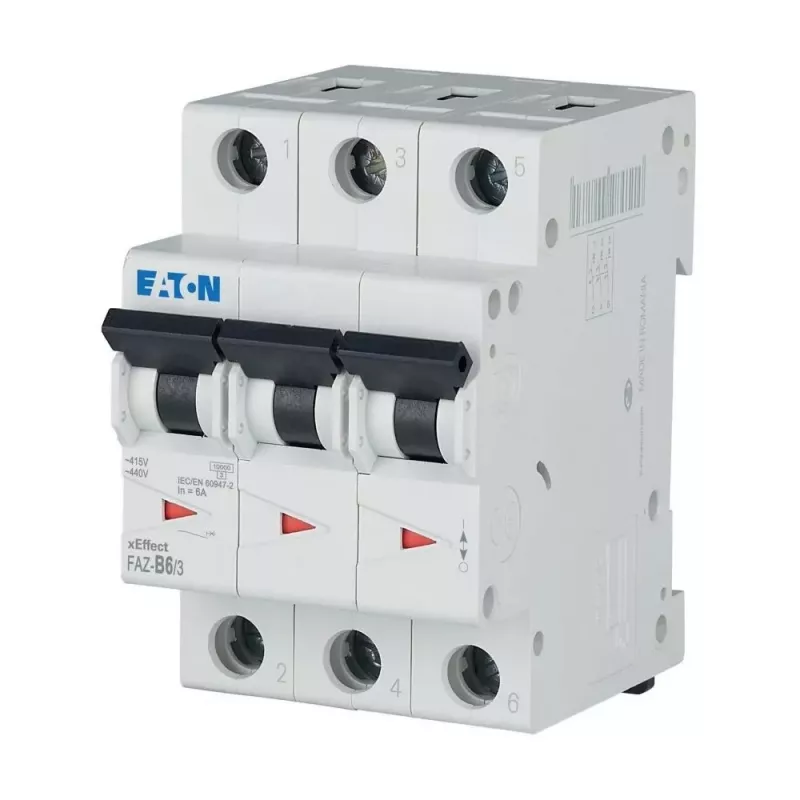

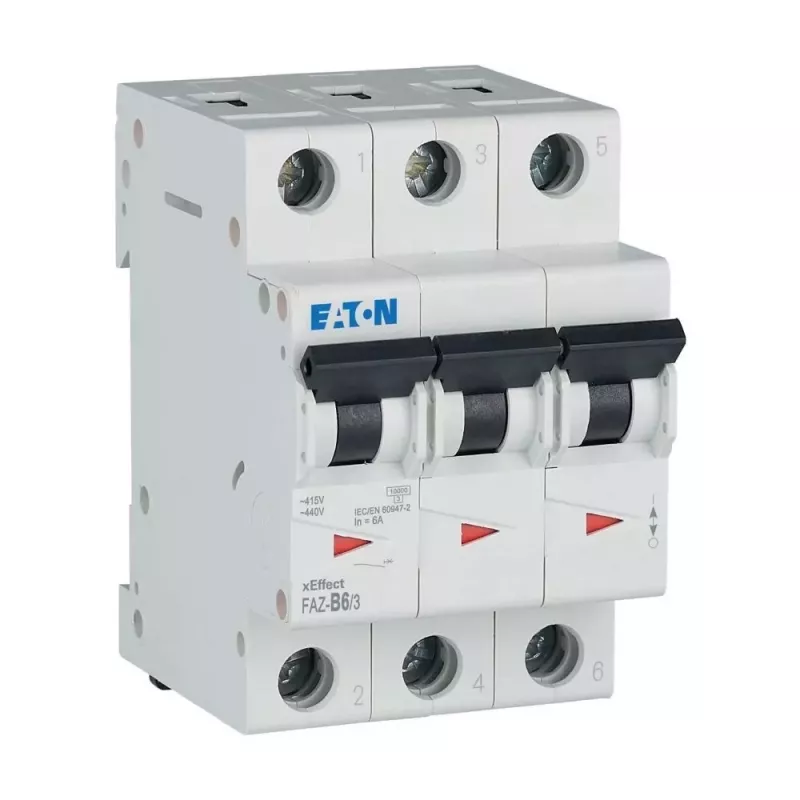

Eaton FAZ-B6/3 Istič typ B 6 A 3-pólový 10 kA 278841

The Eaton FAZ-B6/3 is a 3-pole miniature circuit breaker with a rated current of 6 A and a breaking capacity of 10 kA, providing reliable protection for electrical circuits.

Overview

This MCB features a Type B tripping characteristic, suitable for protecting cables and equipment against overload and short-circuit in residential and commercial installations. It is designed for DIN rail mounting and offers a compact width of 3 modules (52.5 mm).

What stands out

• 3-pole design for three-phase circuits
• Rated voltage 400 V AC, frequency 50/60 Hz
• Energy limiting class 3 for enhanced safety
• Wide operating temperature range from -25 to +75 °C
• Screw terminals with connection capacity 1-25 mm²

Technical details

• Number of poles: 3
• Rated current: 6 A
• Tripping characteristic: Type B
• Rated breaking capacity: 10 kA
• Rated insulation voltage: 440 V
• Rated impulse withstand voltage: 4 kV
• Degree of protection: IP20 (terminals), IP40 (front)
• Standards: IEC/EN 60898-1

Our verdict

A robust and reliable MCB for three-phase circuit protection, offering high breaking capacity and a wide operating temperature range.
