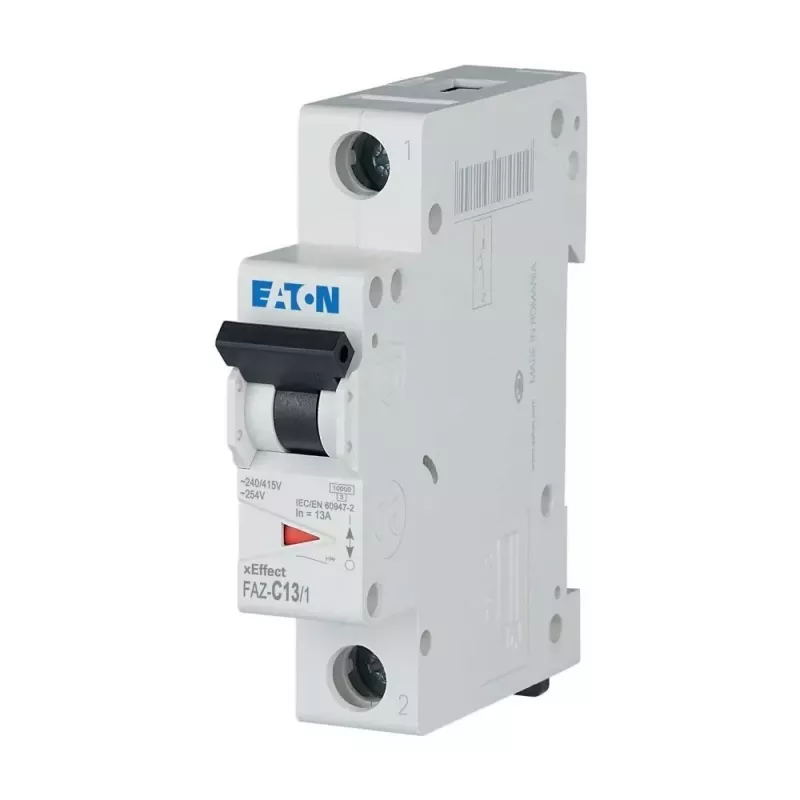

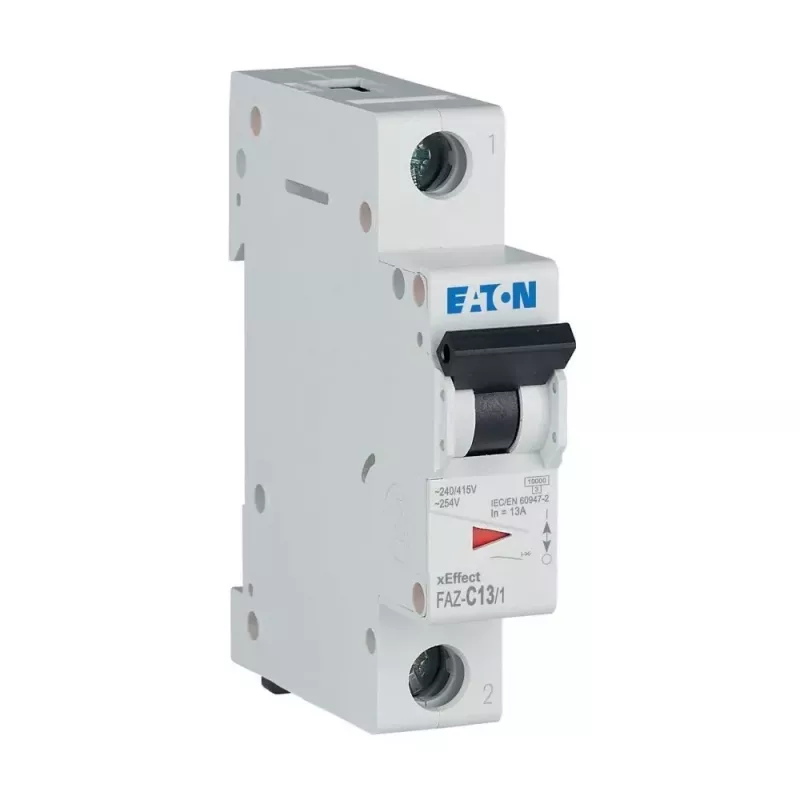

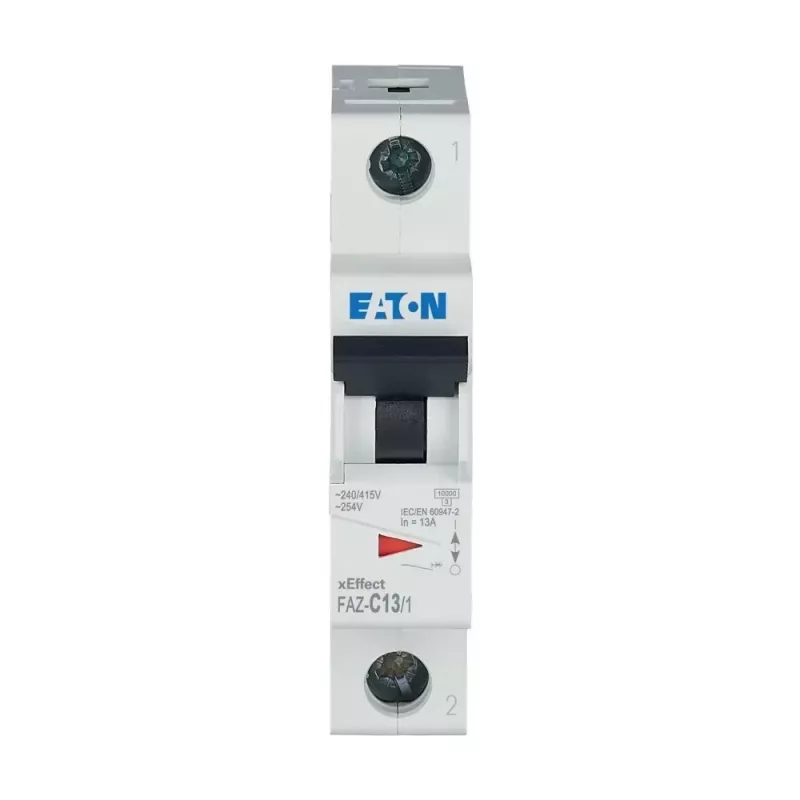

Eaton FAZ-C13/1 istič 1-pólový C-charakteristika 13 A 278559

Protect electrical circuits from overload and short-circuit damage with the Eaton FAZ-C13/1 miniature circuit breaker. This 1-pole MCB is rated for 13 A with a C tripping characteristic, making it suitable for loads with moderate inrush currents such as motors, lighting, and socket outlets in residential and commercial installations.

Who is it for

Electricians, panel builders, and facility maintenance teams who need reliable overcurrent protection in distribution boards and control panels. The FAZ-C13/1 fits standard DIN rail mounting and occupies just one module width, simplifying installation and space planning.

Main features

• 1-pole, 13 A rated current with C tripping characteristic
• 6 kA breaking capacity according to EN 60898
• Dual voltage rating: 230/400 V AC and 48 V DC per pole
• Compact 1-module width (17.5 mm) for DIN rail mounting
• Wide operating temperature range from -25°C to +75°C
• High endurance: >10,000 electrical and >20,000 mechanical operations

Specifications

• Number of poles: 1
• Rated current: 13 A
• Tripping characteristic: C
• Rated operational voltage: 230/400 V AC, 48 V DC per pole
• Rated breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Degree of protection: IP20 (terminals), IP40 (front with cover)
• Terminal capacity: 1–25 mm² solid, 1–16 mm² stranded
• Operating temperature: -25°C to +75°C
• Storage temperature: -40°C to +80°C
• Energy limiting class: 3
• Electrical endurance: >10,000 operations
• Mechanical endurance: >20,000 operations
• Standards: EN 60898, IEC 60898
• Module width: 1 module (17.5 mm)

Tips

When selecting a miniature circuit breaker, ensure the tripping characteristic matches the load profile. C-curve breakers are ideal for circuits with moderate inrush currents, such as small motors and fluorescent lighting. For purely resistive loads like heaters, a B-curve may be more appropriate.
