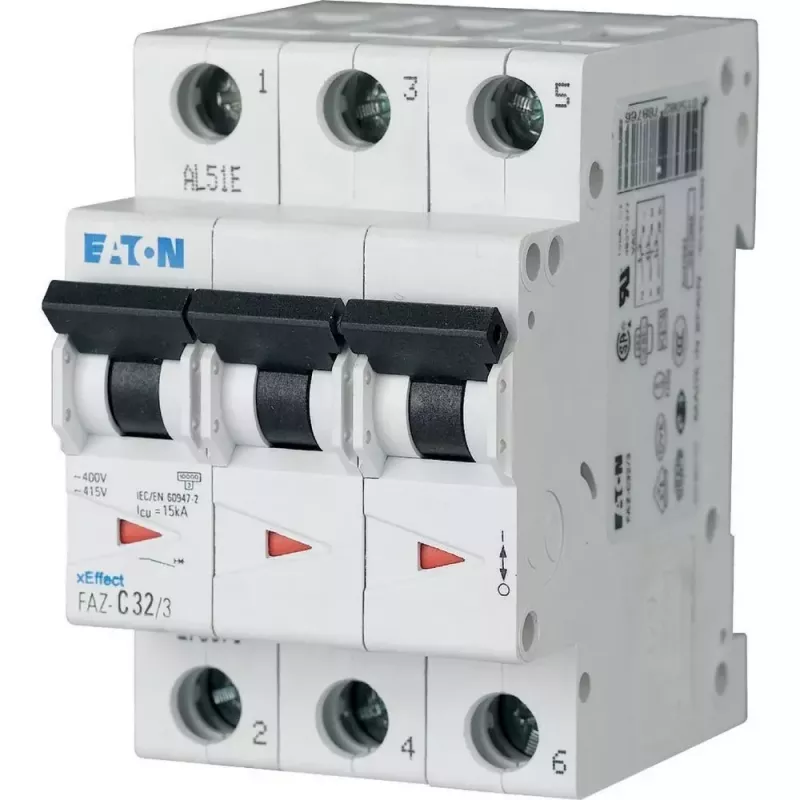

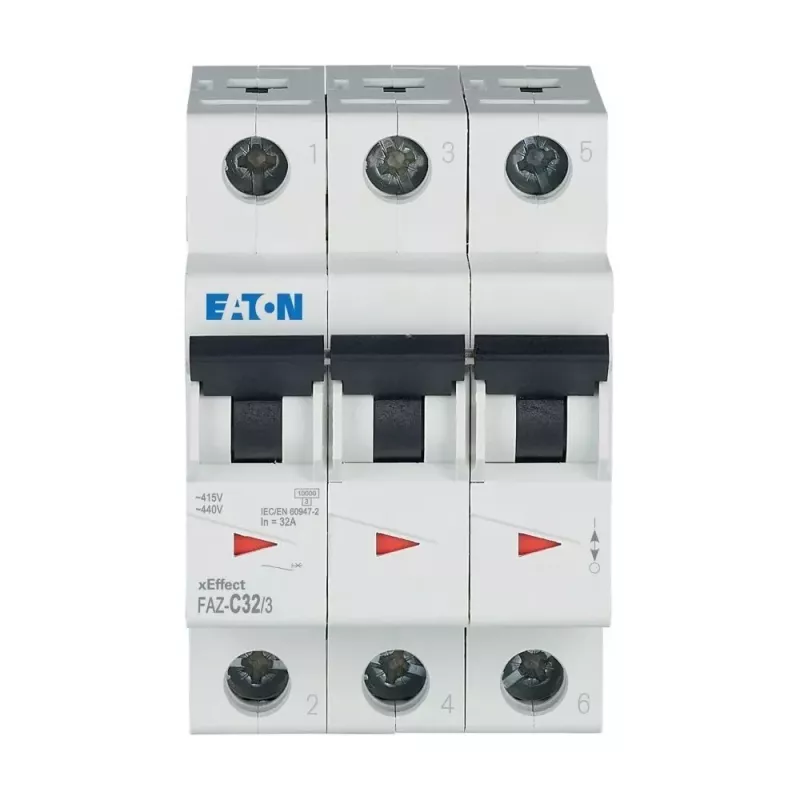

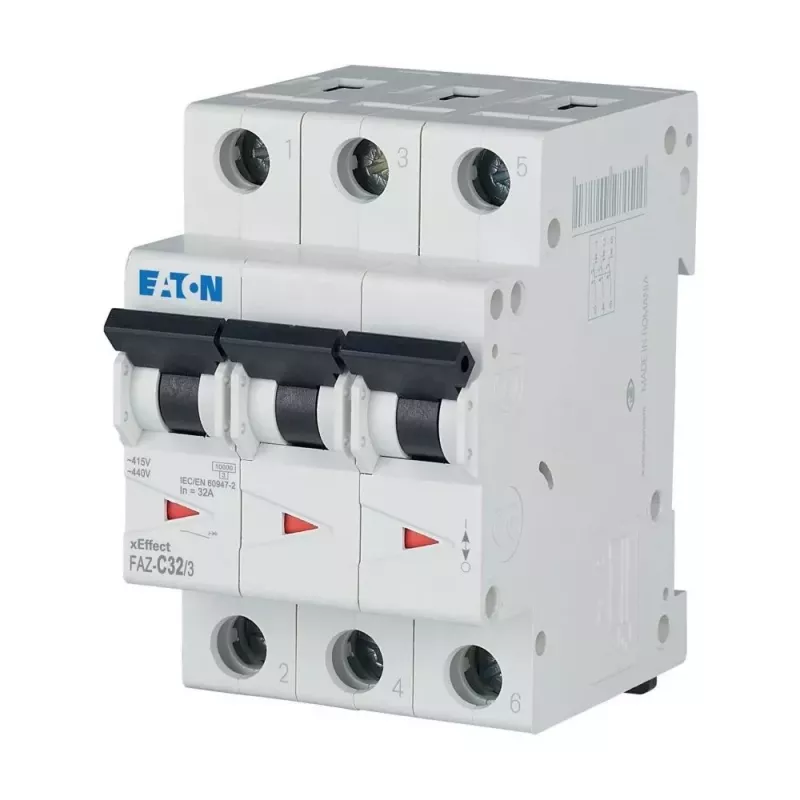

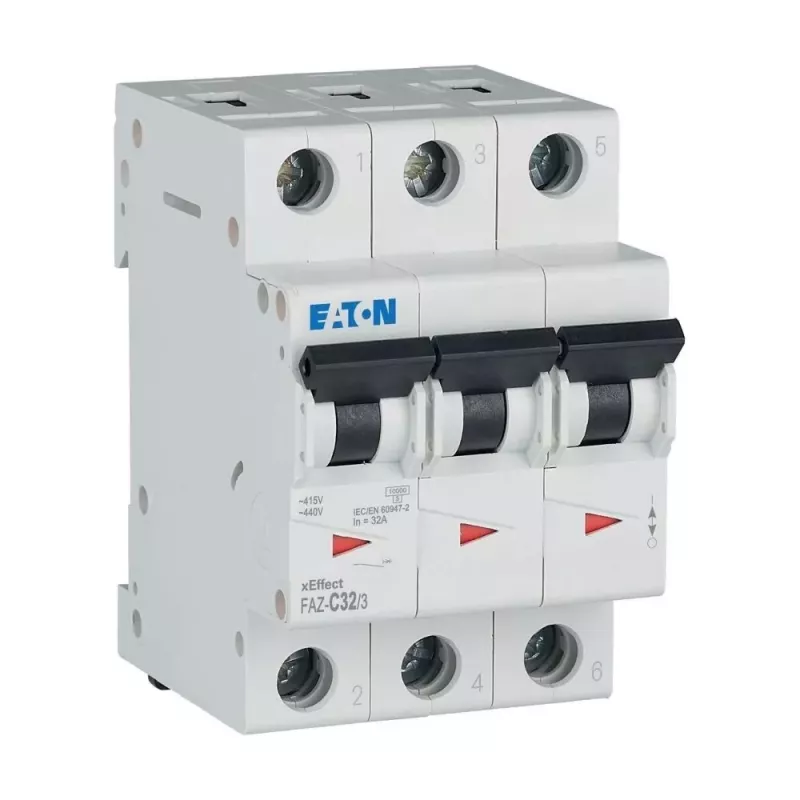

Eaton FAZ-C32/3 istič typ C, 32 A, 3-pólový, 10 kA, DIN lišta 278876

The Eaton FAZ-C32/3 is a 3-pole miniature circuit breaker engineered for reliable overcurrent protection in commercial and industrial electrical installations. Its Type C tripping characteristic ensures dependable operation for circuits with moderate inrush currents, such as lighting systems and control circuits, while the 32 A rating suits a wide range of distribution applications. With a 10 kA breaking capacity and compliance with IEC/EN 60898-1, this MCB provides robust protection against short circuits and overloads.

Highlights

• 3-pole design for three-phase circuits
• Type C tripping curve for general-purpose protection
• Rated current of 32 A
• 10 kA short-circuit breaking capacity
• DIN rail mounting for easy installation

In daily use

Installed on a standard DIN rail, the FAZ-C32/3 offers straightforward wiring with terminals accepting conductors up to 25 mm². Its compact 3-module width (52.5 mm) saves space in distribution boards, while the IP20 terminal protection ensures safe operation in dry environments. The breaker is designed for frequent switching, with high electrical and mechanical endurance for long service life.

Full specifications

• Number of poles: 3
• Rated current: 32 A
• Tripping characteristic: C
• Rated operational voltage: 230/400 V AC
• Rated insulation voltage: 440 V
• Rated short-circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal capacity: 1-25 mm²
• Degree of protection: IP20 (terminals)
• Energy limitation class: 3
• Standard: IEC/EN 60898-1
• Operating temperature range: -25 to +75 °C
• Electrical endurance: ≥ 10,000 operations
• Mechanical endurance: ≥ 20,000 operations
• Module width: 3 TE (52.5 mm)

Final note

Choose the Eaton FAZ-C32/3 for dependable circuit protection in demanding electrical environments.
