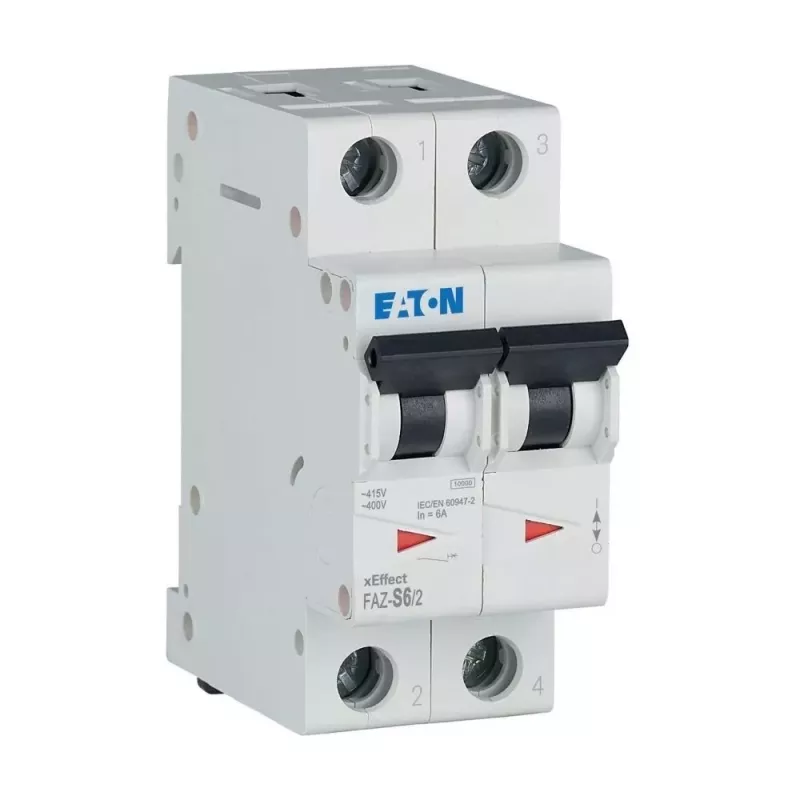

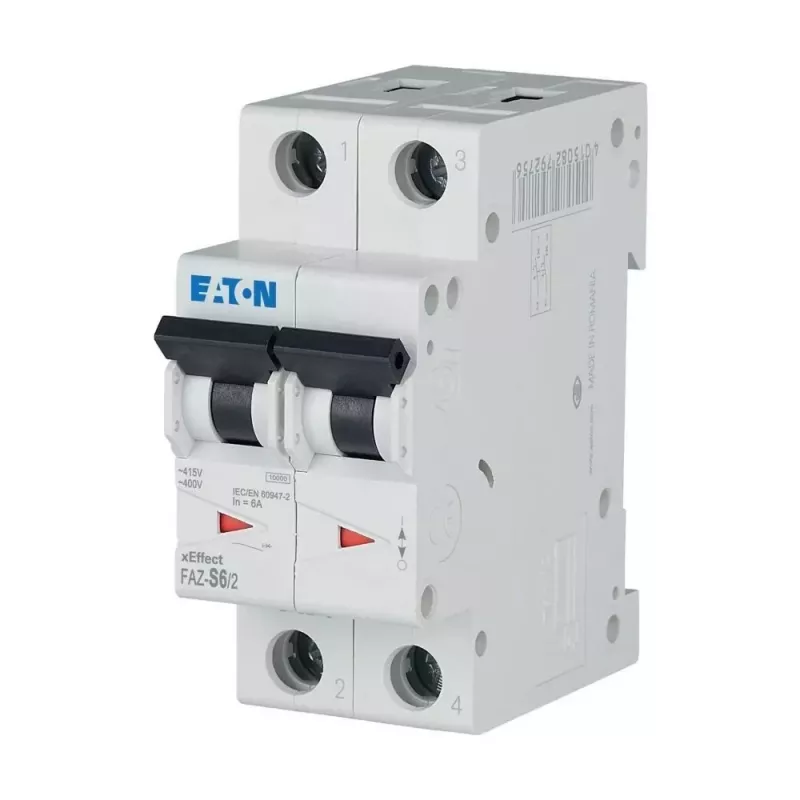

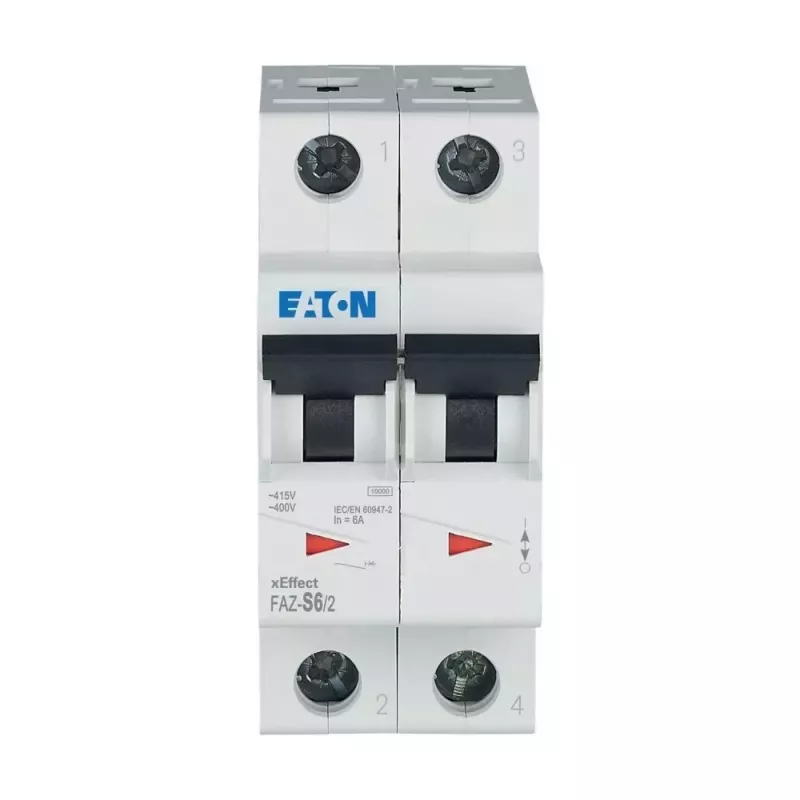

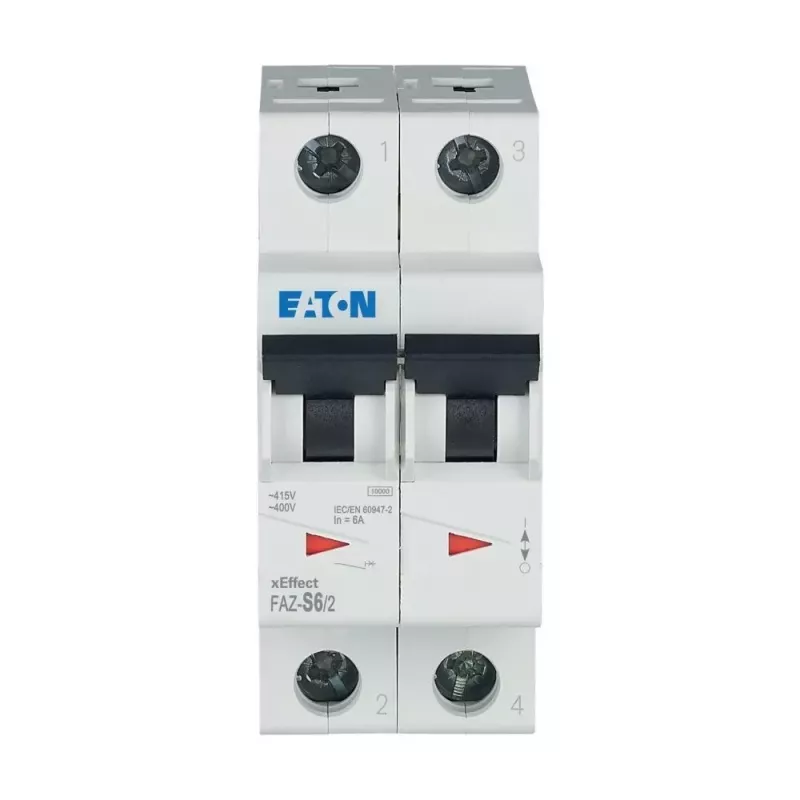

Eaton FAZ-S6/2 istič typ S 6A 2-pólový 6kA 278809

The Eaton FAZ-S6/2 stands out with its S-characteristic tripping curve, tailored for protecting semiconductor circuits and control transformers where inrush currents demand precise, delayed response. This 2-pole miniature circuit breaker (MCB) delivers reliable 6 A protection in a compact 2 TE (35 mm) DIN rail module, making it a dependable choice for industrial and commercial distribution boards.

Highlights

• S-characteristic for semiconductor and control circuit protection
• 2-pole design with 6 A rated current
• 6 kA breaking capacity at 230/400 V AC
• Compact 2 TE (35 mm) width saves panel space
• Screw terminals accept 1-25 mm² conductors

In daily use

Installation is straightforward on standard DIN rails, and the IP40 front protection (IP20 at terminals) suits typical distribution environments. The breaker operates reliably across a wide temperature range from -25 to +75 °C, ensuring consistent performance in demanding conditions. Its energy limiting class 3 helps minimize let-through energy during faults, protecting downstream equipment.

Full specifications

• Number of poles: 2
• Rated current (In): 6 A
• Tripping characteristic: S
• Rated voltage (Ue): 230/400 V AC
• Rated breaking capacity (Icn): 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Degree of protection (terminals): IP20
• Degree of protection (front): IP40
• Terminal type: Screw terminals
• Terminal capacity: 1-25 mm² (solid/stranded)
• Energy limiting class: 3
• Pollution degree: 2
• Operating temperature range: -25 to +75 °C
• Standards: IEC/EN 60898-1
• Module width: 2 TE (35 mm)

Final note

Engineered for precision protection in control circuits, the FAZ-S6/2 combines proven Eaton quality with the specific S-curve needed for sensitive semiconductor loads.
