Eaton FL4-3 príruba rozvádzača, sivý polykarbonát, 329 x 23 x 116 mm 017236

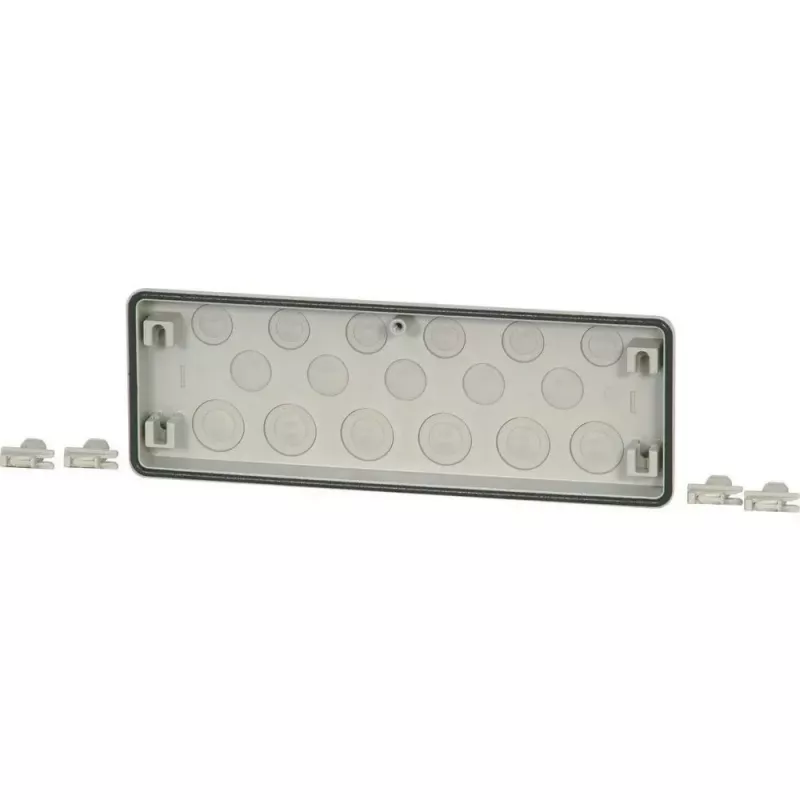

In industrial control panels, cable entry points are often vulnerable to dust, moisture, and mechanical impact. The Eaton FL4-3 control cabinet flange provides a robust solution for routing cables into CI-K enclosures while maintaining a high protection rating. Made from grey polycarbonate (RAL 7035), this flange measures 329 mm in length, 23 mm in width, and 116 mm in height, and is designed for screw-on mounting. It is suitable for use in machine building, plant engineering, and electrical distribution applications where reliable cable management is essential.

Key specifications

• Product type: Control cabinet flange
• Material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Dimensions: 329 mm (L) x 23 mm (W) x 116 mm (H)
• Protection rating: IP65 (when installed)
• Impact resistance: IK08
• Operating temperature range: -40 to +80 °C
• Flame retardancy: Self-extinguishing
• Halogen-free: Yes
• UV resistance: Yes
• Chemical resistance: Good
• Standards: IEC/EN 62208, VDE 0660 Part 500
• Compatibility: Eaton CI-K enclosures
• Mounting type: Screw-on

Why choose it

The FL4-3 flange is engineered for durability and safety. Its polycarbonate construction offers excellent impact resistance and self-extinguishing properties, making it suitable for demanding industrial environments. The IP65 rating ensures protection against dust and water jets, while UV and chemical resistance extend its service life even in harsh conditions. Compliance with international standards guarantees reliable performance and compatibility with Eaton's CI-K enclosure series.

Ideal use cases

• Routing power and control cables into industrial control cabinets
• Protecting cable entry points in machinery and equipment
• Upgrading existing enclosures to improve ingress protection
• Applications requiring halogen-free and flame-retardant components

Good to know

The flange is designed for screw-on installation, allowing for quick and secure mounting. Its grey colour (RAL 7035) matches standard industrial enclosures, ensuring a professional appearance. The product is halogen-free, contributing to safer fire behaviour and reduced toxic gas emissions in the event of a fire.
