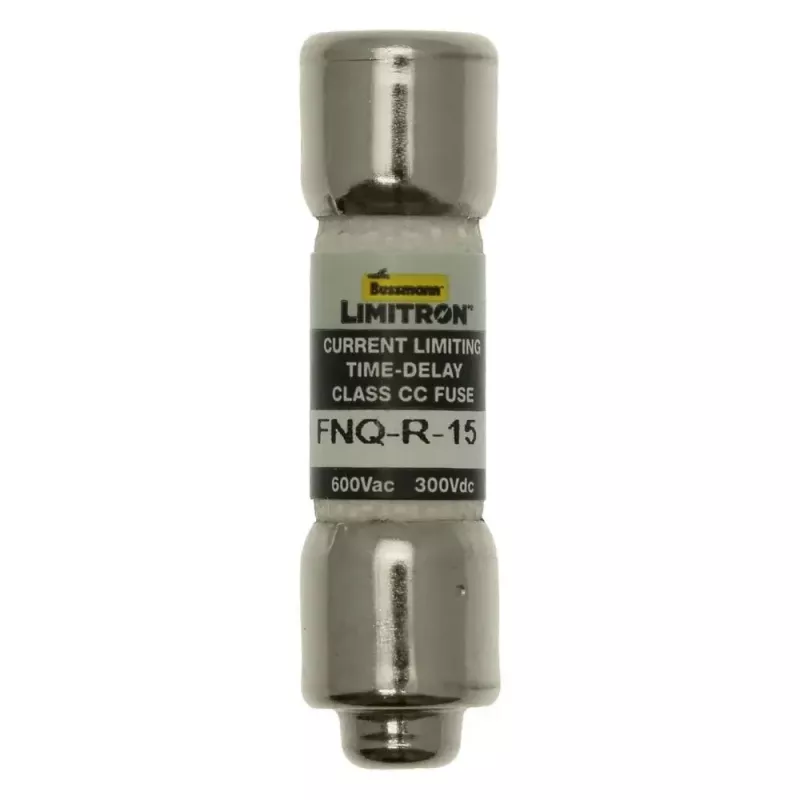

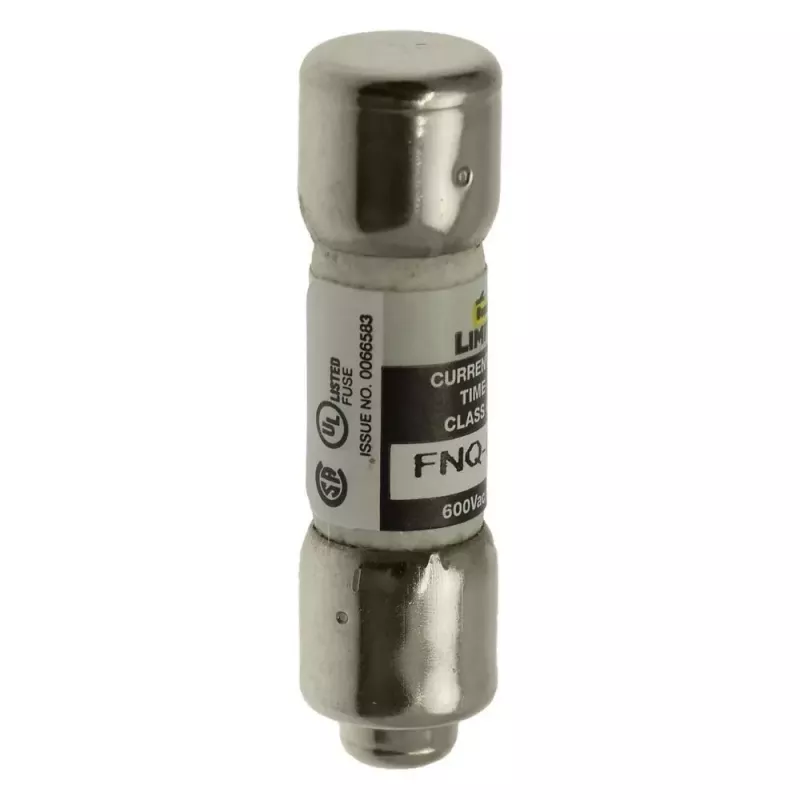

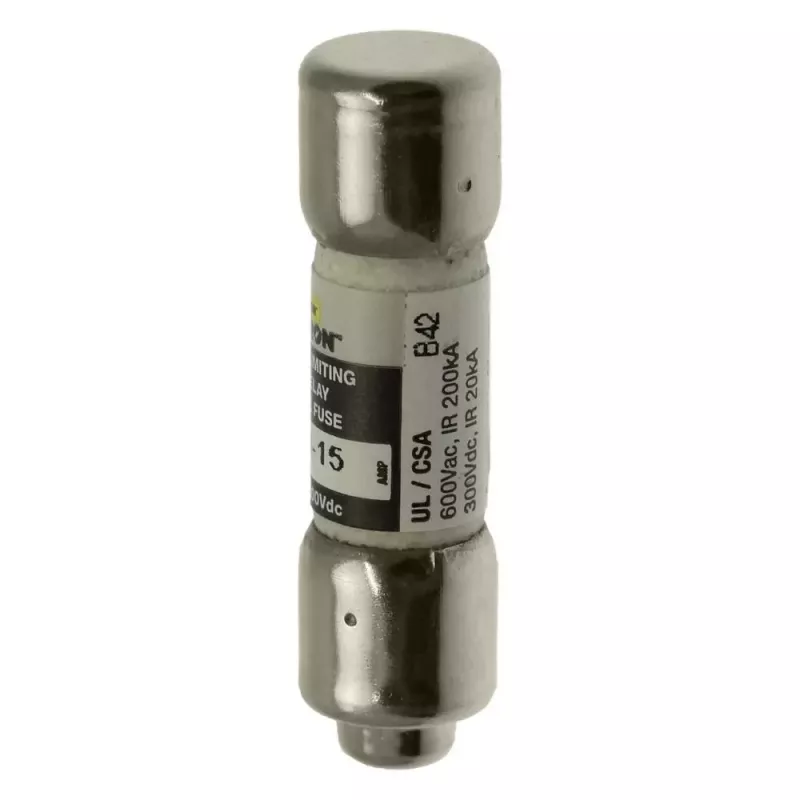

Eaton FNQ-R-15 pomalá poistka 15A 600V AC/300V DC Class CC balenie 10 ks

With an interrupting rating of 200 kA at 600 V AC, the Eaton FNQ-R-15 fuse provides robust protection for branch circuits and control circuits. This time-delay Class CC fuse handles inrush currents while safeguarding sensitive components.

Overview

The Eaton FNQ-R-15 is a 15 A, 600 V AC / 300 V DC time-delay fuse. Its Class CC design and ferrule mounting make it suitable for a wide range of industrial and commercial applications. The fuse is current-limiting and features a melamine body for durability. Each pack contains 10 fuses.

What stands out

• High interrupting rating: 200 kA at 600 V AC
• Time-delay characteristic prevents nuisance blowing
• Current-limiting design protects downstream equipment
• Compact 13/32" x 1-1/2" size fits standard Class CC fuse holders
• UL Listed and CSA Certified

Technical details

• Current rating: 15 A
• Voltage rating: 600 V AC / 300 V DC
• Interrupting rating: 200 kA AC, 20 kA DC
• Fuse type: Time-delay
• Class: CC
• Number of poles: 1
• Mounting type: Ferrule
• Body material: Melamine
• Terminal type: Ferrule
• Dimensions: 10.3 mm diameter x 38.1 mm length
• Quantity per pack: 10

Our verdict

The Eaton FNQ-R-15 delivers reliable, high-performance circuit protection in a compact package. Its time-delay and current-limiting features make it a solid choice for demanding applications.
