Eaton izolačný kryt zbernice 12-30x5 mm, dĺžka 1 m, sivý BBC-FL5 (107173)

Protect busbars from 12 to 30 mm wide and 5 mm thick with this 1-meter grey PVC insulation cover. It clips on securely to prevent accidental contact in low-voltage switchgear and control panels.

Overview

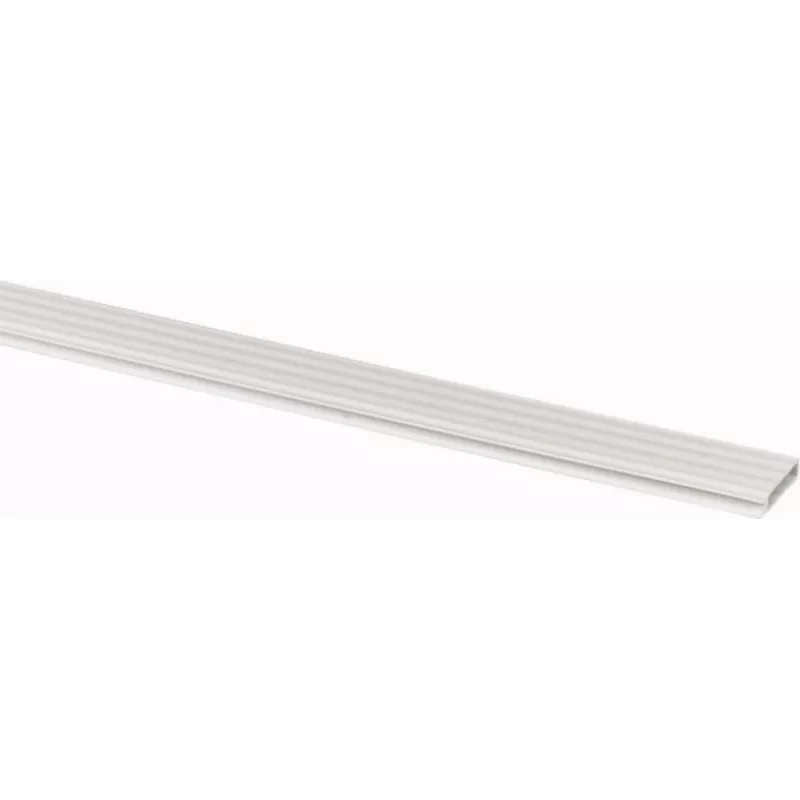

The Eaton BBC-FL5 busbar insulation cover is a semi-rigid PVC profile designed to insulate and protect busbars in electrical distribution systems. It accommodates busbar widths from 12 mm to 30 mm and a thickness of 5 mm, providing reliable electrical insulation and protection against accidental contact.

What stands out

• Compatible with busbars 12–30 mm wide and 5 mm thick
• 1-meter length for flexible installation
• Durable grey PVC material with good chemical resistance
• Clip-on mounting for quick and secure installation
• Suitable for low-voltage applications up to 1000 V AC / 1500 V DC

Technical details

• Product type: Busbar insulation cover
• Busbar width compatibility: 12 - 30 mm
• Busbar thickness compatibility: 5 mm
• Length: 1000 mm
• Material: PVC
• Colour: Grey
• Mounting method: Clip-on / slide-on
• Operating temperature: up to 70 °C
• Insulation voltage: suitable for low-voltage applications (up to 1000 V AC / 1500 V DC)

Our verdict

A practical and reliable insulation solution for busbar systems, offering easy installation and robust protection in low-voltage switchgear.
