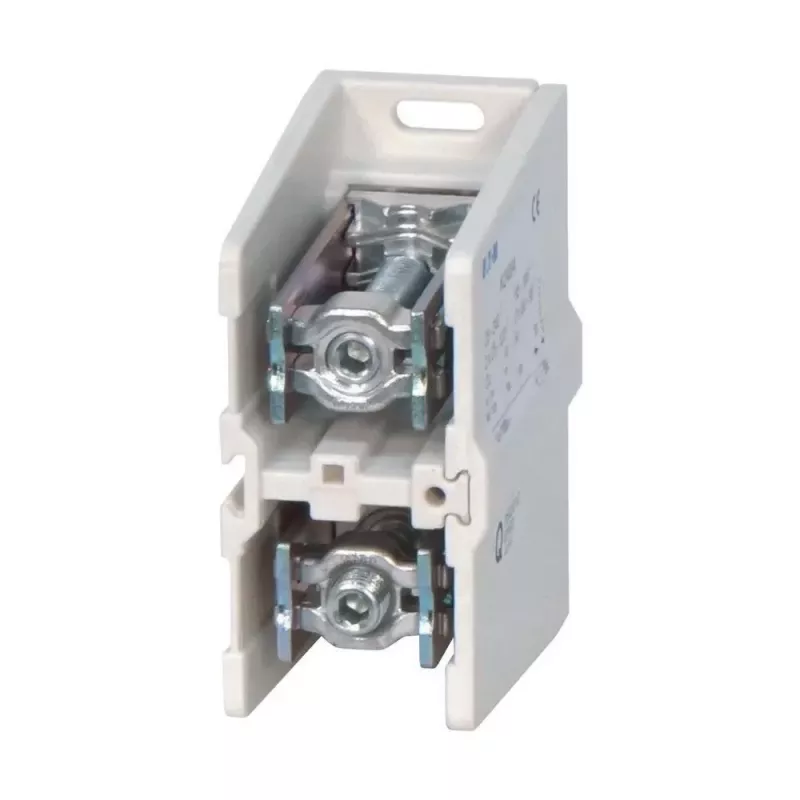

Eaton K240/1 svorkový blok 240 mm² 1-pólový skrutková prípojka 091458

The Eaton K240/1 terminal block stands out with its high current rating of 400 A and large conductor cross-section support up to 240 mm², making it suitable for demanding power distribution tasks. Its screw connection ensures a secure and durable electrical contact.

Highlights

• Rated current: 400 A
• Rated voltage: 1000 V
• Conductor cross-section: 25 - 240 mm² (flexible and solid)
• Screw connection with 25 Nm torque
• Mounting on DIN rail TS35 or direct mounting

In daily use

This terminal block is designed for main circuit connections in industrial environments. The polyamide insulation provides mechanical strength and electrical insulation, while the copper contact ensures low resistance. The grey/black colour blends into standard control cabinets.

Full specifications

• Number of poles: 1
• Connection type: Screw connection
• Mounting type: DIN rail (TS35) / Direct mounting
• Conductor cross-section (flexible): 25 - 240 mm²
• Conductor cross-section (solid): 25 - 240 mm²
• Insulation material: Polyamide (PA)
• Contact material: Copper
• Degree of protection: IP20
• Operating temperature range: -25 to +100 °C
• Flammability rating: UL94 V-0
• Number of connections per pole: 1
• Type of connection: Main circuit

Final note

The Eaton K240/1 is a robust terminal block for high-current applications, compliant with IEC/EN 60947-7-1, UL, and CSA standards.
