Eaton KLV-48UPP-F rozvádzač do omietky 4-radový 48 modulov, biela 178804

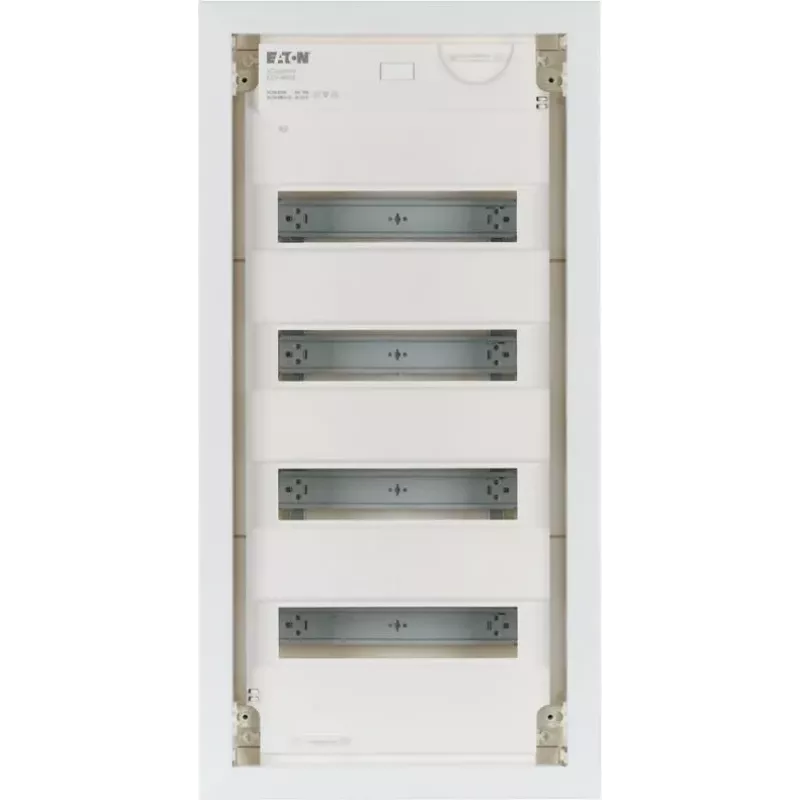

The Eaton KLV-48UPP-F is a flush-mounted distribution board engineered for residential and commercial electrical installations. With a 4-row layout providing 48 module units (12 per row), it accommodates extensive circuit configurations. The enclosure is made of halogen-free plastic, while the steel sheet door is finished in white RAL 9010. It includes four DIN rails and QuickConnect N/PE terminals for efficient wiring. The door is reversible, opening up to 120 degrees, and the unit is rated for up to 63 A at 400 V AC.

Overview

This distribution board is designed for flush mounting, offering a clean, integrated appearance. It meets DIN VDE 0603-1 and DIN 43871 standards. The pre-punched knockouts on top, bottom, and sides simplify cable entry. The board provides IP30 protection with the door closed and is classified as protection class II (double insulated).

What stands out

• Four rows with 12 module units each, totaling 48 TE
• Halogen-free plastic housing with steel door in white RAL 9010
• QuickConnect N/PE terminals for fast, secure connections

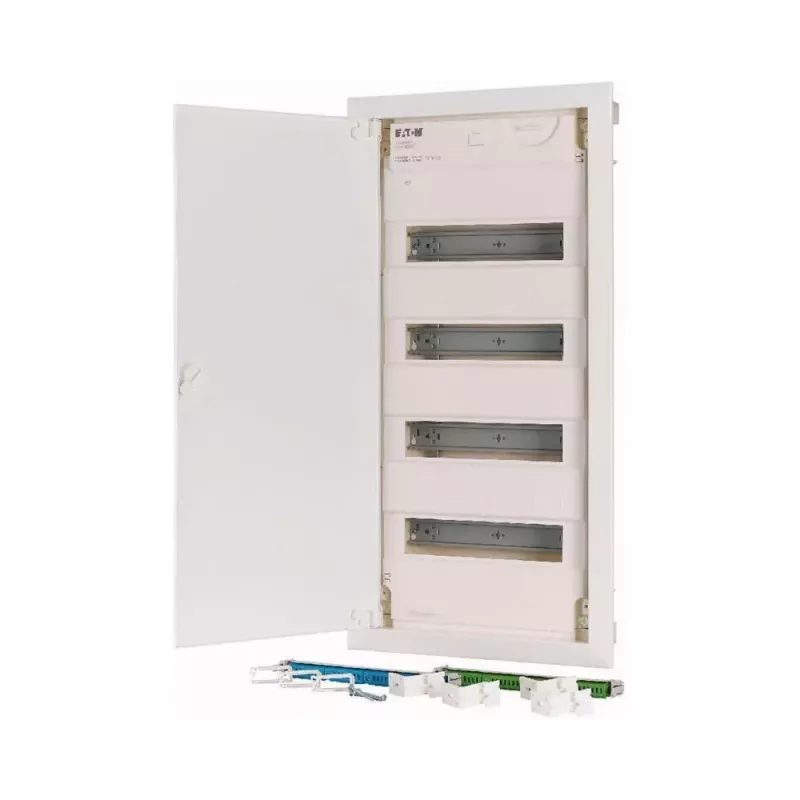

• Reversible door with 120° opening angle
• Pre-punched knockouts for flexible cable entry

Technical details

• Mounting type: Flush-mounted (UP)
• Number of rows: 4
• Total module units: 48 (12 TE per row)
• Housing material: Plastic (halogen-free)
• Door material: Steel sheet, opaque, white
• Protection class: IP30 (with door closed)
• Rated current: up to 63 A
• Rated voltage: 400 V AC
• Glow wire test: 850 °C
• Installation depth: 90 mm

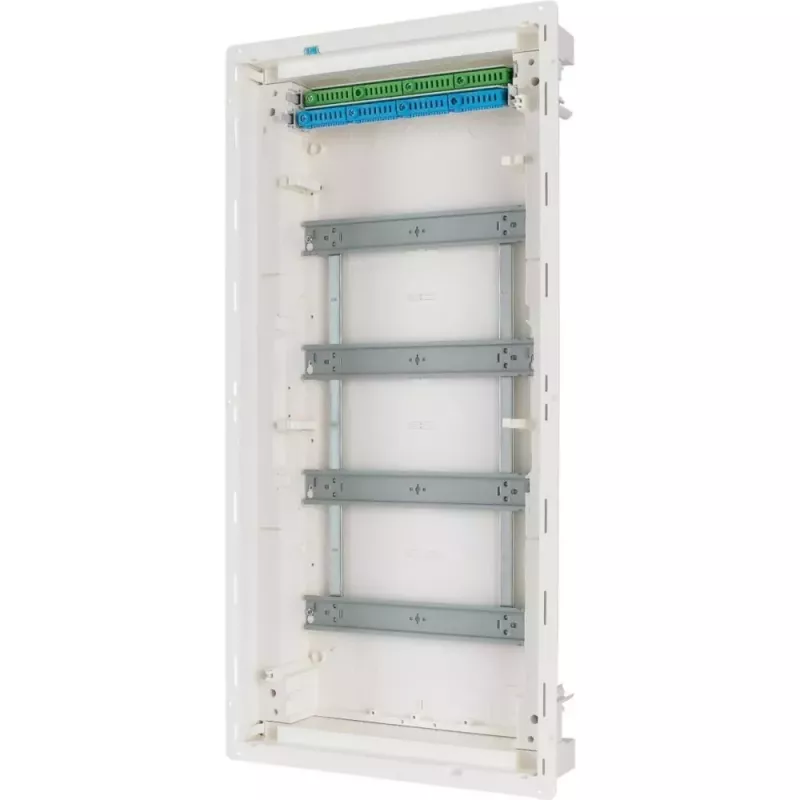

• DIN rails: 4 included
• N/PE terminals: QuickConnect
• Standards: DIN VDE 0603-1, DIN 43871
• Electrical protection class: Class II (double insulated)

Our verdict

The Eaton KLV-48UPP-F combines generous capacity with practical features like QuickConnect terminals and a reversible door, making it a solid choice for flush-mounted installations requiring up to 48 modules.
