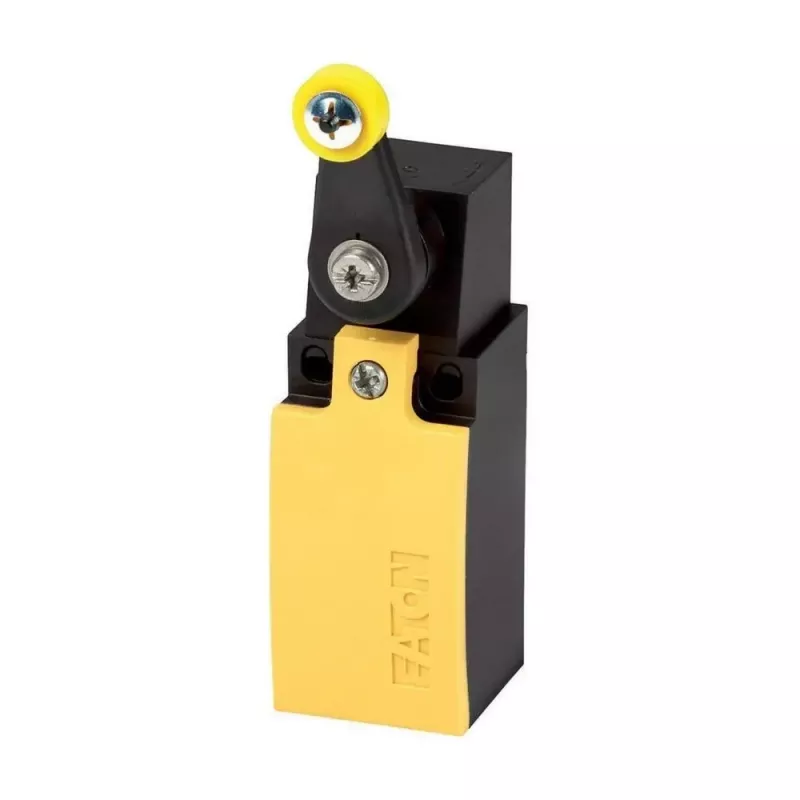

Eaton koncový spínač 400 V AC 4 A valčeková páka tlačný LS-S11S/RL IP67 106802

This Eaton limit switch stands out with its rugged IP67-rated thermoplastic housing and a swivel roller lever actuator, making it a dependable choice for position sensing in harsh industrial environments. The momentary switching action and 2-pole snap-action contact element ensure reliable operation even in demanding applications.

Highlights

• Actuator type: Roller lever (swivel roller lever)
• Contact configuration: 1 NO + 1 NC
• Max. operating voltage: 400 V AC
• Max. operating current: 4 A
• Protection degree: IP67
• Housing material: Thermoplastic
• Connection type: Screw terminals
• Cable entry: M20 x 1.5

In daily use

The LS-S11S/RL is designed for base mounting and offers a mechanical life of 10 million operations, ensuring long-term reliability. Its operating temperature range from -25 to +70 °C allows use in a wide variety of industrial settings.

Full specifications

• Switching action: Momentary
• Number of poles: 2-pole
• Switching element: Snap-action
• Electrical life: 0.5 million operations
• Mounting type: Base mounting
• Standards: IEC/EN 60947-5-1
• Certifications: CE, UL, CSA

Final note

With its robust construction and versatile actuator, this limit switch is a solid choice for automation and control applications where reliability is paramount.
