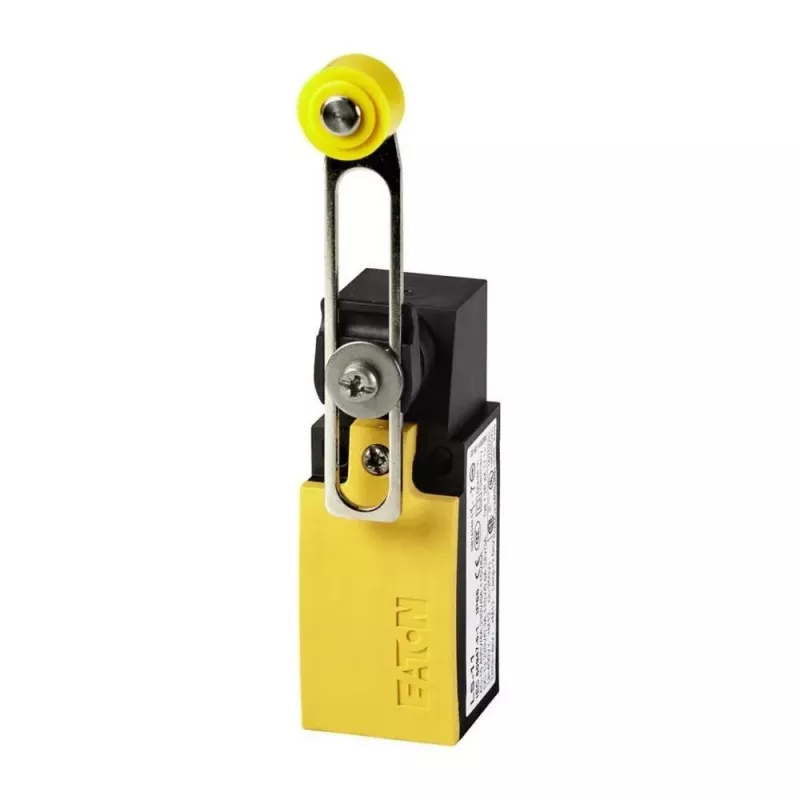

Eaton LS-Titan polohový spínač LSM-11/RLA s nastaviteľnou valčekovou páčkou 266148

The Eaton LS-Titan position switch LSM-11/RLA is a robust limit switch engineered for precise position detection in industrial applications. Its adjustable roller lever actuator provides flexible mounting and reliable actuation, while the snap action switching principle ensures crisp, repeatable operation. Housed in a die-cast aluminium enclosure with IP66/IP67 protection, this switch withstands harsh environments and delivers long service life.

Advantages

The adjustable roller lever can be rotated 360° and its length adjusted, allowing the switch to be tailored to a wide range of mechanical setups. The snap action mechanism guarantees fast and consistent switching, reducing contact bounce and improving control system reliability. With a mechanical life exceeding 10 million operations, maintenance intervals are minimized, lowering total cost of ownership.

Suitable for

• Machine tools and production lines requiring precise end-position detection
• Conveyor systems and material handling equipment
• Automated assembly and packaging machinery
• Industrial environments with dust, moisture, or washdown requirements

Key specifications

• Actuator type: adjustable roller lever
• Contact configuration: 1 NO + 1 NC
• Switching principle: snap action
• Rated operational current: 6 A at 230 V AC (AC-15), 3 A at 24 V DC (DC-13)
• Rated operational voltage: max. 250 V AC/DC
• Housing material: die-cast aluminium
• Protection class: IP66, IP67
• Cable entry: 1 x M20 x 1.5
• Connection type: screw terminals
• Operating temperature: -25 to +70 °C
• Mechanical life: > 10 million operations
• Electrical life: > 100,000 operations
• Mounting: base mounting with 2 x M4 screws
• Series: LS-Titan

Recommendations

For applications demanding high mechanical endurance and environmental resistance, the LSM-11/RLA offers a dependable solution. Its adjustable actuator and robust construction make it a versatile choice for OEMs and system integrators seeking a long-lasting position switch.
