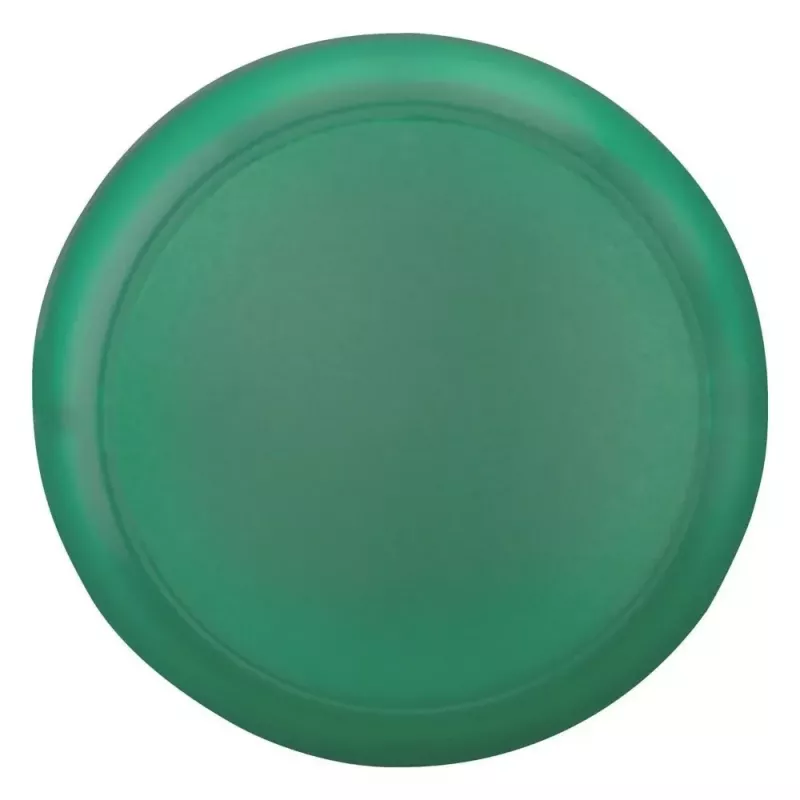

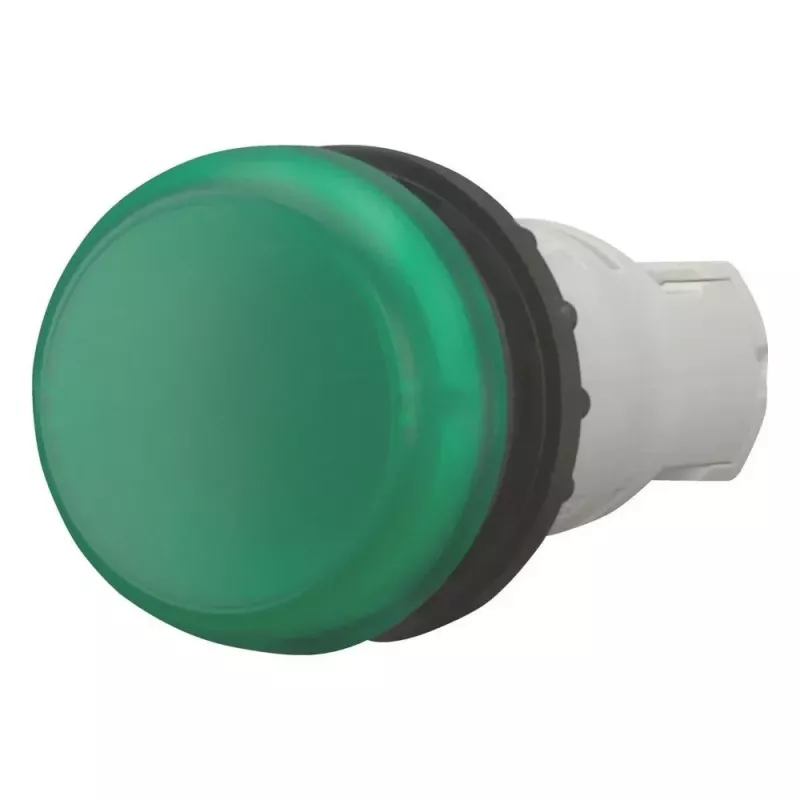

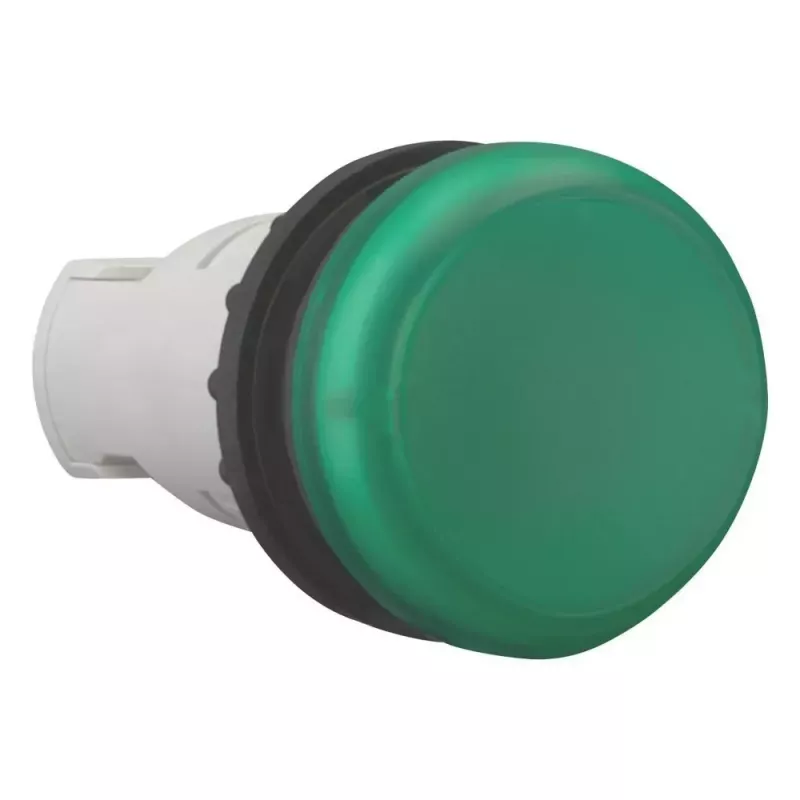

Eaton M22-LC-G LED prvok zelený 250V AC/DC 216909

LED element for Eaton M22 series control devices, providing bright green illumination with a rated operational voltage of 250 V AC/DC. Its long LED lifespan exceeds 100,000 hours at 25°C, ensuring reliable status indication in industrial applications.

Advantages

High visibility green LED with low current consumption below 10 mA. Compatible with 22.5 mm mounting diameter front elements, offering flexible integration into existing M22 systems.

Suitable for

• Status indication in control panels
• Industrial automation and machinery
• Applications requiring durable LED signaling

Key specifications

• Light colour: Green
• Rated operational voltage: 250 V AC/DC
• Lamp type: LED
• Mounting diameter compatibility: 22.5 mm
• Terminal type: Screw terminals
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Current consumption: < 10 mA
• LED lifespan: > 100,000 hours at 25°C
• Housing material: Plastic

Recommendations

For use with Eaton M22 series front elements to achieve IP66, IP67, or IP69K protection when properly assembled.
