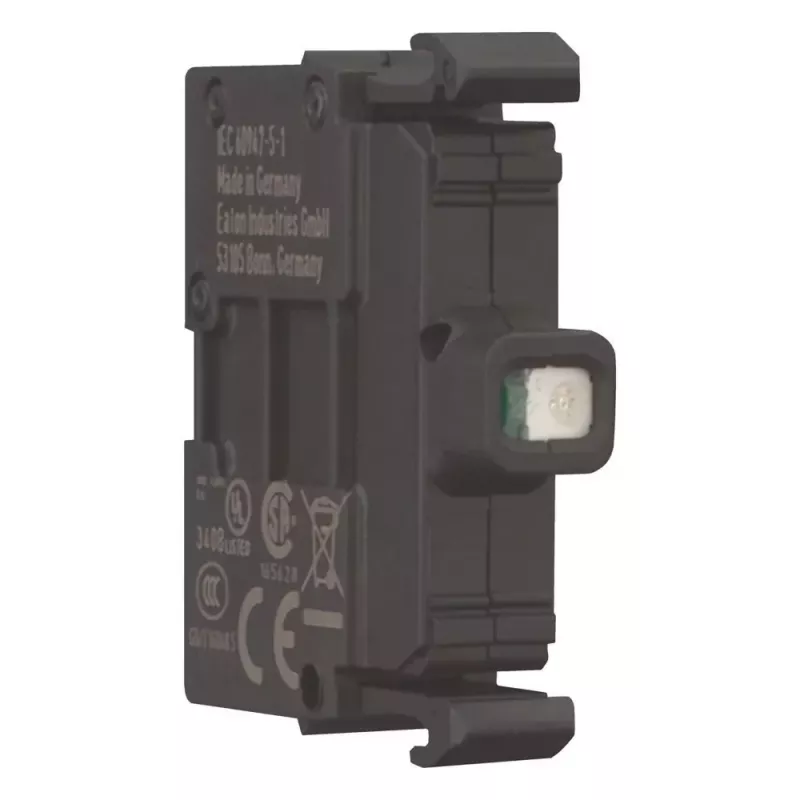

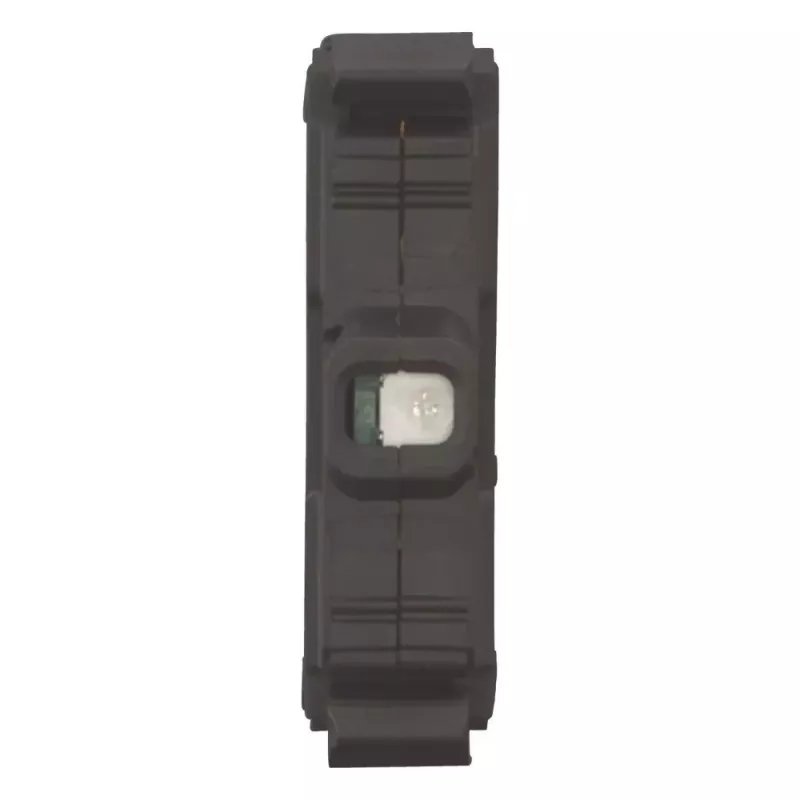

Eaton M22-LED-B LED prvok, modrý, 12-30V AC/DC 218057

Industrial control panel builders and maintenance technicians use the Eaton M22-LED-B as a direct replacement or retrofit LED element for Eaton M22 series pushbuttons and selector switches. It provides bright blue illumination for status indication in machinery, control cabinets, and automation systems.

Key specifications

• Light colour: Blue
• Supply voltage: 12-30 V AC/DC
• Light source: LED
• Connection: Screw terminals
• Rated operational current: < 20 mA
• Power consumption: < 0.5 W
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Terminal protection degree: IP20
• Housing material: Plastic
• Compatibility: Eaton M22 control devices (pushbuttons, selector switches)
• Mounting: Base mounting
• Lifetime: > 100,000 hours

Why choose it

The M22-LED-B offers long service life and low energy consumption, making it a reliable choice for continuous indication in industrial environments. Its wide voltage range allows use with both AC and DC control circuits without additional components.

Ideal use cases

• Status indication on control panels
• Replacement for worn or failed LED elements in M22 devices
• New installations requiring blue indicator lights

Good to know

The element mounts directly into the base of compatible Eaton M22 actuators. Screw terminals ensure secure wiring. The plastic housing is designed for standard industrial conditions.
