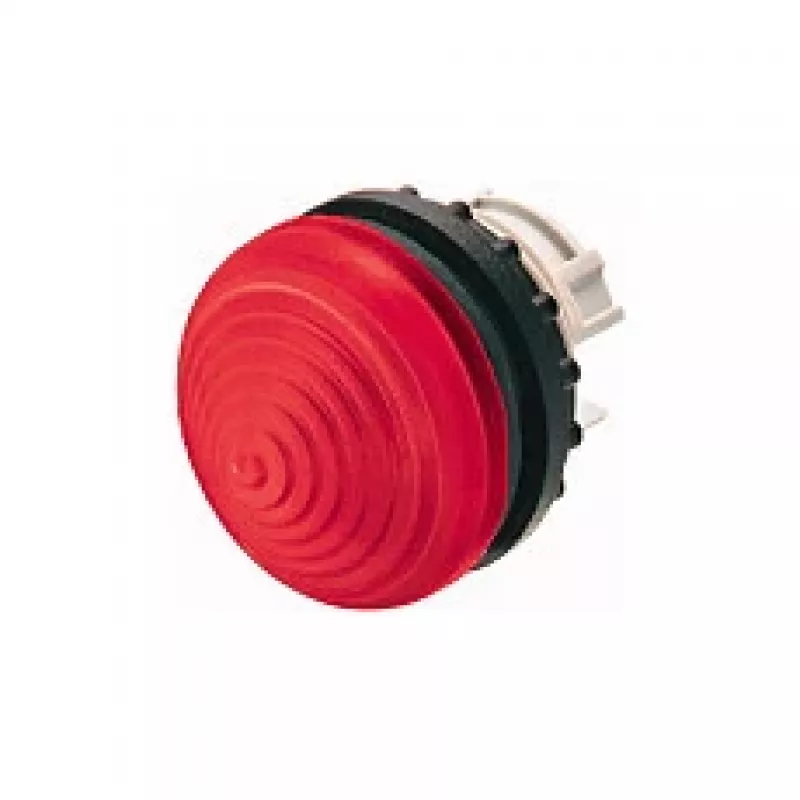

EATON M22-LH-R červená vysoká horná časť signálneho svetla

Industrial control panels demand clear, immediate status signaling, and the EATON M22-LH-R red high indicator light head delivers exactly that. Its raised red lens ensures excellent visibility from multiple angles, allowing operators to quickly identify machine states even in busy environments.

Advantages

With a front protection rating of IP66, IP67, and IP69K, this indicator head withstands dust, temporary submersion, and high-pressure washdowns, making it ideal for demanding applications. The plastic bezel and lens offer durability while keeping the unit lightweight. It is designed for use with separate M22-LED illumination elements, allowing flexibility in voltage and color intensity.

Suitable for

• Industrial control panels and machinery status indication
• Food and beverage processing equipment requiring hygienic design
• Outdoor installations exposed to weather and cleaning processes
• Conveyor systems, packaging machines, and assembly lines

Key specifications

• Series: RMQ-Titan (M22)
• Lens design: Raised (high)
• Lens color: Red
• Mounting diameter: 22.5 mm
• Bezel material: Plastic
• Lens material: Plastic
• Protection degree (front): IP66, IP67, IP69K
• Protection degree (rear): IP20 (with appropriate contact/LED element)
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200
• Compatibility: For use with M22-LED... illumination elements
• Mounting type: Panel mount
• Number of positions: 1
• RoHS compliant: Yes

Recommendations

For optimal performance, pair with EATON M22-LED illumination elements and appropriate contact blocks.
