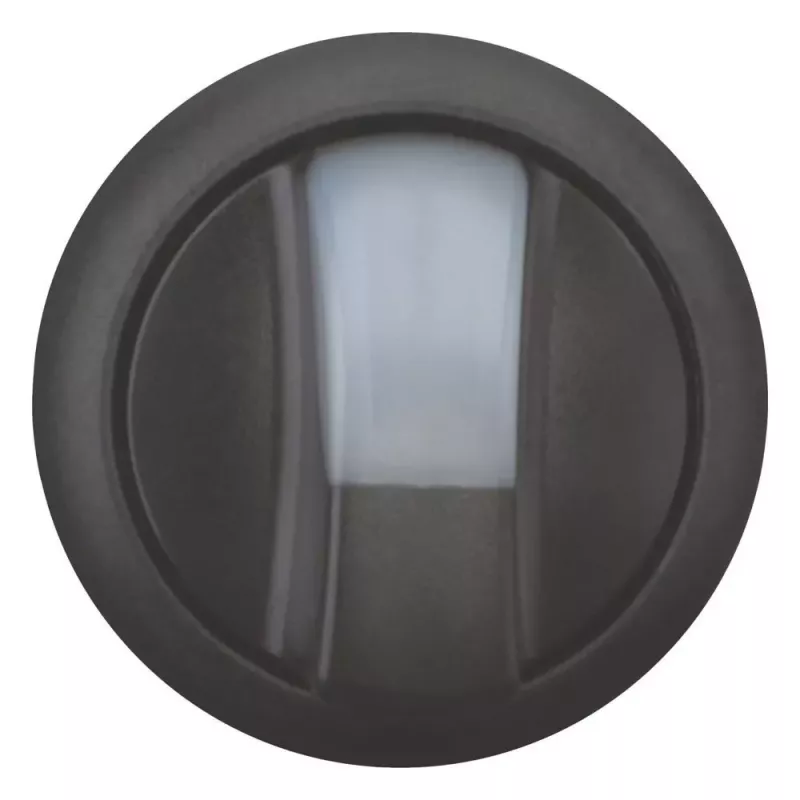

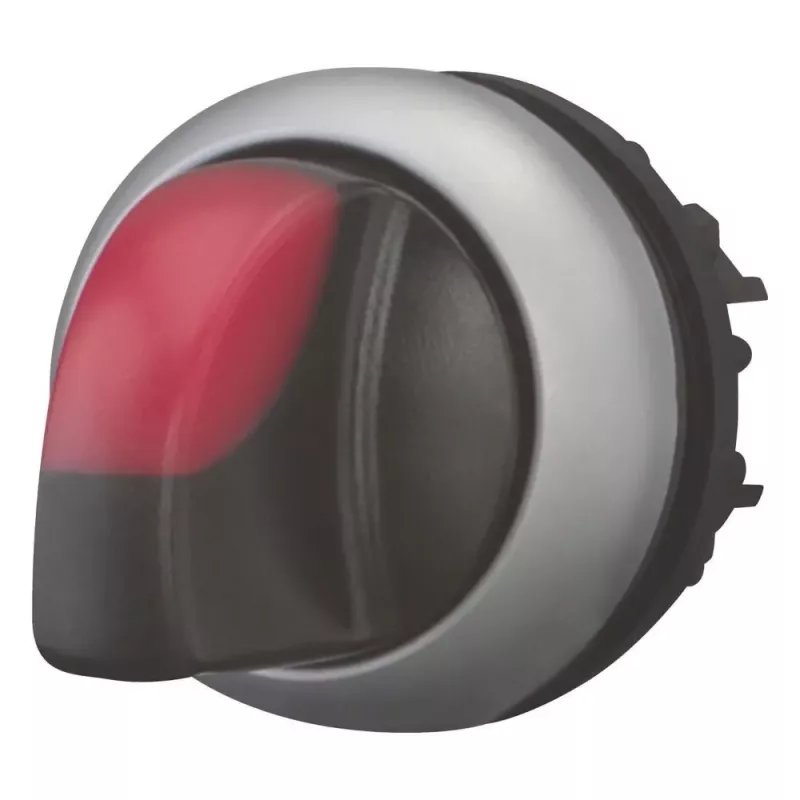

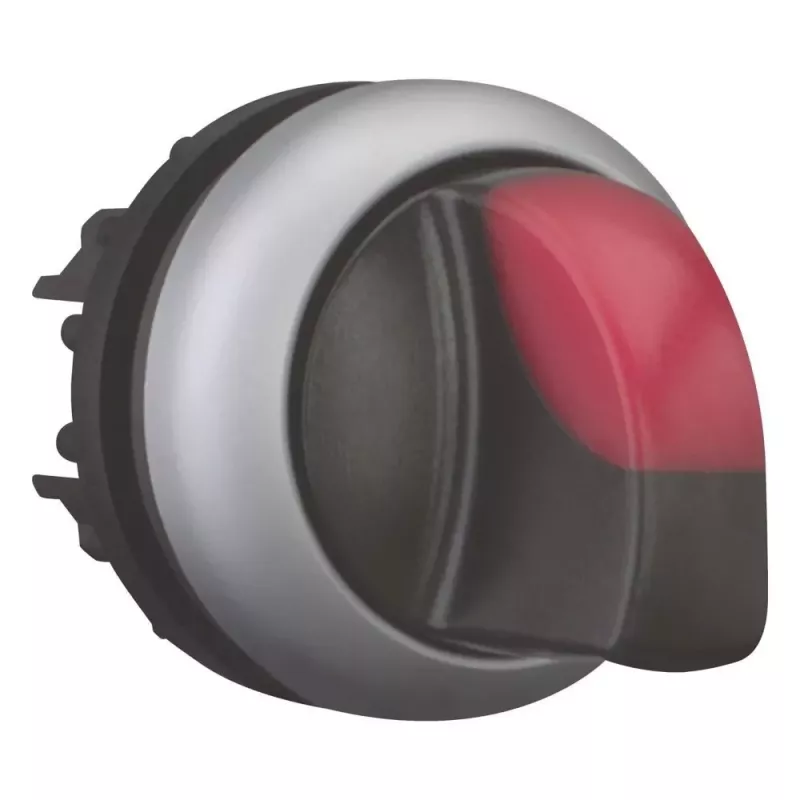

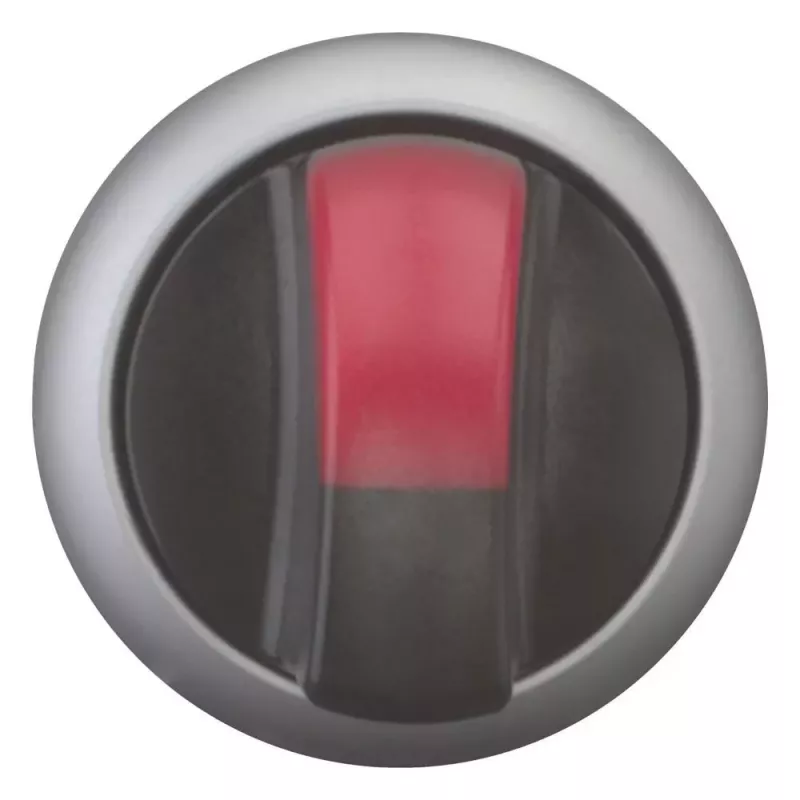

Eaton M22-WLK3-R osvetlený otočný spínač, 3 pozície, červený otočná rukoväť, 22,5 mm

Selector switch actuator for Eaton M22 series, featuring a red illuminated knob with 3 maintained positions and 2 x 45° switching angle. Designed for front panel mounting with a 22.5 mm hole, it provides clear visual status indication and reliable switching in industrial control applications.

Advantages

Robust plastic construction with high mechanical durability exceeding 1,000,000 operations. The illuminated red knob ensures visibility even in low-light conditions. Front protection rating IP66, IP67, IP69K makes it suitable for demanding environments.

Suitable for

• Industrial control panels and machinery
• 3-position selector switch applications
• Eaton M22-series contact blocks and LED elements

Key specifications

• Product type: Selector switch actuator
• Actuator type: Knob / Toggle
• Number of positions: 3
• Switching action: Maintained (latching)
• Switching angle: 2 x 45°
• Illumination: Yes
• Actuator colour: Red
• Bezel colour: Black
• Mounting hole diameter: 22.5 mm
• Front panel dimensions (W x H): 29.7 x 29.7 mm
• Degree of protection (front): IP66, IP67, IP69K
• Series: Eaton M22
• Material (actuator): Plastic
• Operating temperature range: -25 to +70 °C
• Mechanical durability: > 1,000,000 operations
• Compatibility: Eaton M22-series contact blocks and LED elements
• Standards: IEC/EN 60947-5-1

Recommendations

For use with Eaton M22 contact blocks and LED elements to complete the switching function. Ensure correct panel cut-out and secure mounting.
