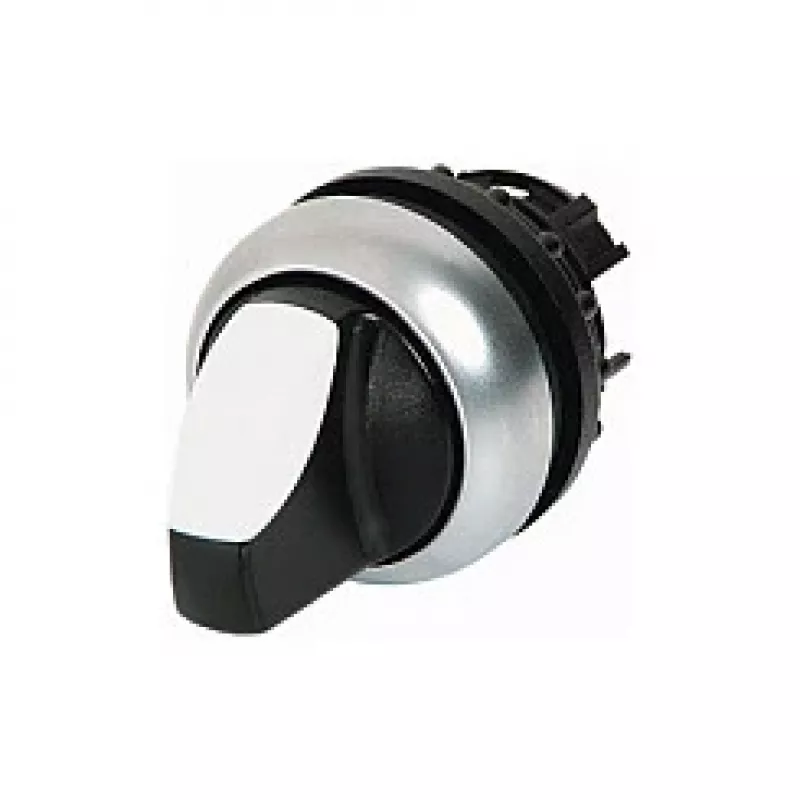

Eaton M22-WRK3 otočný spínač, 3-polohový, aretovaný, čierny, 22,5 mm

With over 500,000 mechanical and electrical operations, the Eaton M22-WRK3 selector switch actuator delivers exceptional longevity for demanding industrial control. This robust 3-position latching switch features a black knob and is part of the renowned RMQ-Titan series, offering front protection up to IP69K against water, dust, and high-pressure cleaning.

Overview

The Eaton M22-WRK3 is a high-quality selector switch actuator designed for front panel mounting in 22.5 mm holes. It provides three maintained positions with a switching angle of 2 x 45°, allowing clear and reliable control of machinery and processes. The actuator is non-illuminated and made from high-grade plastic, ensuring durability in harsh environments. It is compatible with Eaton M22 contact blocks (sold separately), enabling flexible configuration for various circuit functions.

What stands out

• Exceptional longevity: over 0.5 million mechanical and electrical operations.
• Superior ingress protection: IP66, IP67, and IP69K on the front face.
• Wide operating temperature range: -25°C to +70°C.
• Global approvals: UL, CSA, CCC, EAC, and DNV GL certified.
• Ergonomic black knob with clear 3-position latching action.

Technical details

• Product series: Eaton RMQ-Titan
• Actuator type: Selector switch
• Number of positions: 3
• Switching action: Latching (maintained)
• Actuator color: Black
• Mounting hole diameter: 22.5 mm
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Mechanical life: > 0.5 x 10^6 operations
• Electrical life: > 0.5 x 10^6 operations
• Standards compliance: IEC/EN 60947, VDE 0660
• Compatibility: Eaton M22 contact blocks
• Illumination: Non-illuminated
• Switching angle: 2 x 45°
• Front bezel material: Plastic
• Approvals: UL, CSA, CCC, EAC, DNV GL
• Actuator material: High-grade plastic
• Mounting type: Front panel mount

Our verdict

The Eaton M22-WRK3 combines rugged construction with precise control, making it an excellent choice for industrial applications where reliability and protection are paramount.
