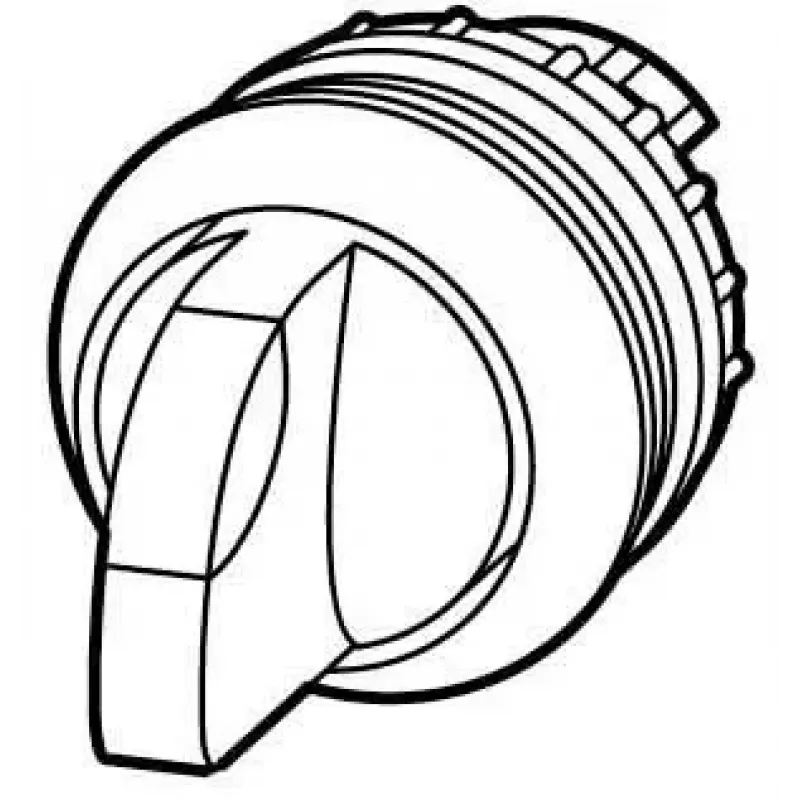

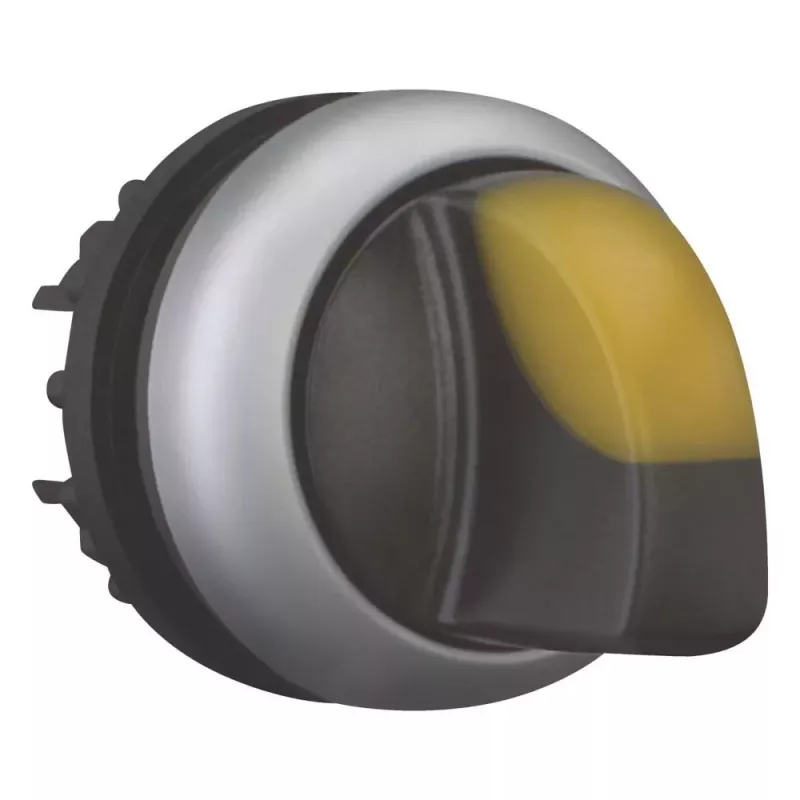

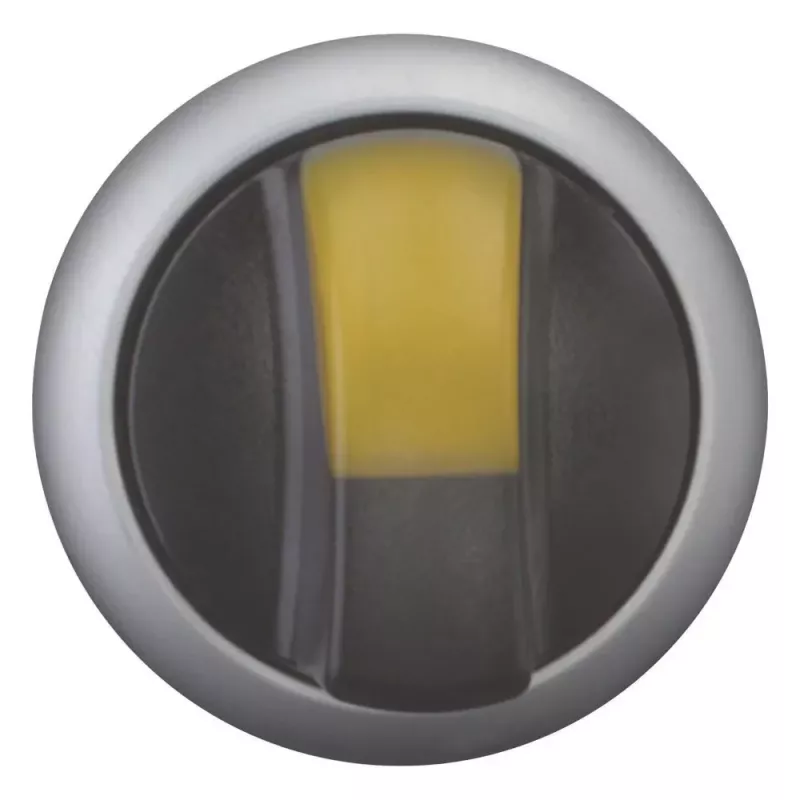

Eaton M22-WRLK-Y kľúčový voličový ovládač, 3 polohy, žltý 216829

When a standard pushbutton isn't secure enough, the Eaton M22-WRLK-Y key-operated selector switch actuator provides controlled access to critical machine functions. Its key removal in the center position prevents unauthorized switching, while the three maintained positions allow you to set distinct operating modes.

Who is it for

Panel builders and maintenance engineers who need a tamper-resistant selector switch for industrial control panels, especially where only authorized personnel should change machine states.

Main features

• Key-operated actuator with RONIS S1 key type
• Three maintained positions with 2 x 45° switching angle
• Key removable only in center (0) position
• Yellow actuator with black bezel for high visibility
• 22.5 mm mounting diameter, compatible with Eaton M22 series
• Front protection: IP66, IP67, IP69K
• Mechanical durability: > 0.5 x 10^6 operations

Specifications

• Product type: Selector switch actuator
• Series: Eaton Moeller M22
• Actuator type: Key-operated
• Number of positions: 3
• Switching action: Maintained (latching)
• Key removal position: Center (0)
• Actuator colour: Yellow
• Bezel colour: Black
• Mounting diameter: 22.5 mm
• Degree of protection (front): IP66, IP67, IP69K
• NEMA rating (front): NEMA 4X, 13
• Operating temperature: -25 to +70 °C
• Material (actuator/bezel): High-grade plastic
• Illumination: Non-illuminated
• Key type: RONIS S1
• Switching angle: 2 x 45°
• Mechanical durability: > 0.5 x 10^6 operations
• Front dimensions (W x H): 29.7 x 29.7 mm
• Standards compliance: IEC/EN 60947, UL, CSA

Tips

Pair this actuator with Eaton M22 contact blocks and mounting adapters for a complete control solution. Ensure the key is removed only in the center position to maintain security.
