Eaton M22-WS-MS5 kľúčový prepínač, 3 polohy, aretovaný, Ronis MS5, čierny 111792

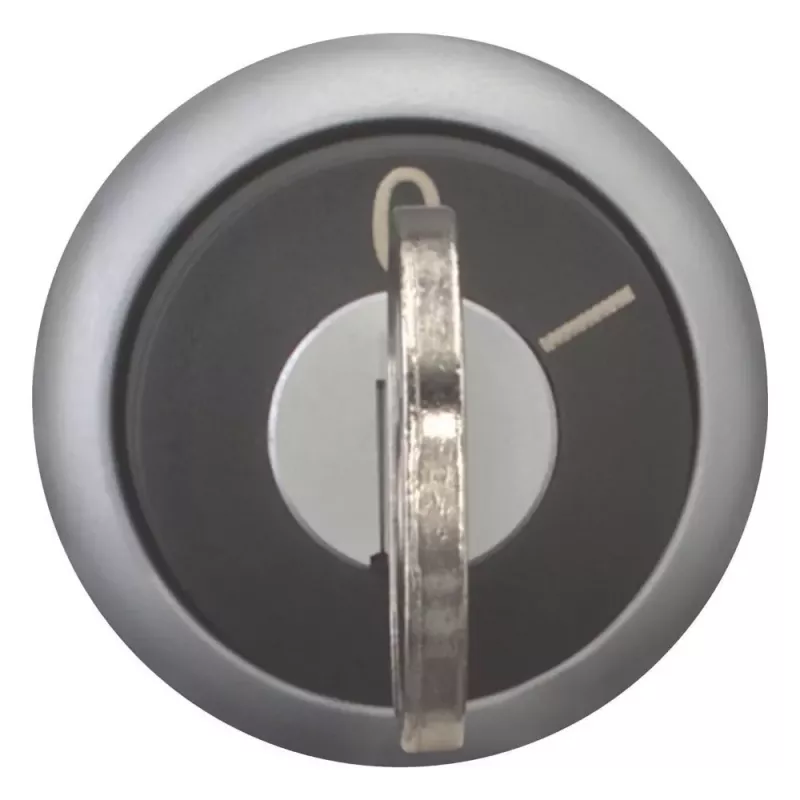

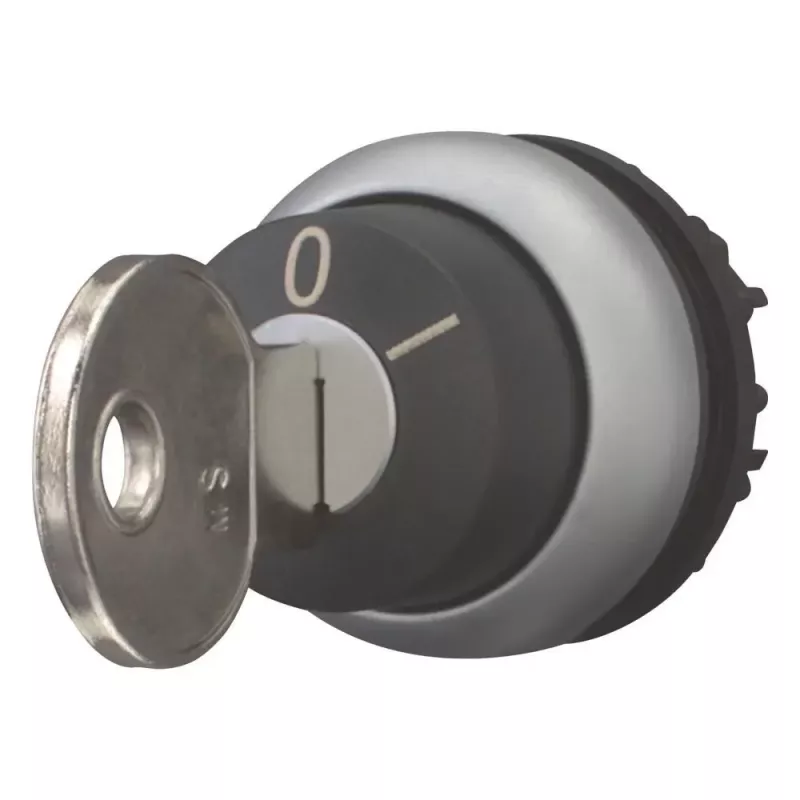

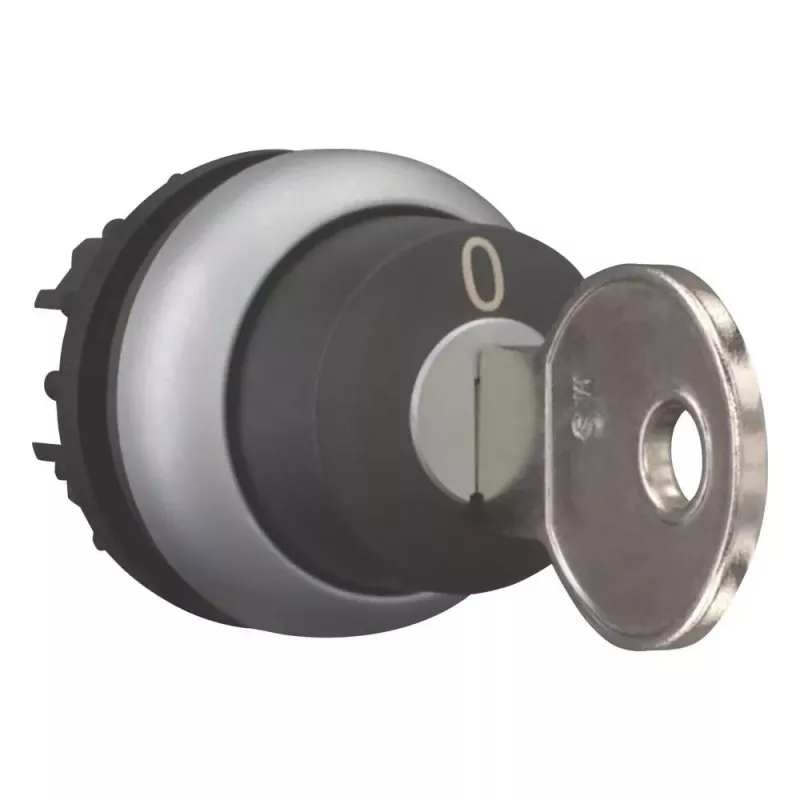

The Eaton M22-WS-MS5 key-operated selector switch offers three positions with a switching angle of 2 x 45°, providing reliable control in industrial environments. Its maintained actuator and Ronis MS5 key type ensure secure operation, with key removal possible in the center and right positions.

Overview

Part of the RMQ-Titan (M22) series, this selector switch features a 22.5 mm mounting diameter and a robust plastic bezel in black. It is designed for front panel mounting and delivers a mechanical durability of over 0.1 million operating cycles.

What stands out

• Three positions with maintained switching
• Key removal in center and right positions
• Supplied with two Ronis MS5 keys
• High front protection: IP66, IP67, IP69K
• Wide operating temperature range: -25°C to +70°C

Technical details

• Series: RMQ-Titan (M22)
• Mounting diameter: 22.5 mm
• Switching angle: 2 x 45°
• Actuator type: Maintained (latching)
• Key type: Ronis MS5
• Number of keys supplied: 2
• Bezel material: Plastic
• Bezel colour: Black
• Mechanical durability: > 0.1 million cycles
• Operating temperature: -25°C to +70°C
• Connection: Requires separate contact blocks (not included)

Our verdict

A robust and secure selector switch for demanding industrial applications, with excellent protection ratings and reliable key-operated control.
