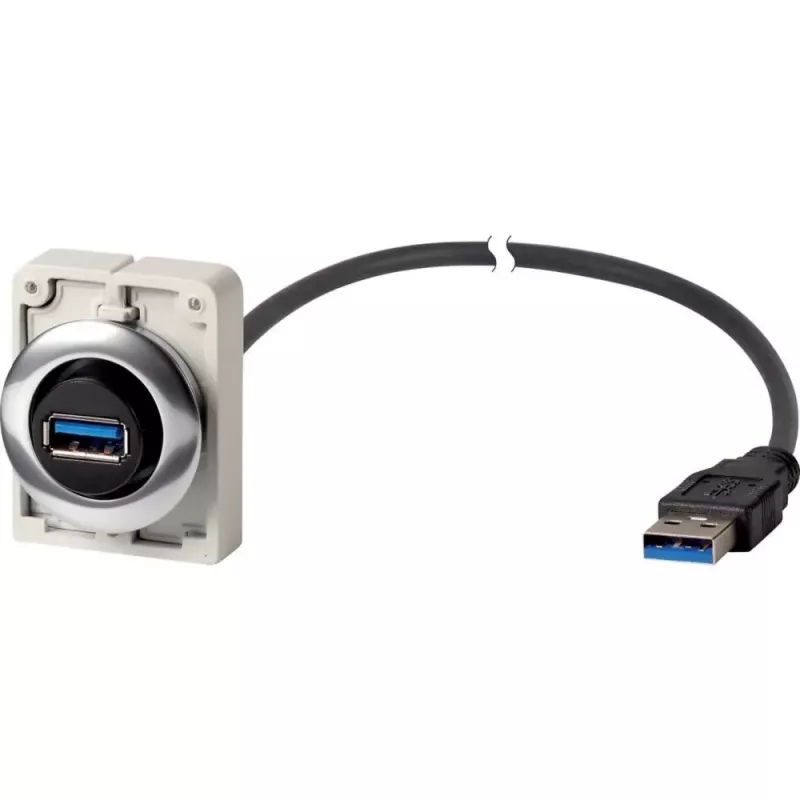

Eaton M30C-FUSB-60 vstavaná USB 3.0 Type-A zásuvka s 1,5 m káblom, kovový predný prstenec Y7-187084

Industrial control panels and machine housings often lack a convenient, robust USB port for data access or peripheral connection. The Eaton M30C-FUSB-60 solves this by providing a panel-mounted USB 3.0 Type A socket with a pre-assembled 1.5 m cable, ready to connect to internal systems without custom wiring.

Who is it for

This product is intended for panel builders, machine manufacturers, and industrial integrators who need a reliable USB interface on the outside of an enclosure while keeping the internal connection simple and secure.

Main features

• USB 3.0 (SuperSpeed) interface with data transfer rates up to 5 Gbps
• Panel connector: USB Type A female; cable connector: USB Type A male
• Pre-assembled 1.5 m cable with permanently attached connector
• Threaded M30 mounting with metal front ring for durability
• Backward compatible with USB 2.0 and USB 1.1 devices

Specifications

• Product type: Panel mount USB socket with cable
• USB standard: USB 3.0 (SuperSpeed USB)
• Data transfer rate: Up to 5 Gbps
• Panel connector type: USB Type A female
• Cable connector type: USB Type A male
• Cable length: 1.5 m
• Mounting method: Panel mount (threaded)
• Mounting thread size: M30
• Front ring material: Metal
• Cable configuration: Pre-assembled, permanently attached
• Backward compatibility: USB 2.0, USB 1.1
• Application environment: Industrial, control panels, machine building
• Manufacturer series: M30C

Tips

Ensure the panel cutout matches the M30 thread size for a secure fit. The metal front ring provides mechanical stability in demanding environments.
