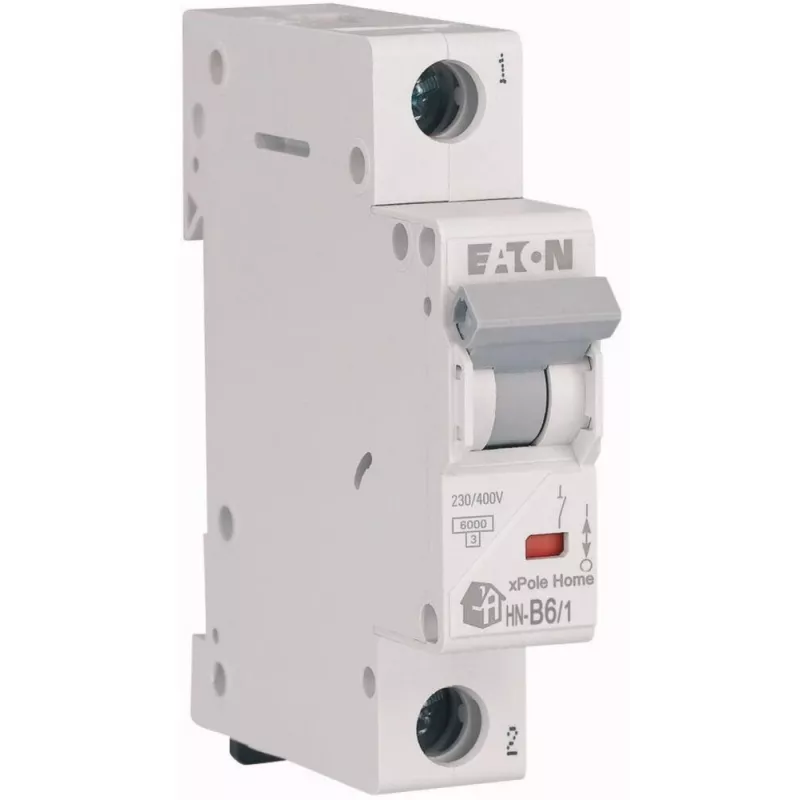

EATON MCB typ B 6A 1-pólový 6kA HN-B6/1

The EATON HN-B6/1 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial electrical installations. With a Type B tripping characteristic, it is ideal for protecting circuits with resistive or inductive loads where inrush currents are minimal. This 1-pole breaker offers a rated current of 6 A and a short-circuit breaking capacity of 6 kA, ensuring safety and compliance with IEC/EN 60898-1 standards.

Advantages

Compact 1-module design saves space on DIN rail; thermal-magnetic release provides both overload and short-circuit protection; energy limiting class 3 reduces stress on downstream equipment; screw terminals for secure and easy wiring.

Suitable for

• Lighting circuits
• Socket outlets
• Small appliance protection
• Residential and light commercial distribution boards

Key specifications

• Tripping Characteristic: Type B
• Rated Current (In): 6 A
• Number of Poles: 1-pole (1P)
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 1 Module (17.5 mm)
• Energy Limiting Class: 3
• Standard: IEC/EN 60898-1
• Terminal Capacity (Solid): 1-25 mm²
• Terminal Capacity (Flexible): 1-16 mm²
• Degree of Protection (Terminals): IP20
• Degree of Protection (Enclosure): IP40
• Operating Temperature Range: -25 to +50 °C
• Mechanical Life: 20,000 operations
• Electrical Life: 10,000 operations
• Connection Type: Screw terminals
• Release Type: Thermal-magnetic
• Pollution Degree: 2

Recommendations

For optimal performance, ensure the breaker is installed by a qualified electrician and used within its rated specifications. Pair with compatible distribution boards and accessories from Eaton.
