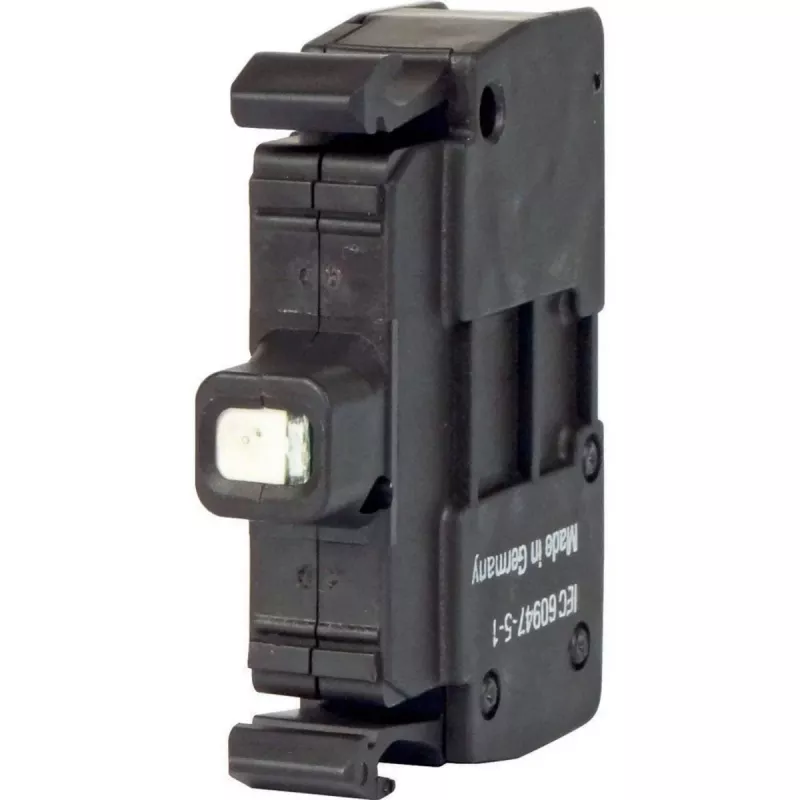

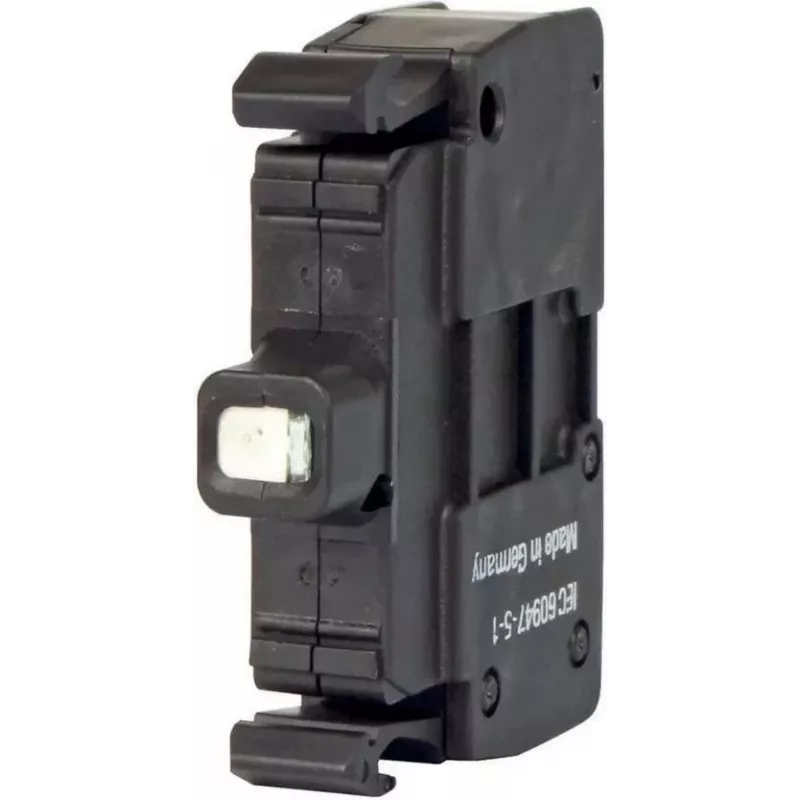

Eaton Moeller M22-CLED-B modrý LED prvok, predná montáž, 12-240 V AC/DC 218061

Control panel builders and machine operators use the Eaton Moeller M22-CLED-B blue LED element to add clear, long-life status indication to 22.5 mm pushbutton and indicator assemblies. The element plugs directly into the front of an M22 series holder, making it a straightforward choice for new installations or retrofits in industrial control circuits.

Key specifications

• LED colour: blue
• Rated operating voltage: 12-240 V AC/DC
• Mounting: front mounting for M22 series holders
• Connection: plug-in for M22 series lamp holders
• Front protection: IP66, IP67, IP69K when installed in appropriate M22 housing
• Operating temperature: -25 to +70 °C
• Lifespan: >100,000 hours
• Power consumption: max. 0.5 W

Why choose it

The M22-CLED-B offers a wide voltage range, so a single element can be used across many control systems without the need for separate voltage-specific parts. Its LED light source provides consistent blue illumination with low energy draw and a long service life, reducing maintenance calls and downtime.

Ideal use cases

• Status indication on control panels and machine enclosures
• Replacement for incandescent or older LED elements in Eaton M22 series
• New builds requiring reliable, high-visibility blue indicators

Good to know

The element is designed for use with Eaton Moeller M22 series holders and is not a standalone lamp. It meets IEC/EN 60947-5-1, UL 508, and CSA C22.2 No. 14 standards, ensuring compatibility with global industrial requirements.
