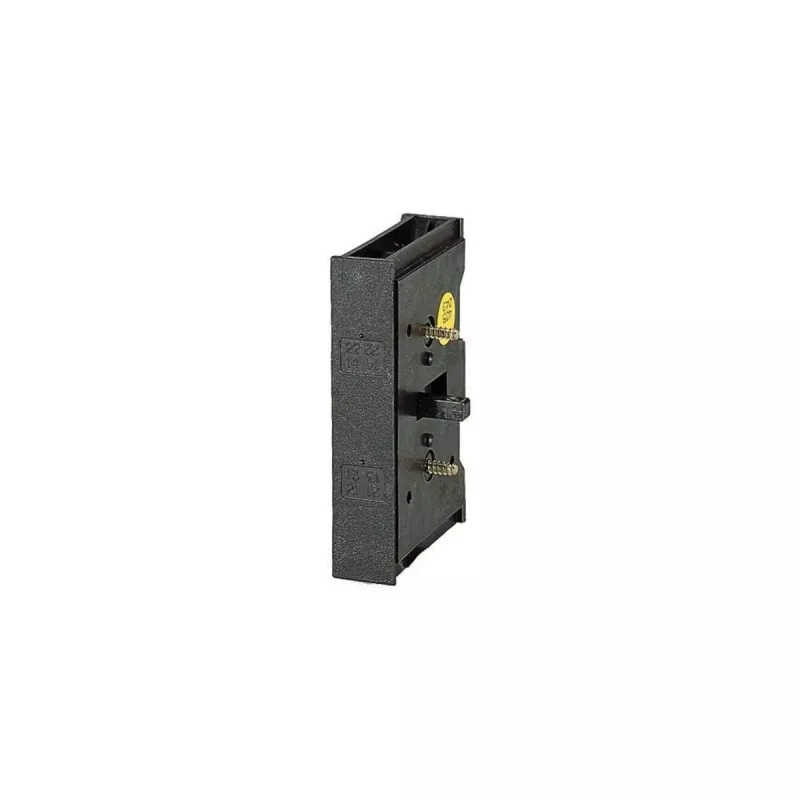

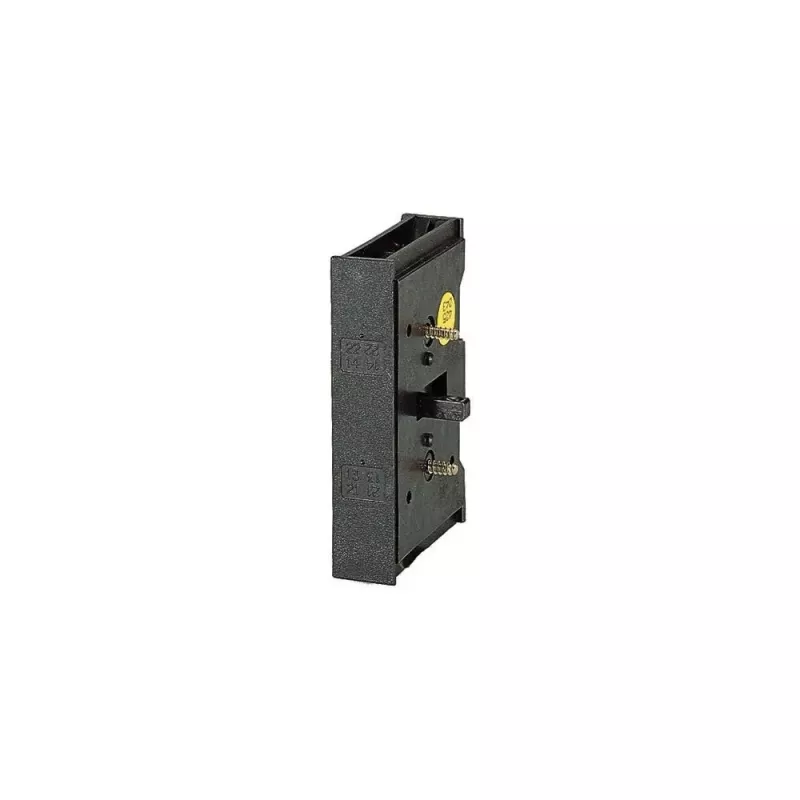

Eaton príslušenstvo pre nulový vodič pre 4-pólové hlavné vypínače série P1/P3 (N-P1E)

For reliable neutral connection in industrial power distribution, the Eaton Neutral Pole Accessory (N-P1E) integrates directly into P1 and P3 series 4-pole main switches. Rated to match the operational current and voltage of the host switch, this accessory ensures compliance with IEC/EN 60947 while maintaining a compact footprint.

Overview

This neutral pole accessory is engineered for Eaton's P1 and P3 series main switches and disconnectors. It provides a dedicated neutral connection point within the switch housing, enabling safe and code-compliant operation in three-phase systems with neutral. The accessory is designed for internal mounting, with screw terminals for secure wiring. Constructed from high-grade plastic and conductive metal, it offers durability and reliable electrical performance in industrial environments.

What stands out

• Precision fit for Eaton P1/P3 series 4-pole switches
• Provides a dedicated neutral pole for complete circuit isolation
• Robust construction with high-grade materials
• Complies with IEC/EN 60947 safety standards
• Wide operating temperature range from -25°C to +50°C

Technical details

• Accessory type: Neutral pole
• Compatibility: Eaton P1 and P3 series main switches/disconnectors
• Switch pole configuration: 4-pole
• Number of poles (accessory): 1 (neutral)
• Mounting position: Internal to switch housing
• Connection type: Screw terminals
• Rated operational current: Matches compatible P1/P3 switch
• Rated operational voltage: Matches compatible P1/P3 switch
• Standards: IEC/EN 60947
• Housing material: High-grade plastic
• Product colour: Grey/Black
• Degree of protection: IP00 (when not installed in switch)
• Operating temperature: -25°C to +50°C
• Product series: P1/P3
• Application: Industrial control, power distribution, machinery

Our verdict

An essential component for completing 4-pole isolation in Eaton P1/P3 switches, this neutral pole accessory delivers dependable performance and straightforward installation. Its adherence to international standards and robust design make it a trustworthy choice for demanding industrial applications.
