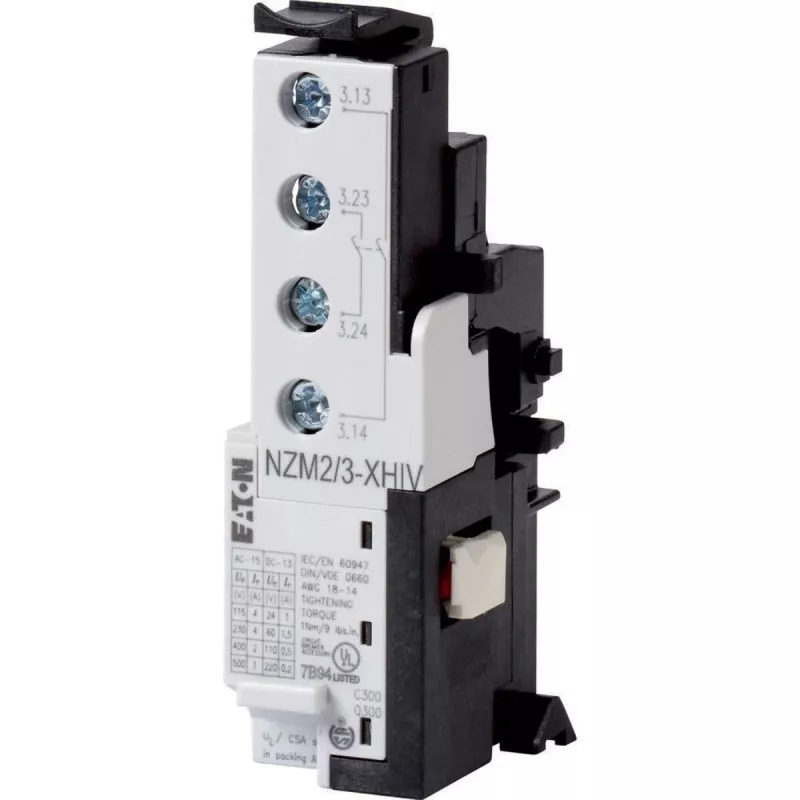

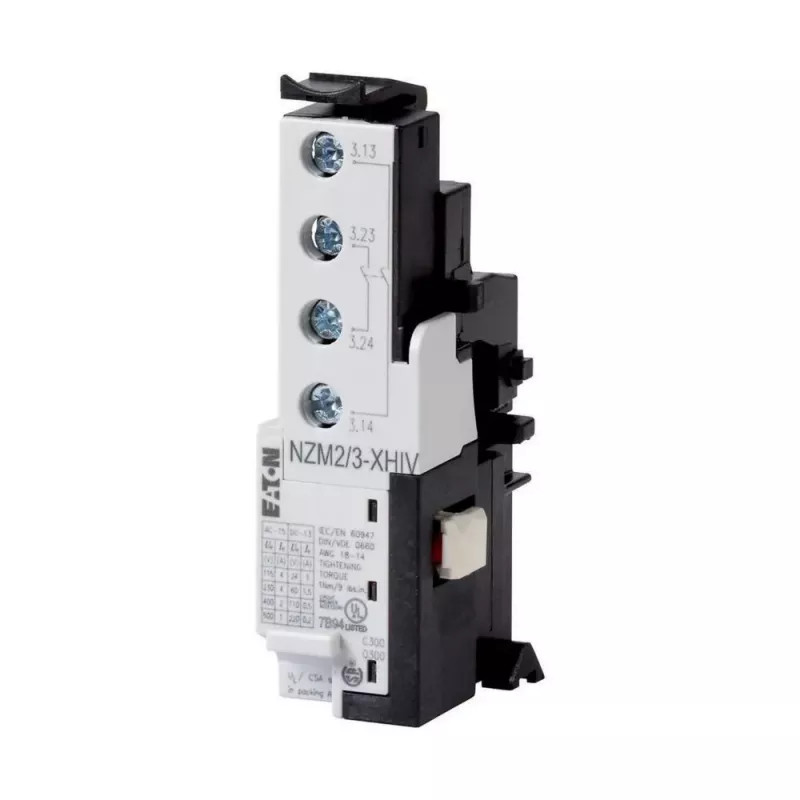

Eaton NZM2/3-XHIV pomocný kontakt (259430)

Circuit breaker status indication is often missing in compact installations. The Eaton NZM2/3-XHIV auxiliary contact solves this by providing reliable signalling for NZM2 and NZM3 circuit breakers. It offers one normally open and one normally closed contact, enabling remote monitoring of breaker position.

Who is it for

Panel builders and maintenance technicians who need to integrate breaker status into control systems. Suitable for industrial control panels using Eaton NZM2 or NZM3 circuit breakers.

Main features

• 1 NO + 1 NC contact configuration
• Internal side mounting on NZM2/NZM3 breakers
• Screw terminals for secure wiring
• Rated operational voltage up to 690 V AC
• Compact design fits within breaker housing

Specifications

• Product type: Auxiliary contact
• Compatibility: Eaton NZM2, NZM3 circuit breakers
• Contact configuration: 1 NO + 1 NC
• Number of contacts: 2
• Mounting type: Internal, side-mounted
• Rated operational voltage AC: up to 690 V AC
• Rated operational voltage DC: up to 220 V DC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (Ie): max. 10 A
• Connection type: Screw terminals
• Terminal capacity: 1 x (0.75 - 2.5) mm² solid/flexible
• Standards compliance: IEC/EN 60947-5-1
• Degree of protection (terminals): IP20
• Series: NZM
• Function: Signalling/indication of circuit breaker status

Tips

Verify breaker compatibility before installation. The auxiliary contact mounts internally on the side of NZM2 or NZM3 breakers. Use appropriate screwdriver for terminal connections.
