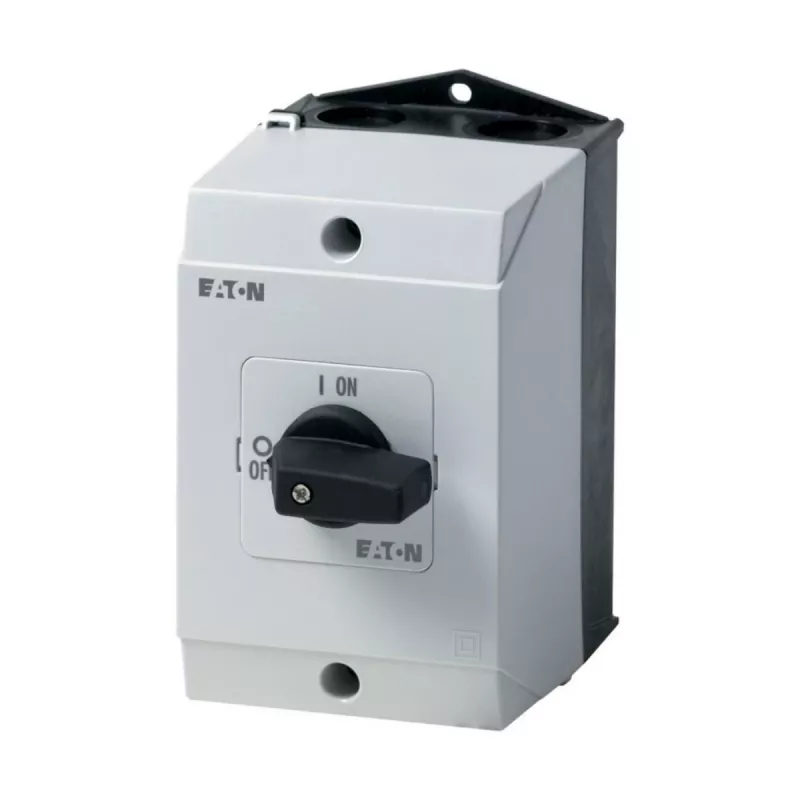

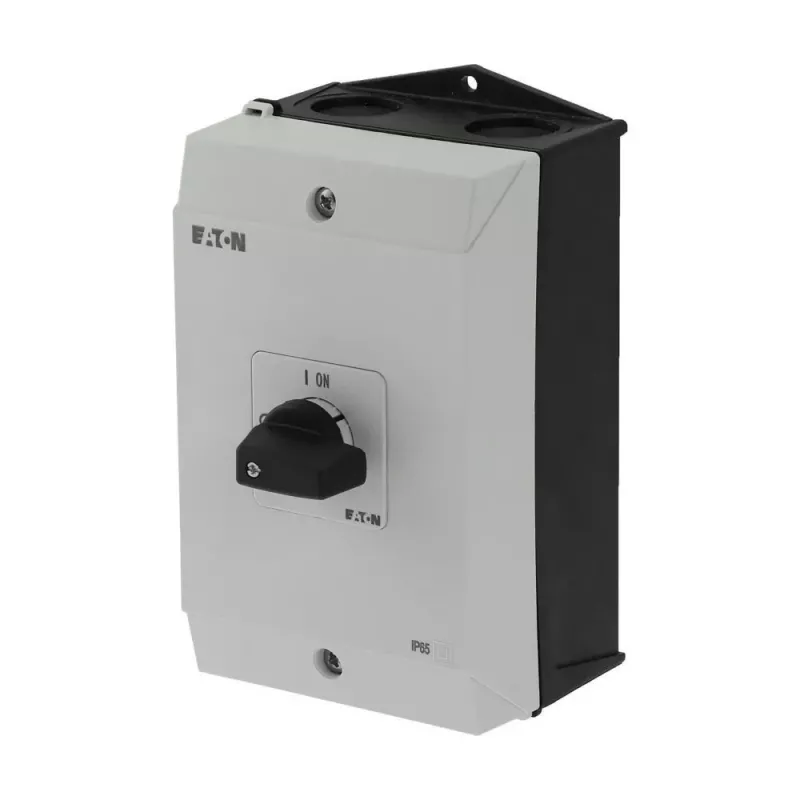

Eaton P1-25/I2 3-pólový hlavný vypínač 25 A, čierno-biela páčka, montáž na predný panel 207299

The Eaton P1-25/I2 stands out with its robust 3-pole design and 25 A rating, making it a dependable main switch for industrial control panels. Its black/white toggle lever provides clear ON-OFF indication, while the IP65 front protection ensures reliable operation in demanding environments.

Highlights

• 3-pole main switch with 25 A uninterrupted current rating
• Toggle lever with black/white colour for clear status indication
• Front panel mounting with IP65 front protection
• Screw terminals for secure wiring
• Rated operational voltage up to 690 V AC

In daily use

Designed for front panel mounting, the P1-25/I2 integrates seamlessly into control cabinets and machine enclosures. Its toggle lever allows quick manual switching, and the screw terminals ensure a firm connection. With a wide operating temperature range of -25 to +50 °C, it performs consistently in various industrial settings.

Full specifications

• Product type: Main switch / disconnect switch
• Number of poles: 3
• Switch function: ON-OFF (I-0)
• Rated uninterrupted current (Iu): 25 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 0.5 kA (1 s)
• Rated conditional short-circuit current (Iq): 50 kA
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Front panel mounting
• Actuator type: Toggle lever
• Actuator colour: Black/White
• Terminal type: Screw terminals
• Standards: IEC/EN 60947
• Rated power (AC-23A, 400 V): 7.5 kW
• Rated power (AC-3, 400 V): 5.5 kW
• Ambient operating temperature: -25 to +50 °C

Final note

Built to IEC/EN 60947, the P1-25/I2 delivers reliable switching for industrial applications, with clear visual indication and robust construction.
