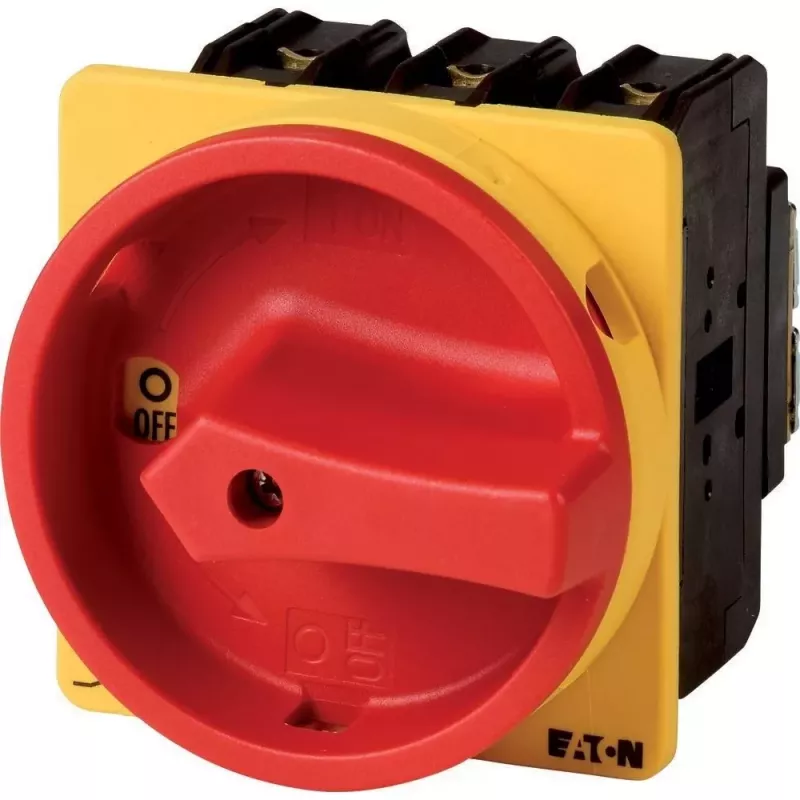

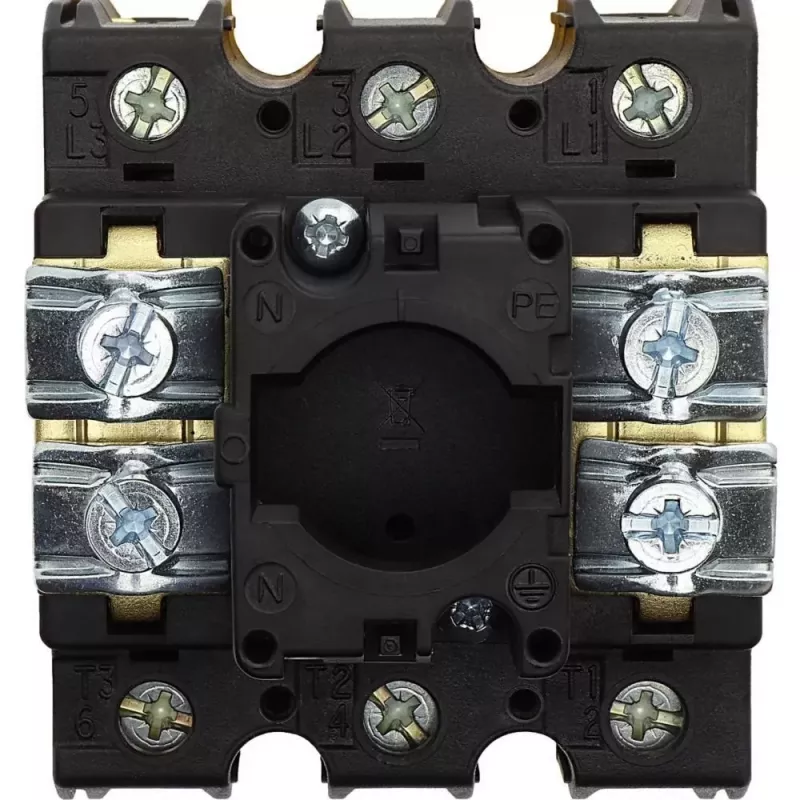

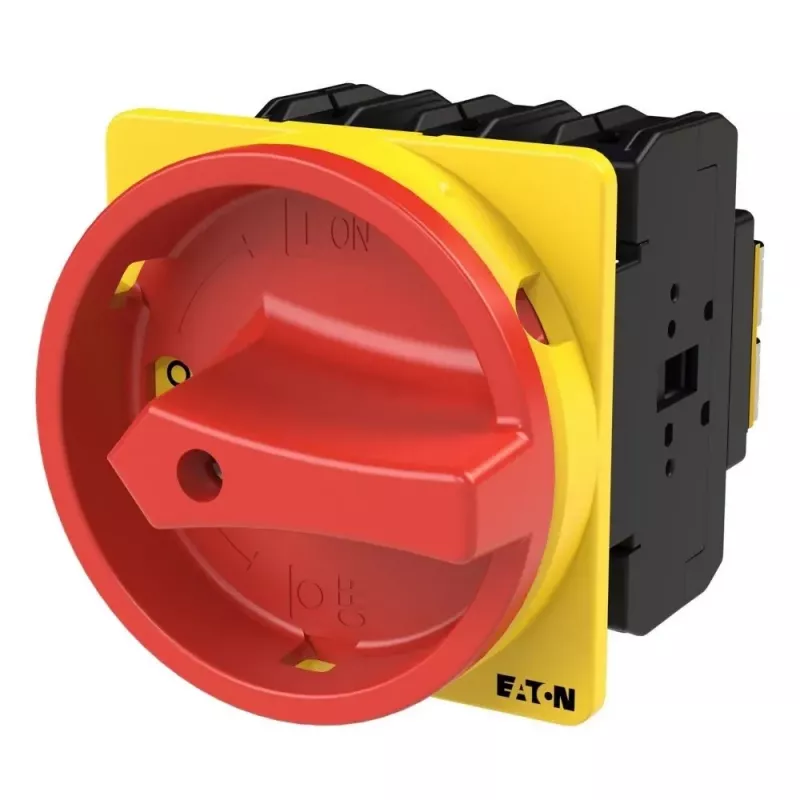

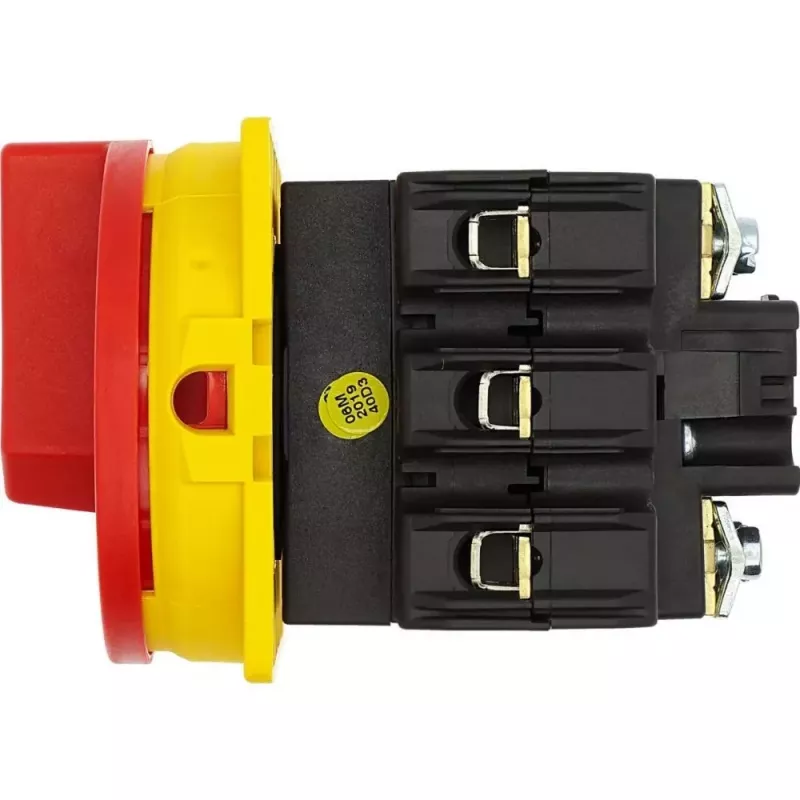

Eaton P3-100/EA/SVB 100 A 3-pólový uzamykateľný hlavný vypínač, červená/žltá

This Eaton P3 series main switch delivers reliable manual isolation for industrial control circuits, rated for 100 A operational current and lockable in the OFF position for safe maintenance. Its robust design ensures dependable switching under load.

Advantages

The switch features a clear red handle on a yellow front plate for high visibility and intuitive operation. Lockability in the OFF position prevents accidental re-energization, enhancing workplace safety. With IP65 front protection, it withstands harsh environments.

Suitable for

• Industrial machinery and control panels
• Motor disconnection and isolation
• Applications requiring secure lockout/tagout procedures

Key specifications

• Rated operational current: 100 A
• Number of poles: 3
• Switching angle: 90°
• Mounting: flush
• Front protection: IP65
• Rated operational voltage: 690 V AC

Recommendations

For reliable and safe isolation in demanding industrial settings, the Eaton P3-100/EA/SVB is an excellent choice. Ensure proper enclosure and wiring per local regulations.
