Eaton P5-160/EA/SVB 3-pólový hlavný vypínač 160 A, 690 V AC, IP65, červený rukoväť 280922

With a 160 A rated operational current and 690 V AC rated operational voltage, this Eaton P5-160/EA/SVB main switch delivers robust performance for demanding electrical installations. The 3-pole ON/OFF switch is enclosed in an insulated surface-mount housing with IP65 front protection, making it suitable for harsh environments.

Overview

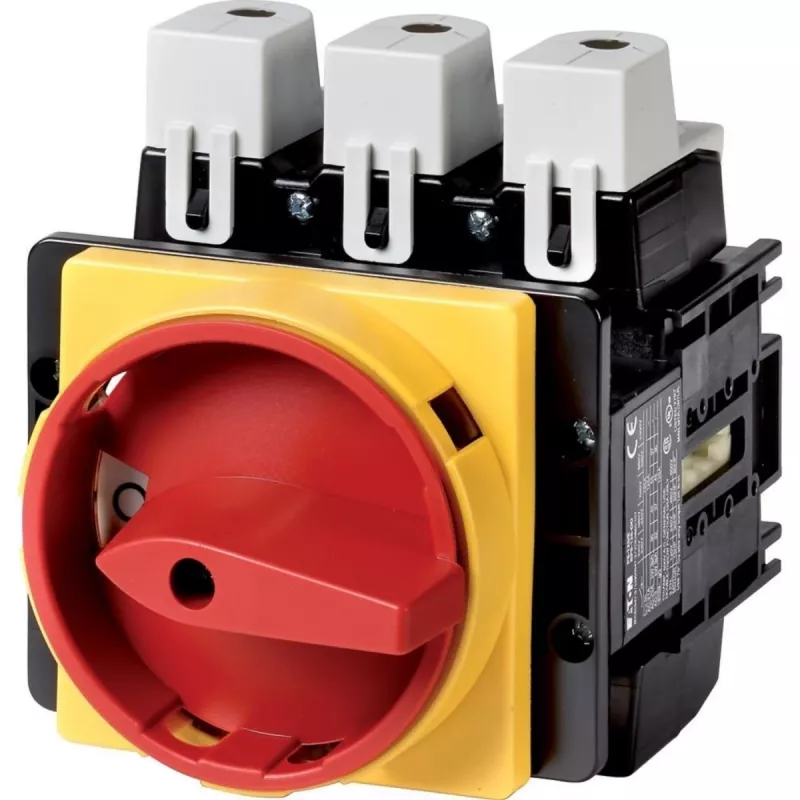

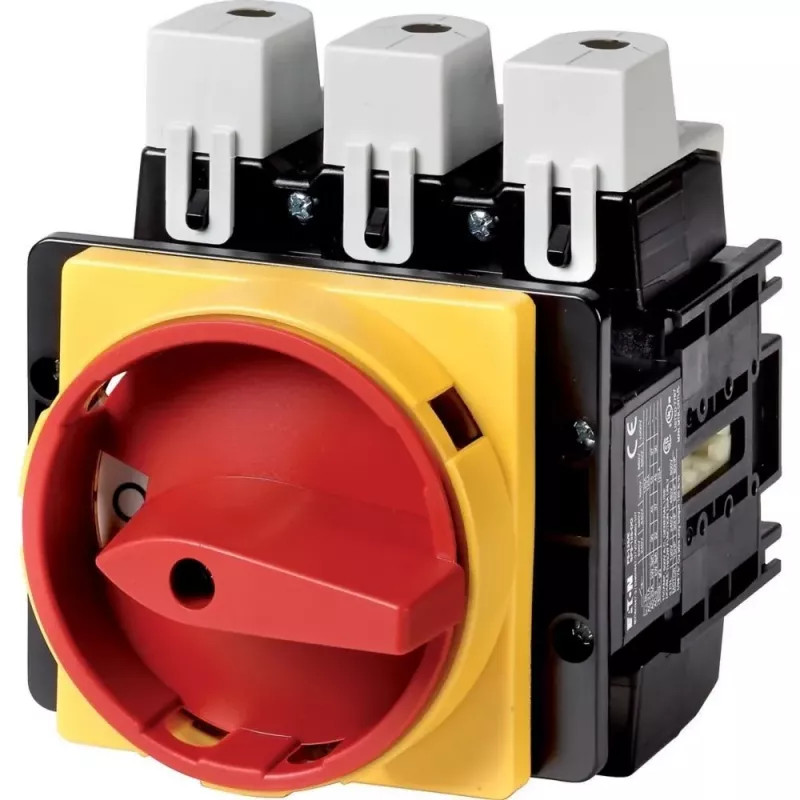

The Eaton P5-160/EA/SVB is a 3-pole main switch with a rated operational current of 160 A and rated operational voltage of 690 V AC. It features a red handle on a yellow front plate, providing clear visual status indication. The switch is lockable in the OFF position for safety during maintenance.

What stands out

• High current capacity: 160 A at 690 V AC
• Rated power of 75 kW at 400 V AC (AC-23A)
• IP65 front protection for dust and water jets
• Padlockable in OFF position
• Screw terminals for secure connections

Technical details

• Switch function: ON/OFF (0-1)
• Number of poles: 3
• Rated operational current (Ie): 160 A
• Rated operational voltage (Ue): 690 V AC
• Rated power (AC-23A, 400V): 75 kW
• Mounting type: Surface mounting (enclosed)
• Degree of protection (front): IP65
• Handle colour: Red
• Front plate colour: Yellow
• Lockable: Yes, in 0 (OFF) position
• Connection type: Screw terminals
• Standards: IEC/EN 60947-3
• Ambient operating temperature: -25 to +50 °C
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit withstand current (Icw): 3.2 kA (1s)
• Housing material: Insulated enclosure
• Switching angle: 90°

Our verdict

A reliable and robust main switch for industrial and commercial applications, offering high current handling, clear status indication, and safety lockout in a compact enclosed design.
