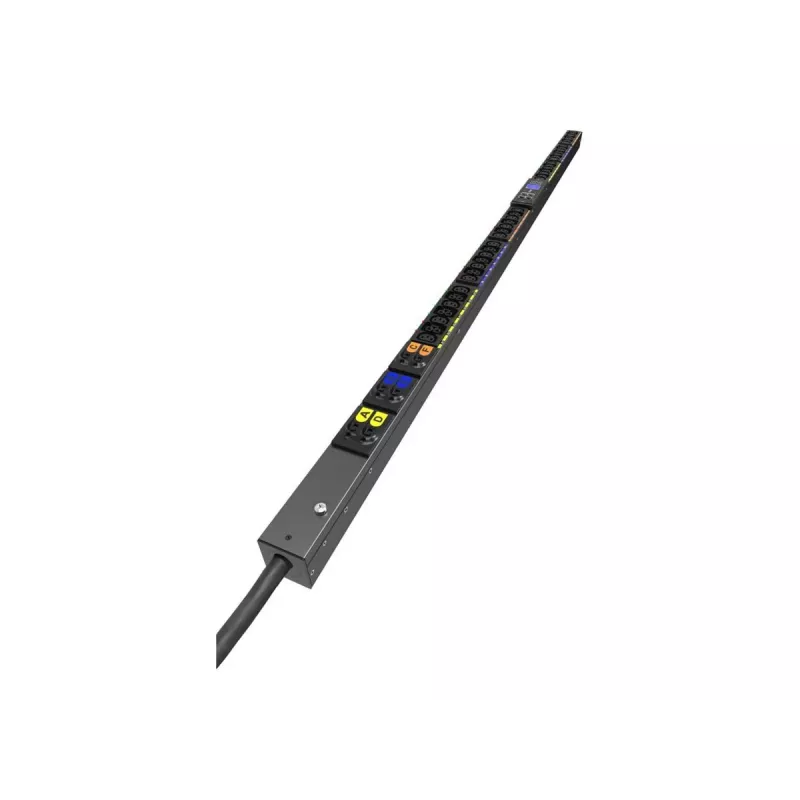

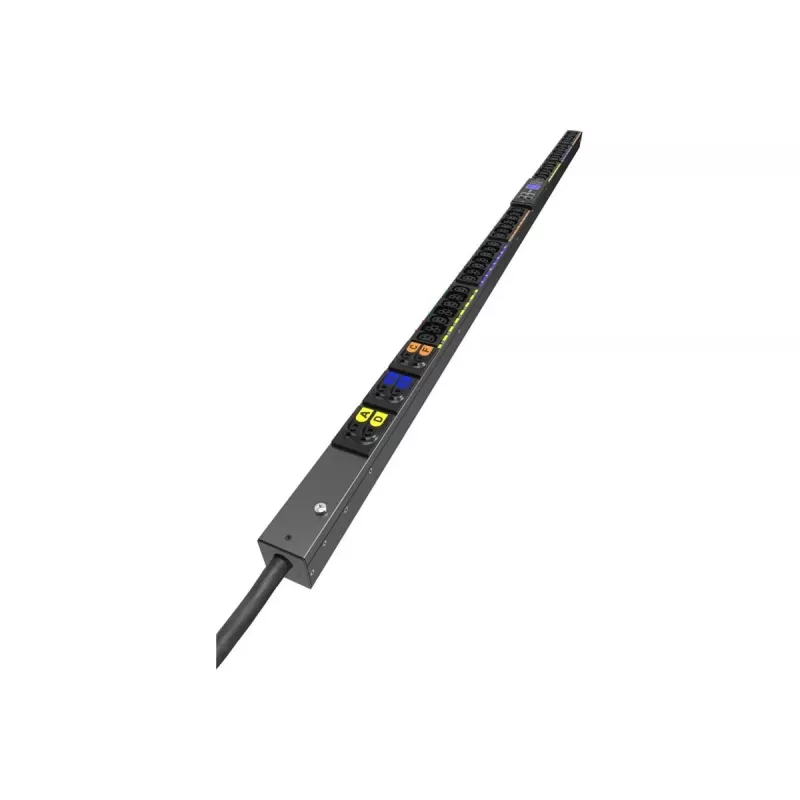

EATON PDU G4 MI 0U 309 63A 1P 24xC13,18xC39 Managed Input PDU

The EATON PDU G4 MI 0U 309 63A 1P 24xC13,18xC39 is a high-performance managed input PDU designed for data centers and server rooms requiring reliable power distribution and monitoring. With a 63A input and 42 outlets (24 C13 + 18 C19), this 0U vertical rackmount unit delivers up to 14.5 kVA at 200-240V. It features input-level metering for current, voltage, power, energy, and power factor, plus remote management via Ethernet and serial interfaces.

Advantages

This PDU offers advanced power monitoring and control, enabling efficient capacity planning and energy optimization. The tool-less mounting and universal brackets simplify installation in any 0U vertical rack space. Firmware upgradeable via network ensures long-term compatibility and security.

Suitable for

• Data centers requiring high-density power distribution
• Server rooms with 1-phase 63A input
• IT environments needing remote power monitoring and management

Key specifications

• Input: IEC 60309 63A 1P (2P+E), 200-240V AC, 63A, 1-phase
• Output: 24 x IEC C13 + 18 x IEC C19, 14.5 kVA
• Form Factor: 0U Vertical Rackmount
• Management: Ethernet (RJ-45), Serial (RS-232), SNMP, HTTP/HTTPS, SSH, Telnet, Modbus TCP, SMTP, NTP
• Display: LCD
• Metering: Input level (current, voltage, power, energy, power factor)
• Operating Temperature: 0°C to 60°C
• Humidity: 5% to 95% non-condensing
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with Eaton's power management software and ensure proper ventilation. The 3-meter power cord provides flexibility in rack placement.
