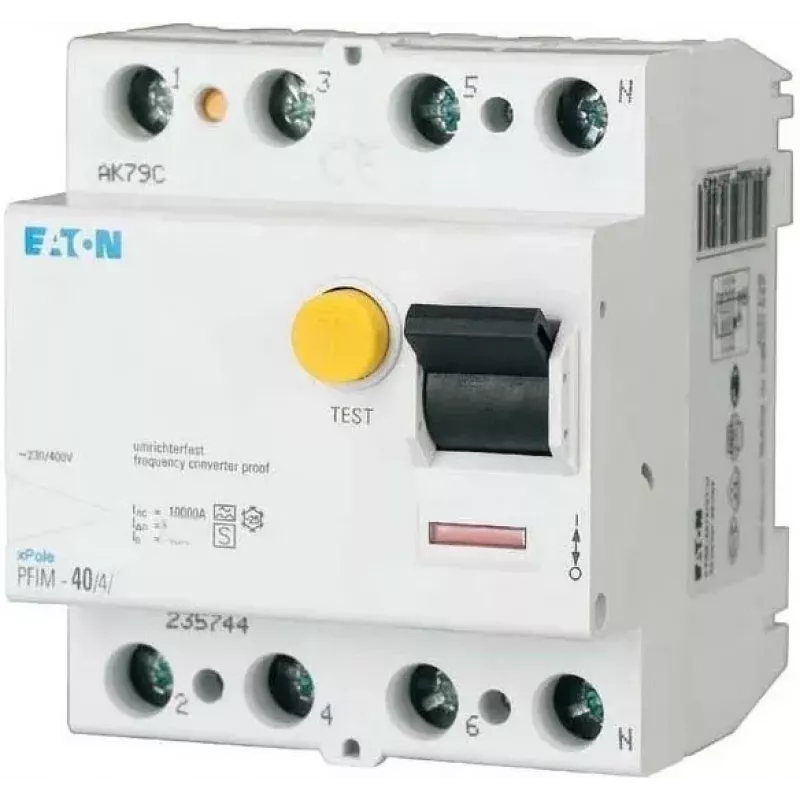

EATON PFIM-40/4/003-G/F prúdový chránič 40A 4-pólový 30mA Typ F/G 187456

Residual current circuit breaker (RCCB) with surge current proof, short-time delayed tripping for frequency converter applications. The PFIM-40/4/003-G/F protects against residual currents of 30 mA in 4-pole networks up to 40 A, making it suitable for industrial and commercial power distribution where frequency converters or other equipment with high inrush currents are used.

Advantages

Type F/G characteristic ensures reliable operation even with mixed frequencies and smooth DC residual currents up to 10 mA. Surge current proof up to 3 kA prevents nuisance tripping. Short-time delay provides selectivity with downstream devices.

Suitable for

• Three-phase circuits with frequency converters
• Industrial control panels and machine power supplies
• Distribution boards requiring selective residual current protection

Key specifications

• Rated current: 40 A
• Number of poles: 4
• Rated residual current: 30 mA
• Residual current type: F/G
• Rated voltage: 230/400 V AC
• Mounting: DIN rail
• Module width: 4 TE (70 mm)
• Rated conditional short-circuit current: 10 kA
• Surge current withstand: 3 kA
• Terminal capacity: 1.5 - 35 mm²
• Operating temperature: -25 to +40 °C

Recommendations

For use in industrial environments with frequency converters, ensure proper coordination with upstream overcurrent protection. Verify terminal torque settings during installation.
