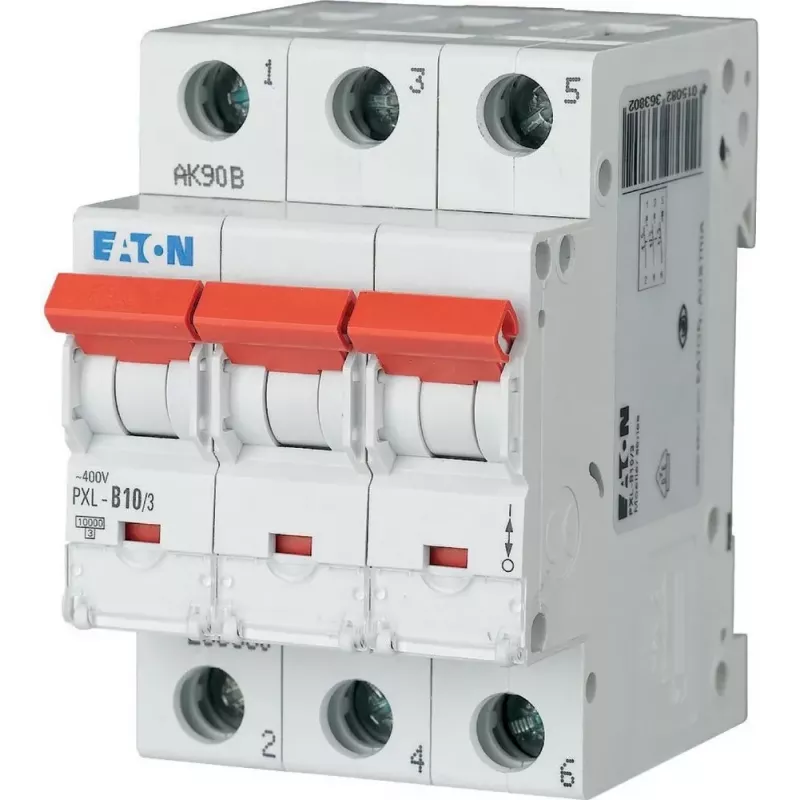

EATON PXL-B10/3 istič 10 A 3-pólový charakteristika B

In commercial and industrial electrical distribution boards, the EATON PXL-B10/3 miniature circuit breaker protects three-phase circuits against overload and short-circuit currents. Electricians and panel builders install this 3-pole MCB on DIN rails to safeguard cables and connected equipment in lighting, heating, and motor control applications.

Key specifications

• Rated current: 10 A
• Number of poles: 3
• Tripping characteristic: B (magnetic trip 3–5 × In)
• Rated voltage: 230/400 V AC
• Breaking capacity: 10 kA according to IEC/EN 60898-1
• Frequency: 50/60 Hz
• Mounting: DIN rail (35 mm)
• Width: 3 modules (52.5 mm)
• Degree of protection: IP20 (terminals), IP40 (front)
• Terminal capacity: 1–25 mm² solid, 1–16 mm² flexible
• Operating temperature: -25 °C to +75 °C
• Standards: IEC/EN 60898-1

Why choose it

The PXL-B10/3 combines reliable protection with compact dimensions. Its B characteristic ensures fast tripping on short circuits while avoiding nuisance trips from inrush currents typical of lighting and resistive loads. With a 10 kA breaking capacity, it handles high fault currents safely. The screw terminals accept a wide range of conductor sizes, simplifying installation. The device is designed for long service life: 10,000 electrical and 20,000 mechanical operating cycles.

Ideal use cases

• Protection of three-phase socket outlets and lighting circuits in commercial buildings
• Control circuits and small motors in industrial panels
• Distribution boards in workshops, offices, and retail spaces
• Retrofit projects where a reliable DIN-rail MCB is required

Good to know

The PXL-B10/3 is part of Eaton's xPole series, known for consistent quality and compliance with international standards. It is suitable for use in ambient temperatures up to 75 °C, though derating may apply at higher temperatures. The device has an energy limiting class of 3, reducing let-through energy and protecting downstream equipment. Always verify local regulations and coordination with upstream protective devices.
