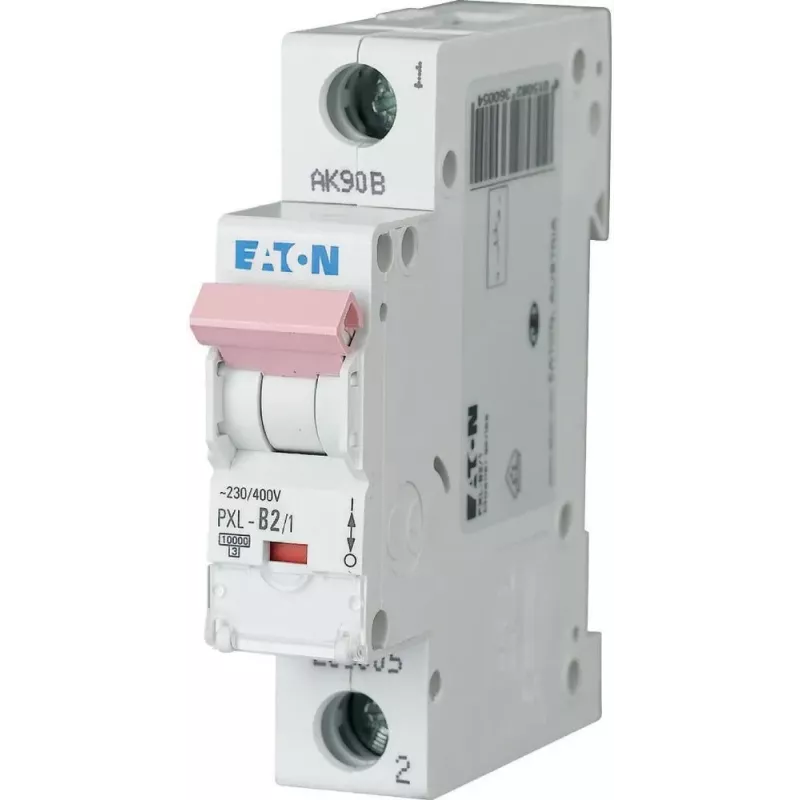

Eaton PXL-B2/1 istič typ B, 1-pólový, 2 A, 10 kA, DIN lišta 236005

Miniature circuit breaker (MCB) with 1-pole protection and a rated current of 2 A, engineered for reliable overcurrent and short-circuit interruption in residential and commercial electrical installations.

Advantages

Type B tripping characteristic ensures fast response to overloads and short circuits, protecting cables and equipment. Compact 1-module width (17.5 mm) saves space on DIN rails. High switching capacity of 10 kA according to IEC/EN 60898-1.

Suitable for

• Protection of lighting and socket circuits in homes and offices
• Control circuits and small loads in industrial panels
• DIN rail mounting in distribution boards

Key specifications

• Rated current: 2 A
• Tripping characteristic: Type B
• Number of poles: 1
• Rated voltage: 230/400 V AC
• Rated switching capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Module width: 1 (17.5 mm)
• Terminal type: screw terminals
• Connection capacity: 1-25 mm²
• Energy limiting class: 3
• Operating temperature: -25 to +75 °C

Recommendations

For use in distribution boards, verify that the short-circuit current at the installation point does not exceed 10 kA. Ensure proper torque on screw terminals when connecting conductors.
